LNA
4~9GHz, Gain22dB, Noise figure1.5dB, P-1dB13dBm, OIP325dBm, dB
- DLNA8-4-9G-3472
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Low noise, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 4 | ~ | 9 | GHz |
| Gain | 22 | dB | ||
| Gain flatness | ±0.5 | dB | ||
| Noise figure | 1.5 | dB | ||
| VSWR | 1.6 | 1.8 | ||
| P-1dB | 10 | 13 | dBm | |
| OIP3 | 25 | dBm | ||
| Reverse isolation | 35 | dB |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 100mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain | +25℃ 噪声dB | 1dB功率dBm | 饱和功率dBm |
| 2 | 3.54 | 11.58 | 12.65 | 3.58 | 2.98 | 4.94 |
| 2.64 | 1.52 | 4.15 | 20.98 | 2.08 | 5.92 | 7.09 |
| 3.29 | 1.13 | 1.5 | 23.97 | 1.65 | 10.74 | 11.99 |
| 3.93 | 1.28 | 1.26 | 24.08 | 1.2 | 14.36 | 15.31 |
| 4.57 | 1.43 | 1.4 | 23.91 | 1.29 | 14.36 | 15.21 |
| 5.21 | 1.44 | 1.34 | 23.94 | 1.18 | 14.62 | 15.23 |
| 5.86 | 1.31 | 1.17 | 24.01 | 1.21 | 14.75 | 15.39 |
| 6.5 | 1.15 | 1.16 | 24 | 1.18 | 14.99 | 15.62 |
| 7.14 | 1.17 | 1.35 | 23.81 | 1.19 | 14.02 | 15.03 |
| 7.79 | 1.23 | 1.51 | 23.67 | 1.29 | 15.16 | 16.07 |
| 8.43 | 1.09 | 1.56 | 23.66 | 1.37 | 14.98 | 16.39 |
| 9.07 | 1.23 | 1.57 | 23.59 | 1.45 | 15.01 | 17.82 |
| 9.71 | 2.06 | 1.78 | 22.73 | 1.84 | 14.69 | 18.48 |
| 10.36 | 4.1 | 2.61 | 20.03 | 1.9 | 14.73 | 17.52 |
| 11 | 6.68 | 4.38 | 17.35 | 2.38 | 14.67 | 16.9 |

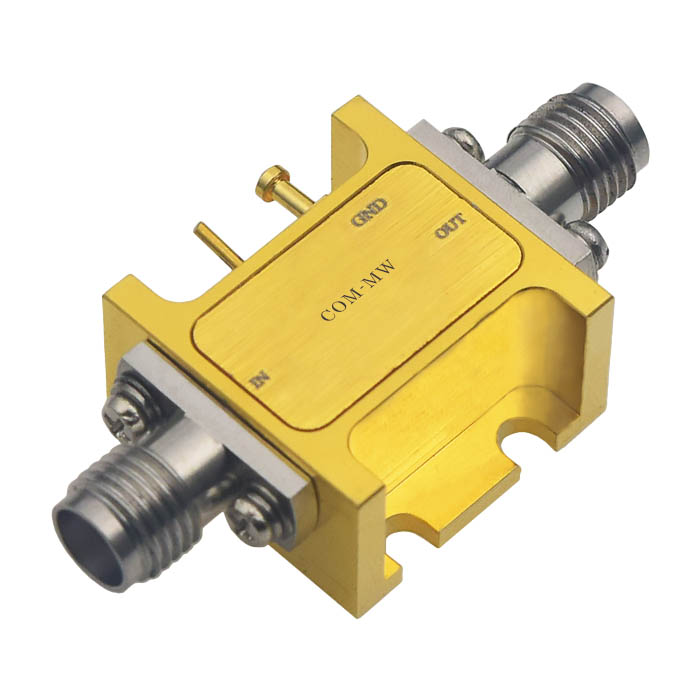

Reference picture

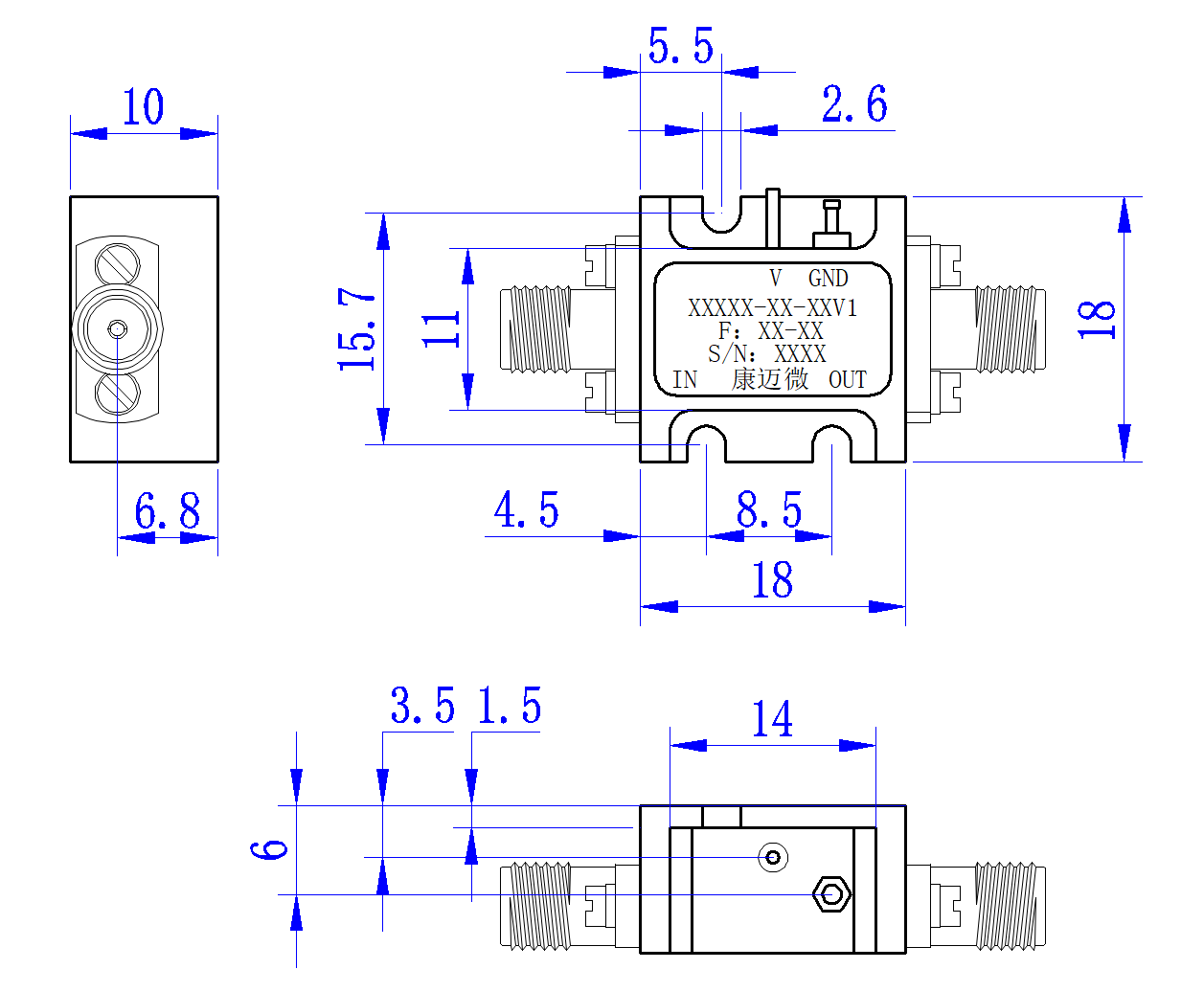

Configuration(mm)

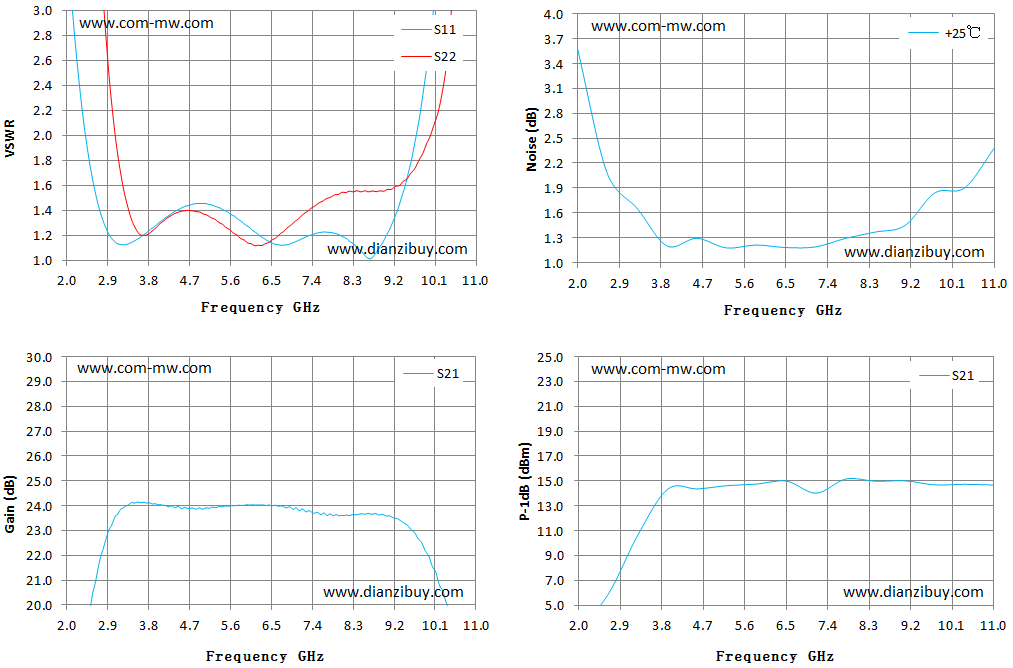

Typical test curve
