LNA
2200~2700MHz, Gain35dB, Noise Temp.55k, P-1dB10dBm, SMA
- DLNA8-2.2-2.7G-2077
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2200 | ~ | 2700 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise Temp. | 55 | k | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Work Temp. | -30~+70℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain dB | Noise Temp. | S21 1dB power |
| 1.5 | 1.16 | 1.66 | 37.26 | 56.72 | 14.8 |
| 1.71 | 1.14 | 1.36 | 38 | 51.82 | 14.7 |
| 1.93 | 1.17 | 1.24 | 38.27 | 48.7 | 14.4 |
| 2.14 | 1.2 | 1.36 | 38.32 | 46.58 | 14.3 |
| 2.36 | 1.23 | 1.45 | 38.19 | 50.3 | 14.6 |
| 2.57 | 1.24 | 1.38 | 38.21 | 53.86 | 14.3 |
| 2.79 | 1.24 | 1.23 | 38.07 | 53.11 | 14 |
| 3 | 1.24 | 1.11 | 37.89 | 46.58 | 14.2 |
| 3.21 | 1.25 | 1.24 | 37.6 | 41.3 | 14 |
| 3.43 | 1.24 | 1.41 | 37.05 | 42.5 | 13.8 |
| 3.64 | 1.21 | 1.49 | 36.58 | 47.06 | 12.7 |
| 3.86 | 1.2 | 1.44 | 36.31 | 51.27 | 13.2 |
| 4.07 | 1.32 | 1.25 | 36.03 | 53.15 | 12.8 |
| 4.29 | 1.42 | 1.04 | 35.91 | 60.49 | 12.5 |
| 4.5 | 1.45 | 1.22 | 35.38 | 69.7 | 12.6 |
Reference picture
Configuration(mm)

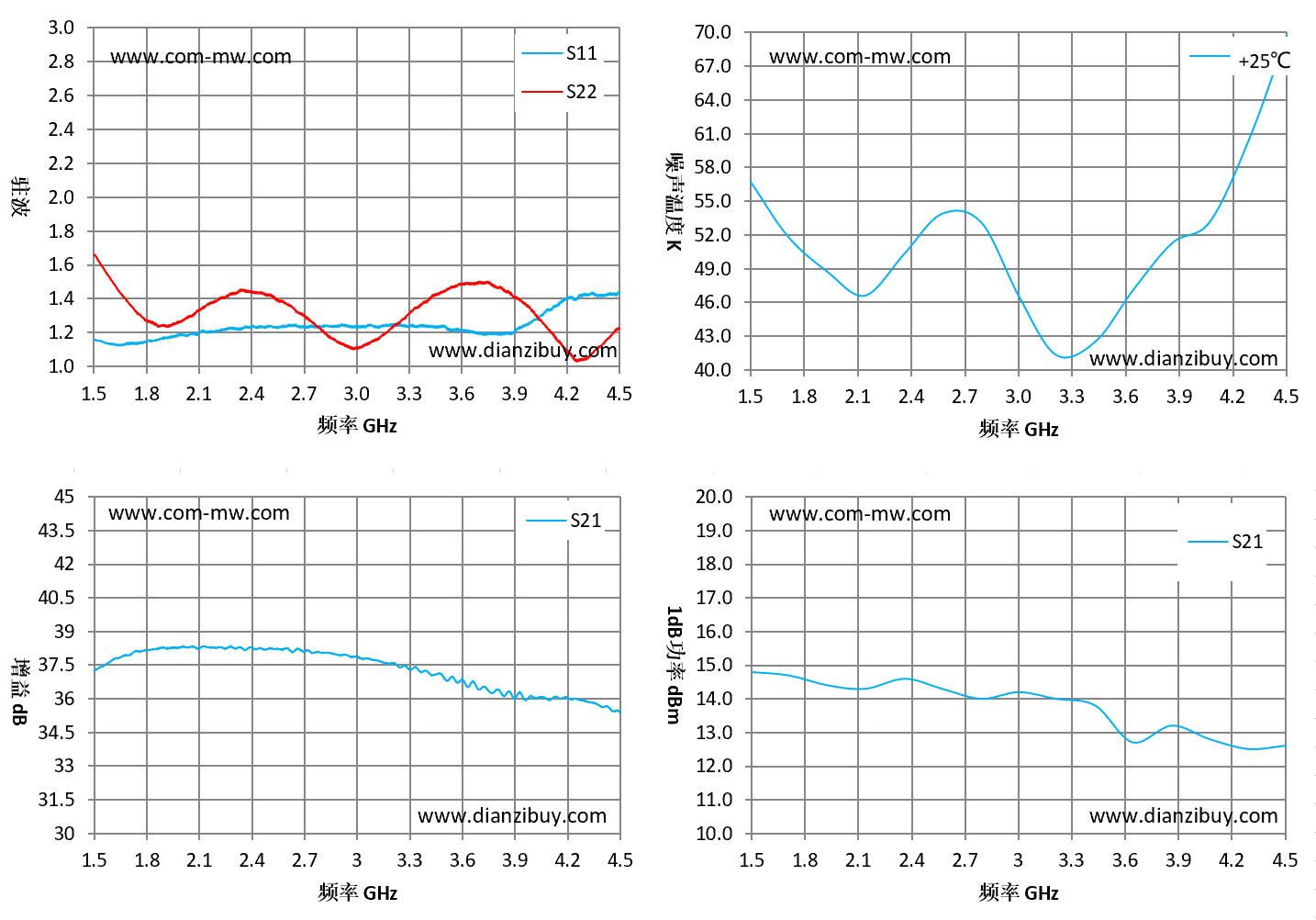

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
