LNA
0.01~1000MHz, Gain40dB, Noise figure2dB, P-1dB15dBm, N
- DLNA8-0.01-1000-3162
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.01 | ~ | 1000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±1.25 | dB | ||
| Noise figure | 2 | dB | ||
| VSWR | 2.3 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12~15V |
| Working current | 300mA |
| Reverse isolation | 50dB |
| Work Temp. | -25~+70℃ Design assurance |
| DC power | DC interface DC5.5mm (outer diameter) * 2.5mm (inner diameter), powered by 220V power adapter |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 Gain | S21 Noise | S21 P-1dB |
| 0.01 | 1.52 | 1.79 | 41.62 | / | 16.3 |
| 1 | 1.5 | 1.75 | 41.82 | / | 17.2 |
| 10 | 1.38 | 1.42 | 43.51 | 1.19 | 18.3 |
| 100 | 1.29 | 1.3 | 43.1 | 1.19 | 18 |
| 200 | 1.47 | 1.32 | 43.1 | 1.09 | 18.08 |
| 300 | 1.7 | 1.33 | 43.15 | 1.11 | 18.02 |
| 400 | 1.91 | 1.37 | 43.25 | 1.33 | 17.96 |
| 500 | 2.03 | 1.4 | 43.36 | 1.53 | 17.73 |
| 600 | 2.03 | 1.46 | 43.48 | 1.56 | 17.76 |
| 700 | 1.85 | 1.55 | 43.63 | 1.51 | 17.63 |
| 800 | 1.6 | 1.72 | 43.71 | 1.43 | 17.38 |
| 900 | 1.37 | 1.95 | 43.73 | 1.51 | 17.03 |
| 1000 | 1.39 | 2.15 | 43.56 | 1.85 | 16.72 |

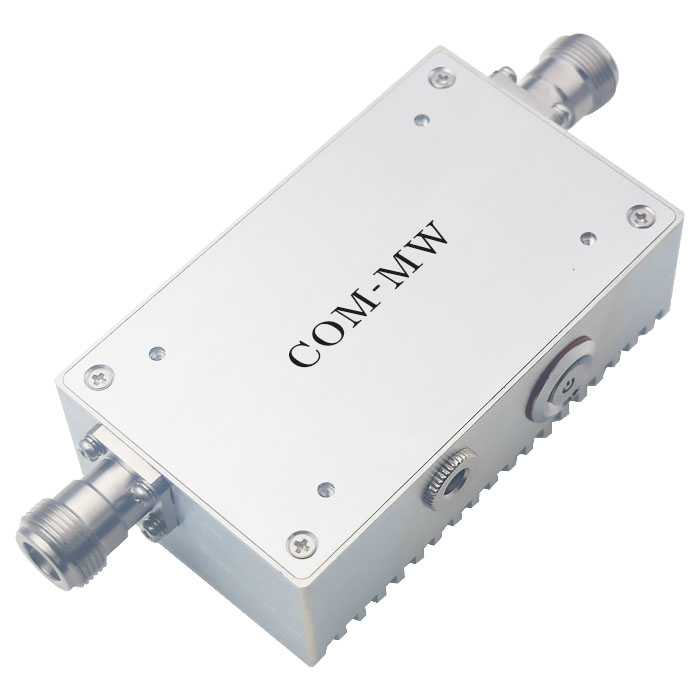

Reference picture

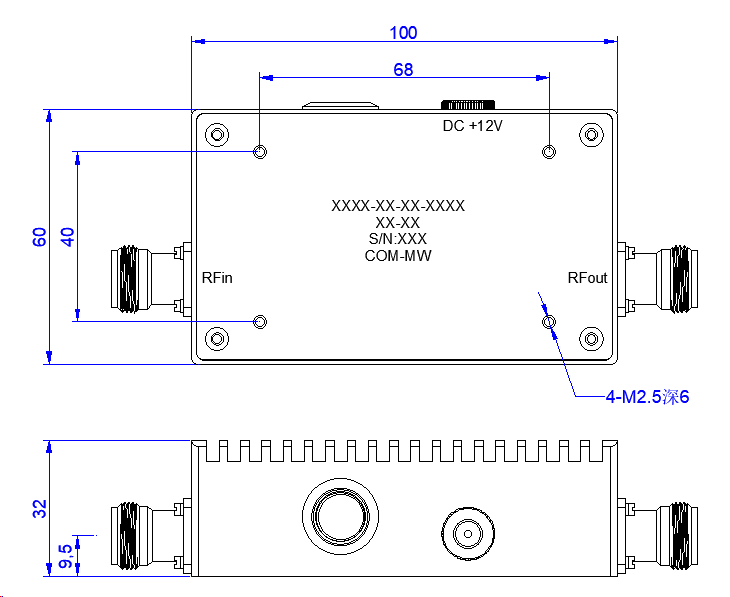

Configuration(mm)

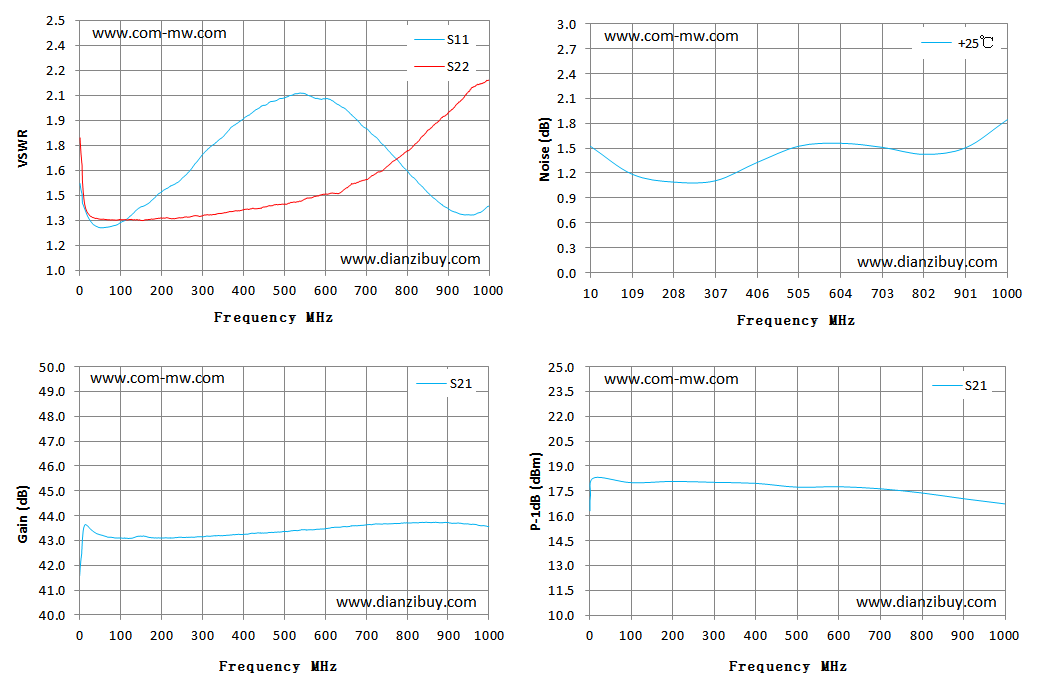

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
