LNA

18~32GHz, Gain30dB, Noise figure3dB, P-1dB10dBm, 2.92-K

Model:DLNA8-18-32G-3529
Made In:China
Warranty:One Year
Tel:+86-19938031308
Email:sales@com-mw.com, cynthia@com-mw.com
Address:3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
Reminder:For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
No restrictions on export to any country
RoHS compliant (Meet RoHS standards can be customized)

Product Details

3D Outline Drawing

Product features

High gain, low noise

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	18	~	32	GHz
Gain	30			dB
Gain flatness		±1	±1.5	dB
Noise figure		3	3.6	dB
VSWR			2
P-1dB	10			dBm
OIP3		15		dBm
Max input power			10	dBm

Other parameters

Connector	2.92-K
Connector material	Stainless steel
Impedance	50Ω
Surface	Gold-plating
Working voltage	+12V
Working current	200mA
Reverse isolation	65dB
Operation Temp.	-40~+70℃ Design assurance
Quality Grade	Industrial grade

Typical test data

Frequency GHz	S11 VSWR	S22 VSWR	GaindB	NFdB	P-1 dBm	Psat dBm
17	1.7	1.62	34.7	2.6	11.8	13.6
18.14	1.35	1.73	34.6	2.7	11.4	13.3
19.29	1.3	1.71	35.1	2.6	11.8	13.8
20.43	1.41	1.6	35.2	2.8	11.9	13.8
21.57	1.36	1.47	35.1	2.5	11.9	13.4
22.71	1.25	1.39	34.4	3	11.9	13.7
23.86	1.24	1.41	33.8	3	12.6	14.4
25	1.44	1.52	33.7	2.8	13.8	15
26.14	1.61	1.63	33.5	3.2	13.4	14.7
27.29	1.69	1.65	33.6	2.9	13.4	14.5
28.43	1.7	1.65	33.6	3.3	14	15.2
29.57	1.63	1.57	33.4	3.4	14.3	15.6
30.71	1.52	1.44	33.9	3.3	14.3	15.3
31.86	1.69	1.17	33.6	3.7	14.4	15.5
33	1.73	1.31	31.8	3.6	15	15.8

Reference picture

Configuration(mm)

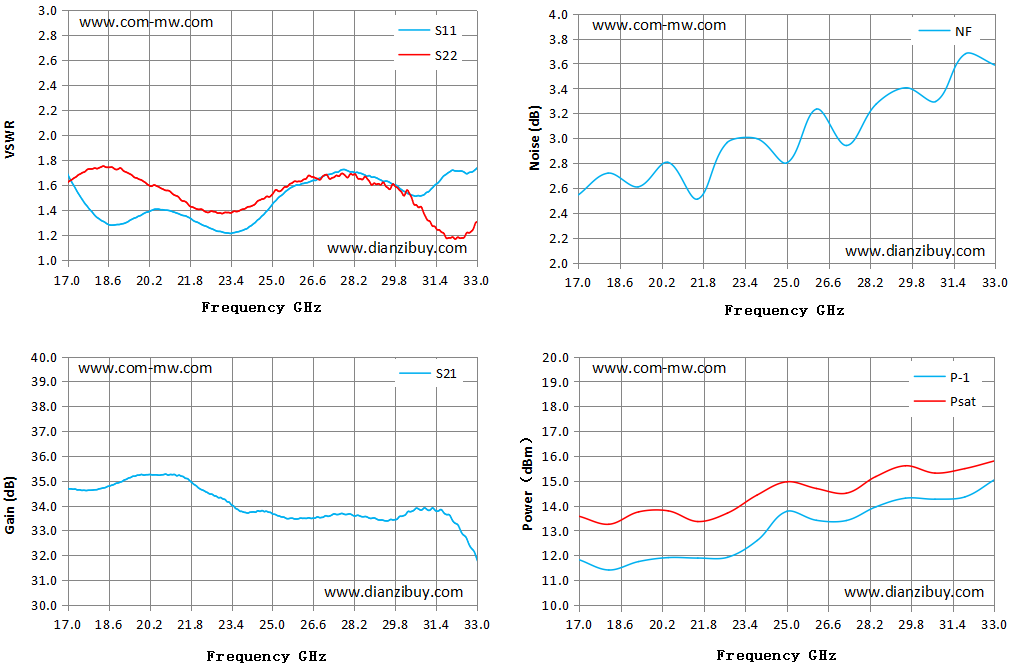

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
