LNA
40~50GHz, Gain50dB, Noise figure4dB, P-1dB12dBm
- DLNA8-40-50G-1325
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
High gain, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 40 | ~ | 50 | GHz |
| Gain | 46 | 50 | dB | |
| Gain flatness | ±2 | ±4 | dB | |
| Noise figure | 4 | 5 | dB | |
| VSWR | 2 | 2.5 | ||
| P-1dB | 12 | dBm |
Other parameters
| Connector | 2.4-JK |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V power supply interface: SSMA-K |
| Working current | 500mA |
| Work Temp. | -40~+85℃ Design assurance |
| Other | In port 2.4-J |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 P-1dB | 25 ℃ noise |
| 38 | 1.56 | 1.1 | 51.73 | 13.5 | 3.67 |
| 39 | 1.5 | 1.43 | 52.72 | 13 | 3.38 |
| 40 | 1.35 | 1.43 | 53.67 | 12.4 | 3.37 |
| 41 | 1.45 | 1.17 | 54.37 | 15.2 | 3.16 |
| 41 | 1.45 | 1.17 | 54.37 | 15.2 | 3.16 |
| 42 | 1.51 | 1.38 | 55.15 | 13.5 | 3.21 |
| 43 | 1.53 | 1.5 | 53.76 | 15.8 | 3.31 |
| 44 | 1.54 | 1.48 | 51.41 | 13.3 | 3.5 |
| 45 | 1.79 | 1.51 | 50.51 | 14.1 | 3.73 |
| 46 | 1.73 | 1.53 | 50.18 | 14.7 | 3.41 |
| 47 | 1.29 | 1.37 | 50.48 | 13.8 | 3.03 |
| 47 | 1.29 | 1.37 | 50.48 | 13.8 | 3.03 |
| 48 | 1.17 | 1.23 | 47.5 | 13.8 | 3.21 |
| 49 | 1.21 | 1.27 | 50.13 | 14 | 3.82 |
| 50 | 1.58 | 1.35 | 50.24 | 14.4 | 4.2 |

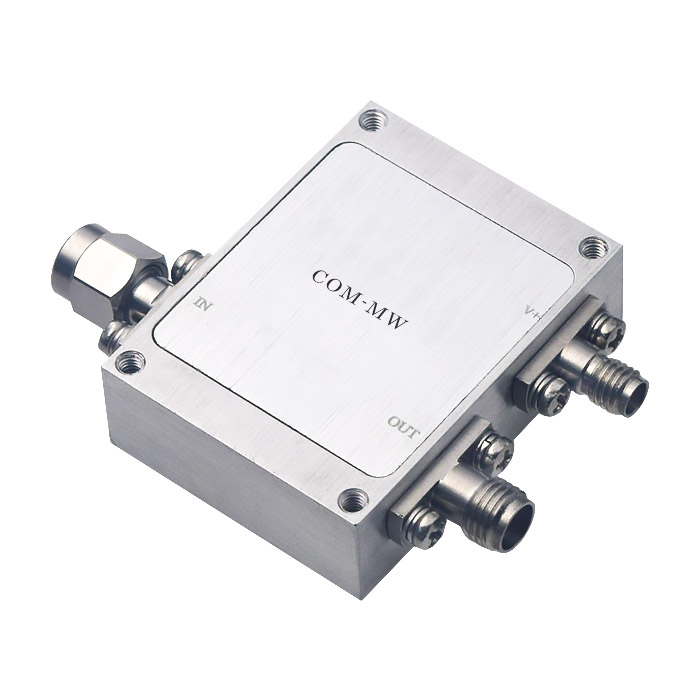

Reference picture

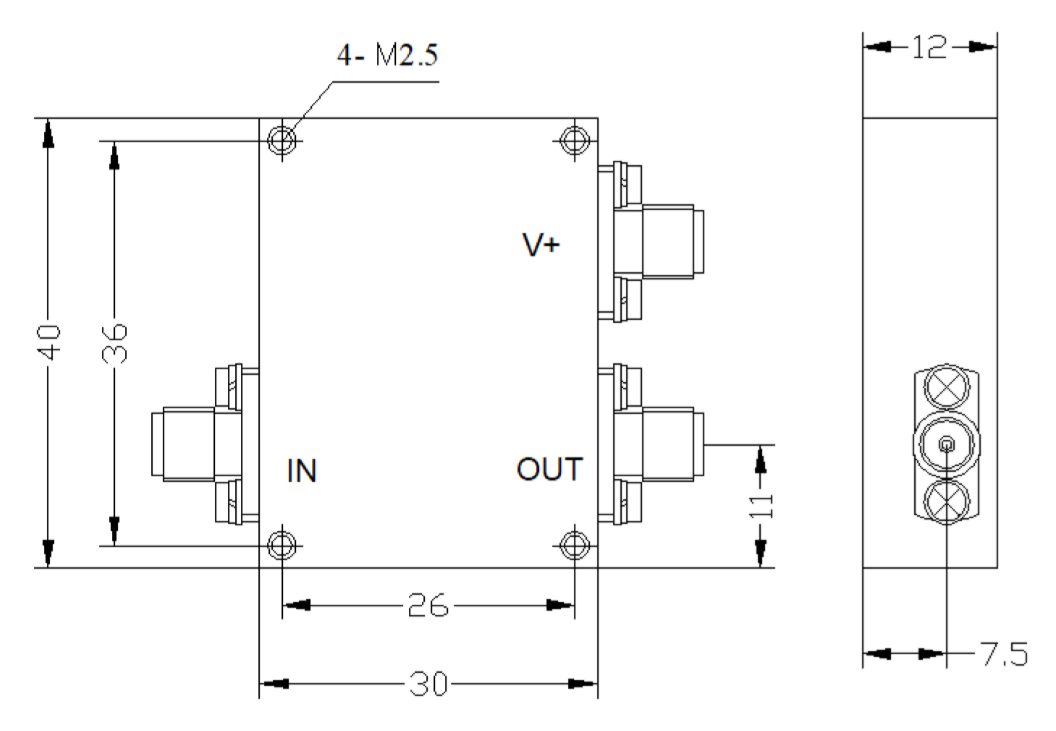

Configuration(mm)

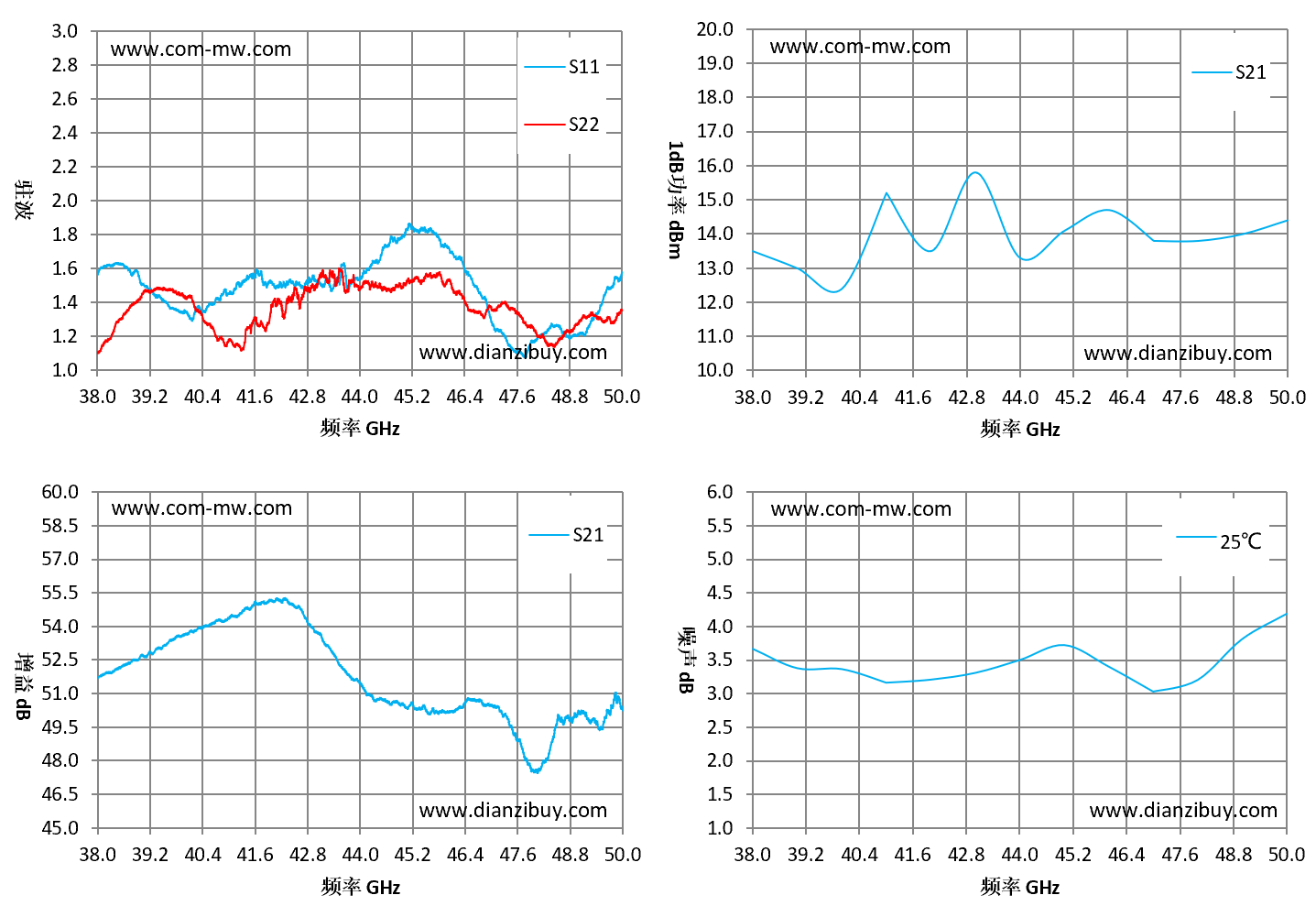

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
