LNA

32~40GHz, Gain22dB, Noise figure4.2dB, P-1dB power13dBm, 2.92, Limiting amplifier

  • DLNA7-32-40G-982
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS compliant (Meet RoHS standards can be customized)

Product Details

DATASHEET
S-PARAMETERS

Product features

Broadband, low noise, input limiting protection

Main specifications

ParametersMinTypicalMaxUnits
Frequency32~40GHz
Gain22dB
Gain flatness±1.3dB
Noise figure4.2dB
VSWR1.8
P-1dB power13dBm
Max input power2W

Other parameters

Connector2.92-K
Connector materialStainless steel
Impedance50Ω
SurfaceWhite
Working voltage+12V
Working current100mA
Work Temp.-40~+70℃
Storage Temp.-50~+85℃
Power supply methodRF output feed, limiting amplifier

Typical test data

Frequency(GHz)S11 VSWRS22 VSWRS21 gain dBS21 Noise dBS21 1dB power
311.651.4331.453.3310.5
31.711.371.4831.583.6212.5
32.431.181.3932.163.4815.2
33.141.111.1433.393.4613.4
33.861.181.4633.563.5914.1
34.571.391.7933.733.5415.4
35.291.661.2333.93.4814.9
361.821.3634.013.5716.5
36.711.641.6733.93.4515.9
37.431.41.7433.643.415.6
38.141.281.5633.653.3415.1
38.861.371.4333.613.115.3
39.571.431.2933.533.0715
40.291.331.8833.883.315.8
411.21.3633.383.3713.8

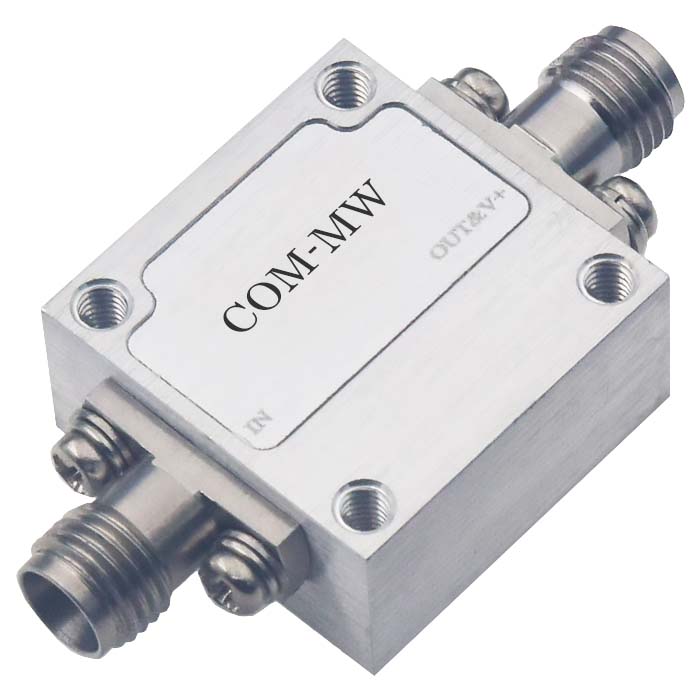

Reference picture

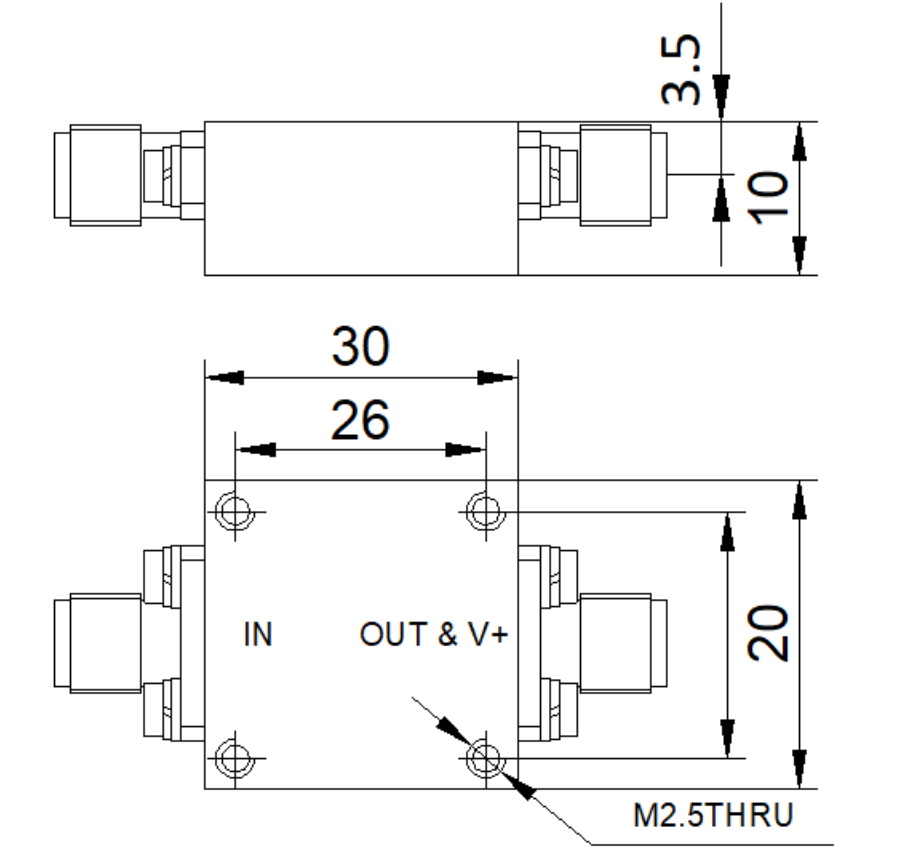

Configuration(mm)

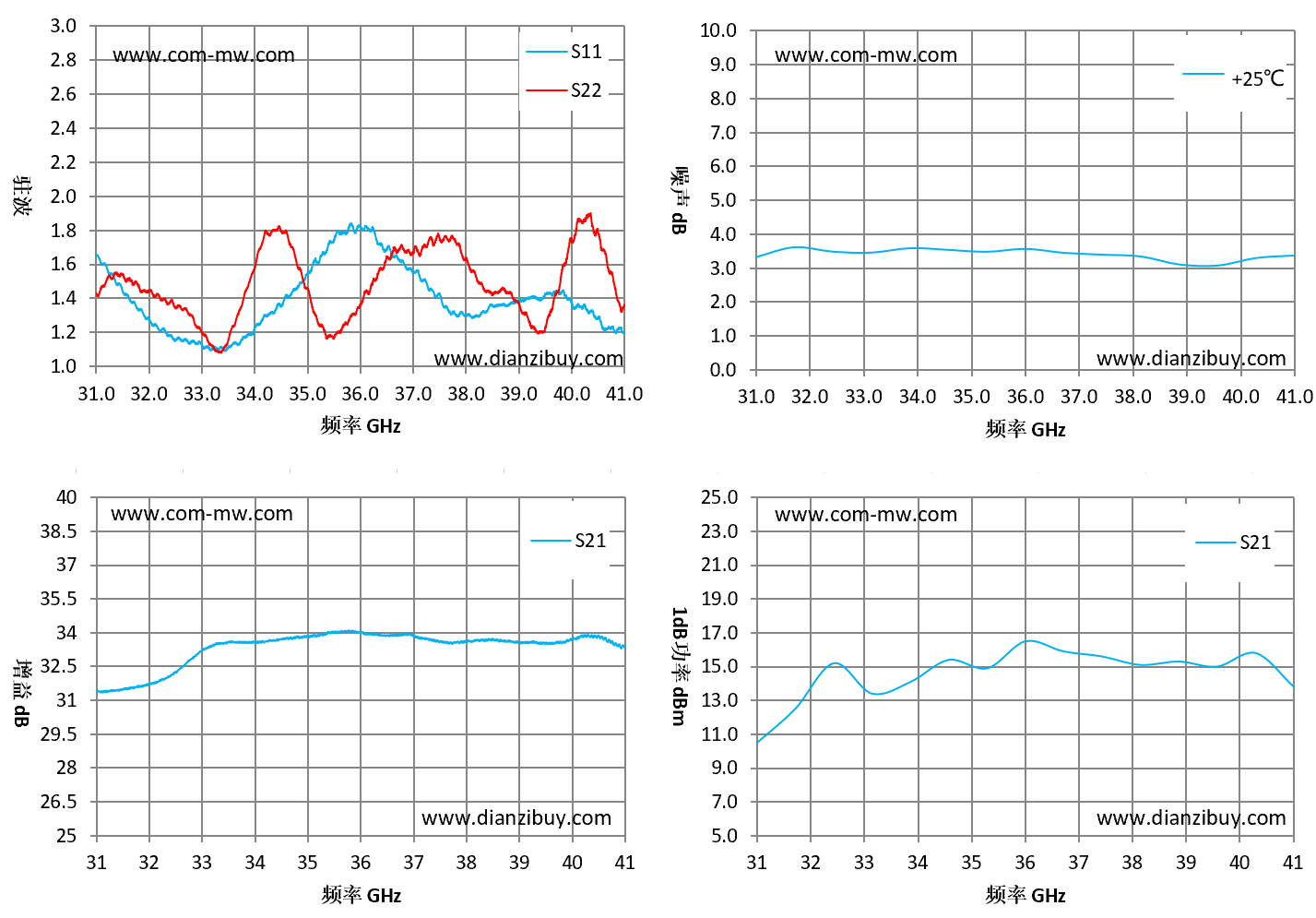

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
