LNA
18~40GHz, Gain30dB, Noise figure4dB, P-1dB15dBm, 2.92
- DLNA8-18000-40000-1072
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 3.6 | 4 | dB | |
| P-1dB | 15 | dBm |
Other parameters
| Connector | 2.92-K detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Work Temp. | -40~+70℃ Design assurance |
| Other | Maximum input undamaged power: 10dBm |
Typical test data
| Frequency (G) | S11 VSWR | S22 VSWR | S21 Gain | S21 P-1dB | +25 ℃ noise dB |
| 16 | 1.4 | 1.2 | 35.47 | 22.3 | 3.29 |
| 18 | 1.28 | 1.51 | 38.09 | 22 | 3.2 |
| 20 | 1.51 | 1.55 | 35.66 | 21.1 | 3.23 |
| 22 | 1.58 | 1.33 | 35.89 | 21.5 | 3.05 |
| 23 | 1.52 | 1.36 | 36.54 | 21.3 | 3.51 |
| 25 | 1.79 | 1.54 | 36.09 | 22.3 | 3.07 |
| 27 | 1.53 | 1.19 | 36.22 | 23.3 | 3.28 |
| 29 | 1.61 | 1.12 | 35.55 | 23.2 | 3.47 |
| 31 | 1.46 | 1.53 | 35.04 | 23.1 | 3.29 |
| 33 | 1.33 | 2.13 | 35.4 | 22.3 | 3.42 |
| 35 | 1.31 | 1.27 | 36.86 | 22 | 3.53 |
| 36 | 1.73 | 1.46 | 36.7 | 22.2 | 3.48 |
| 38 | 1.39 | 1.06 | 34.97 | 21 | 3.32 |
| 40 | 1.87 | 1.17 | 35.85 | 22.9 | 3.56 |
| 42 | 1.71 | 1.55 | 34.97 | 21.6 | 4.79 |
Reference picture
Configuration(mm)

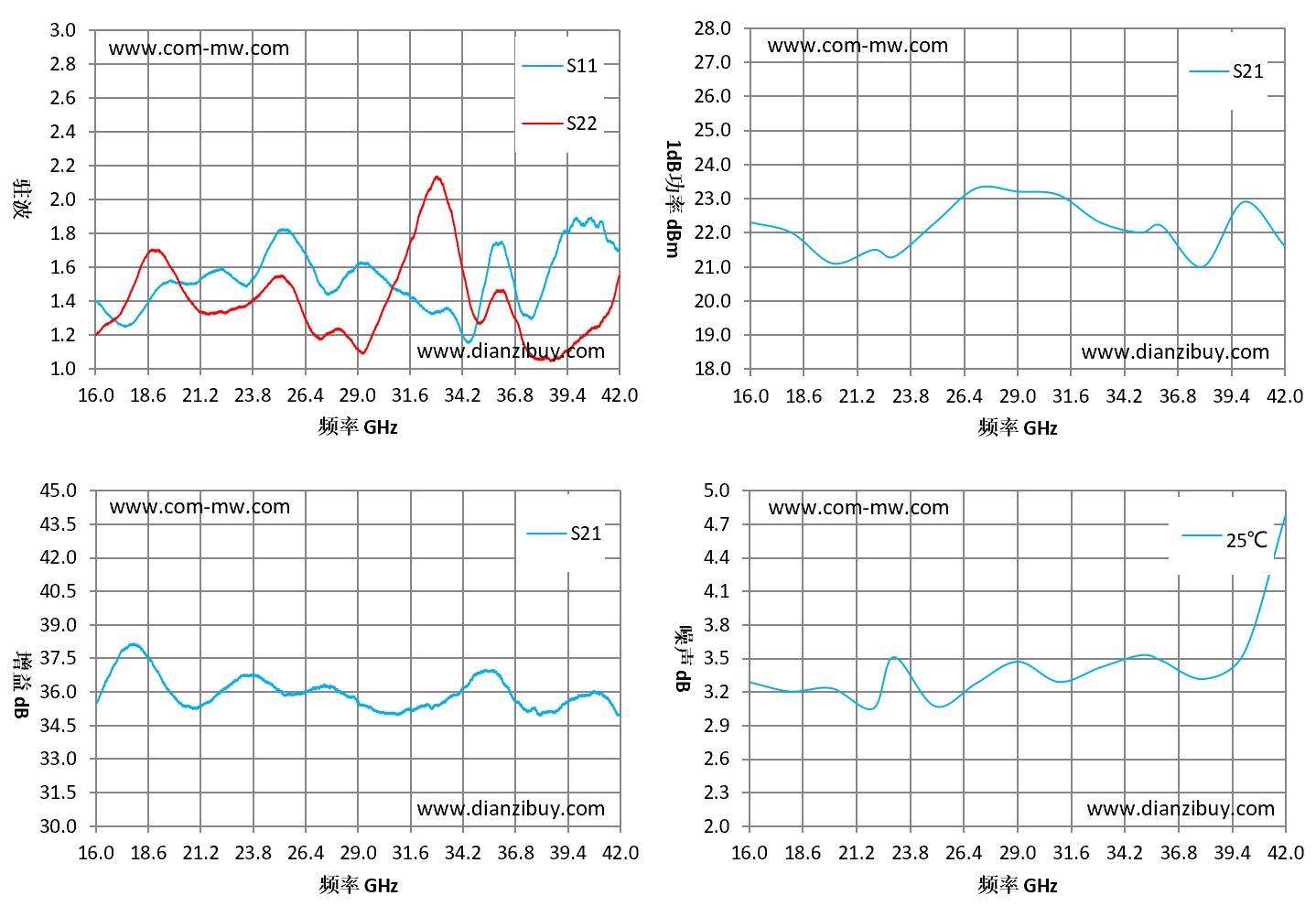

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
