LNA

6~20GHz, Gain34dB, Noise figure3.3dB, P-1dB15dBm, SMA

Model:DLNA8-6-20G-3467
Made In:China
Warranty:One Year
Tel:+86-19938031308
Email:sales@com-mw.com, cynthia@com-mw.com
Address:3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
Reminder:For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
No restrictions on export to any country
RoHS compliant (Meet RoHS standards can be customized)

Product Details

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	6	~	20	GHz
Gain	34			dB
Gain flatness			±3	dB
Noise figure			3.3	dB
Input VSWR		2	3
Output VSWR		2	2.5
P-1dB	10	15		dBm
OIP3	20			dBm

Other parameters

Connector	SMA-K detachable, Pin 0.38mm
Connector material	Stainless steel
Impedance	50Ω
Surface	Gold-plating
Working voltage	+12V
Working current	150mA
Reverse isolation	50dB
Operation Temp.	-40~+70℃ Design assurance

Typical test data

Frequency GHz	S11 VSWR	S22 VSWR	S21 Gain	Noise dB	P1dB dBm	Psat dBm
4	12.35	3.94	9.13	8.36	-2.3	-1.1
5.29	4.15	2.37	34.83	3.62	7.5	13.1
6.57	2.04	1.87	36.32	2.88	11.8	15.3
7.86	1.66	1.42	37.8	2.65	14.3	15.5
9.14	1.19	1.05	37.22	2.65	14.97	16.1
10.43	1.07	1.21	36.86	2.69	15.4	16.5
11.71	1.12	1.42	36.46	2.78	15.6	16.4
13	1.09	1.29	36.65	2.81	15.7	16.6
14.29	1.2	1.26	37.24	2.7	15.8	17.2
15.57	1.69	1.17	37.89	2.76	15.9	17.4
16.86	1.59	1.21	37.82	2.83	15.8	17.3
18.14	1.98	1.6	38.64	2.84	15.9	17.7
19.43	1.8	1.86	38.66	2.93	16.3	17.8
20.71	1.53	1.52	36.05	2.92	16.6	17.9
22	2.45	1.99	31.21	3.06	16.4	17.6

Reference picture

Configuration(mm)

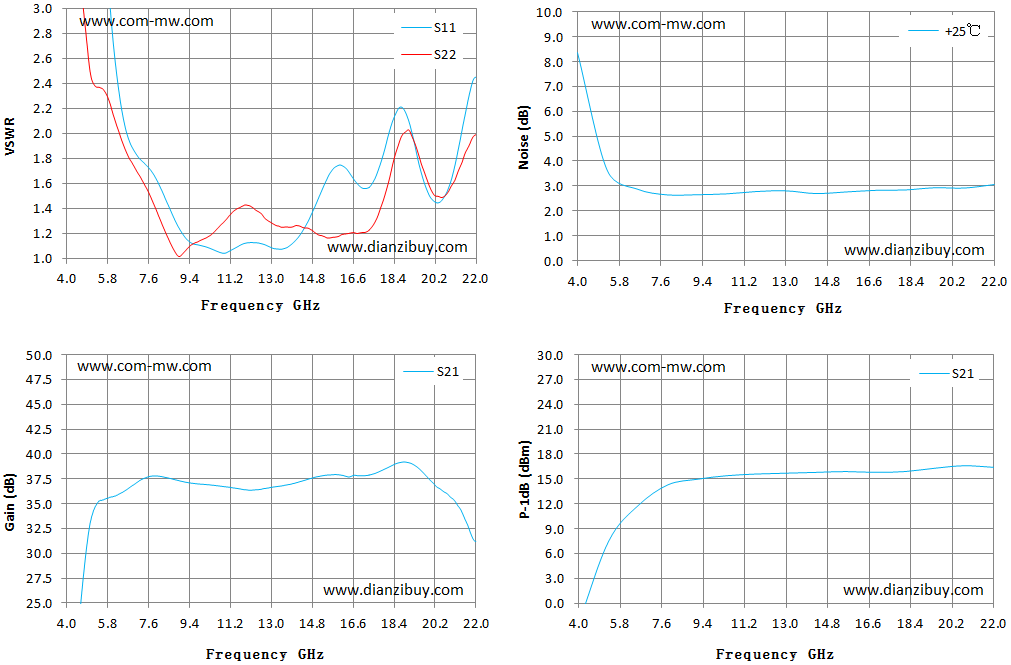

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
