LNA
960~1215MHz, Gain20dB, Noise figure1.1dB, P-1dB17dBm, N
- DLNA3-960-1215-1741
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Low noise, RF port feeding.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 960 | ~ | 1215 | MHz |
| Gain | 20 | dB | ||
| Gain flatness | 1 | dB | ||
| Noise figure | 0.8 | 1.1 | dB | |
| VSWR | 1.8 | |||
| P-1dB | 17 | dBm |
Other parameters
| Connector | N-K |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 100mA |
| Work Temp. | -20~+50℃ Design assurance |
| Other | Rust proof aluminum 5A06 shell. |
Typical test data
| F(MHz) | P-1(dBm) | NF(dB） | S11VSWR | S22VSWR | Gain(dB) |
| 900 | 18.1 | 0.48 | 1.71 | 1.33 | 21.9 |
| 940 | 18.8 | 0.41 | 1.7 | 1.29 | 21.8 |
| 980 | 18.8 | 0.34 | 1.7 | 1.8 | 21.7 |
| 1020 | 18.9 | 0.35 | 1.72 | 1.26 | 21.6 |
| 1060 | 19.1 | 0.34 | 1.72 | 1.22 | 21.5 |
| 1100 | 19.1 | 0.42 | 1.71 | 1.19 | 21.5 |
| 1140 | 19.1 | 0.51 | 1.72 | 1.67 | 21.4 |
| 1180 | 19.1 | 0.62 | 1.72 | 1.13 | 21.1 |
| 1220 | 19 | 0.69 | 1.72 | 1.12 | 21.1 |
| 1260 | 19.1 | 0.74 | 1.72 | 1.13 | 20.7 |
| 1300 | 19 | 0.81 | 1.71 | 1.18 | 20.2 |

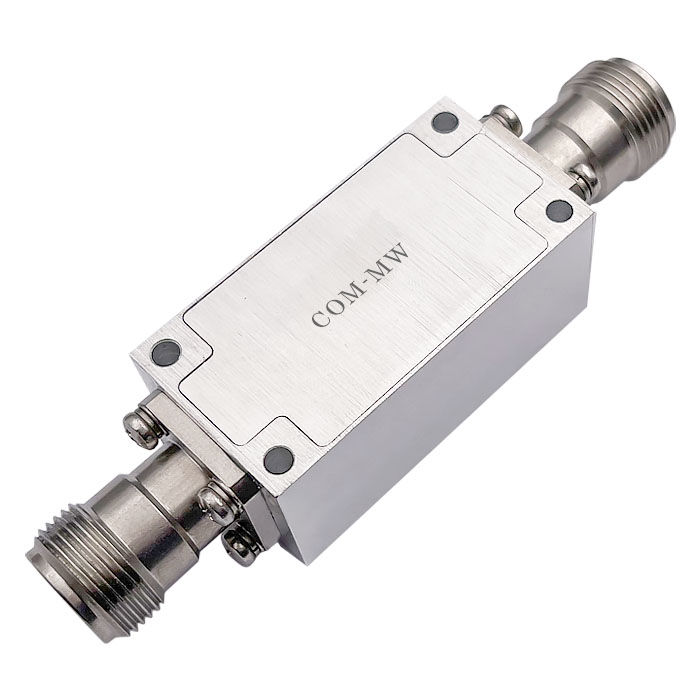

Reference picture

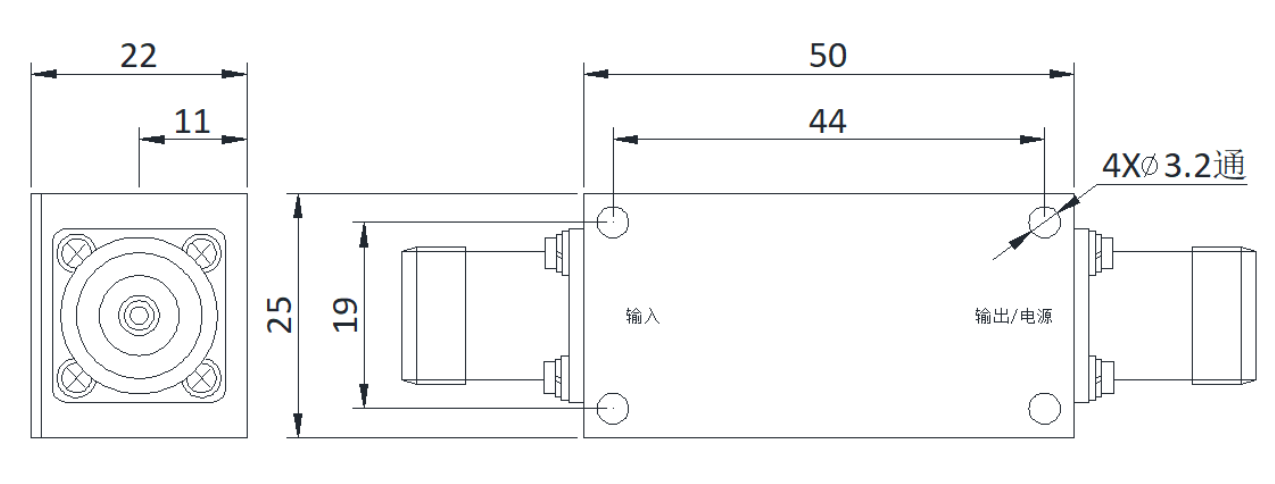

Configuration(mm)

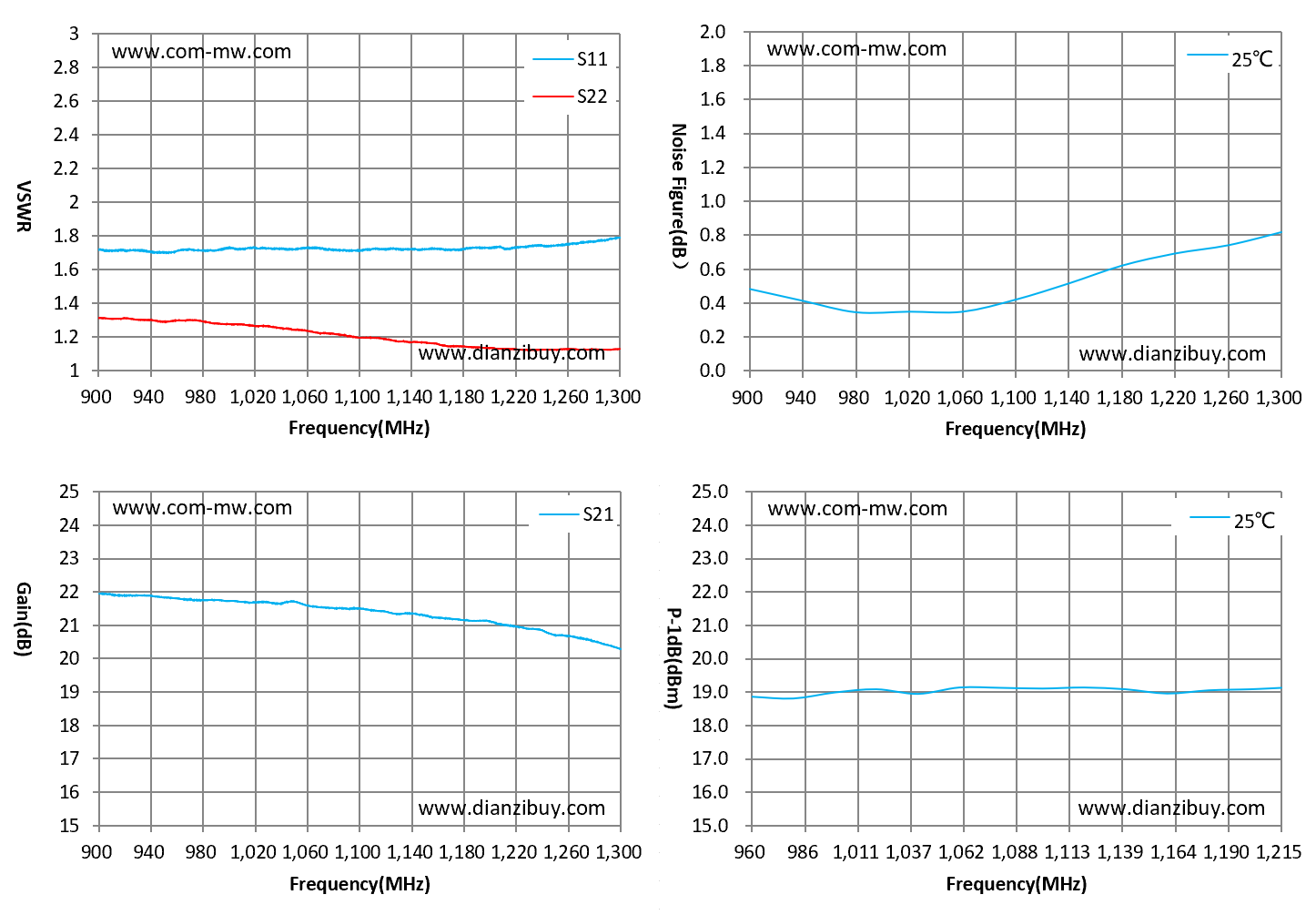

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
