LNA
Frequency1~18, Gain43, Noise figure, 支持220V供电、直流供电
- DLNA8-1-18G-2704
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 43 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2 | |||
| P-1dBm | 13 | dBm | ||
| power | 5 | W |
Product Application
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Anodizing treatment (blue) |
| Work Temp. | -20~+50℃ Design assurance |
| Characteristic | 支持220V供电、直流供电 |
Instructions for use
| 1 | Power supply method 1 | 220V供电输入，标准AC接口 |
| 2 | Power supply method 2 | DC power supply, powered by a 220V power adapter with interface DC5.5mm (outer diameter) * 2.5mm (inner diameter). |
| 3 | Instructions for using the power switch | 220V and DC power supply cannot be used simultaneously. |
Parts list
| 1 | Standard configuration | 220V AC power cord |
| 2 | Optional | Equipped with a power adapter |

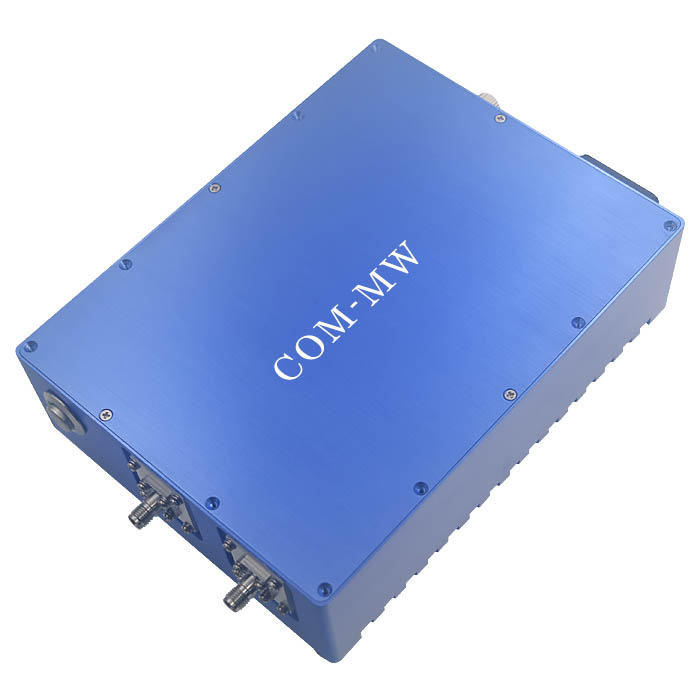

Reference picture

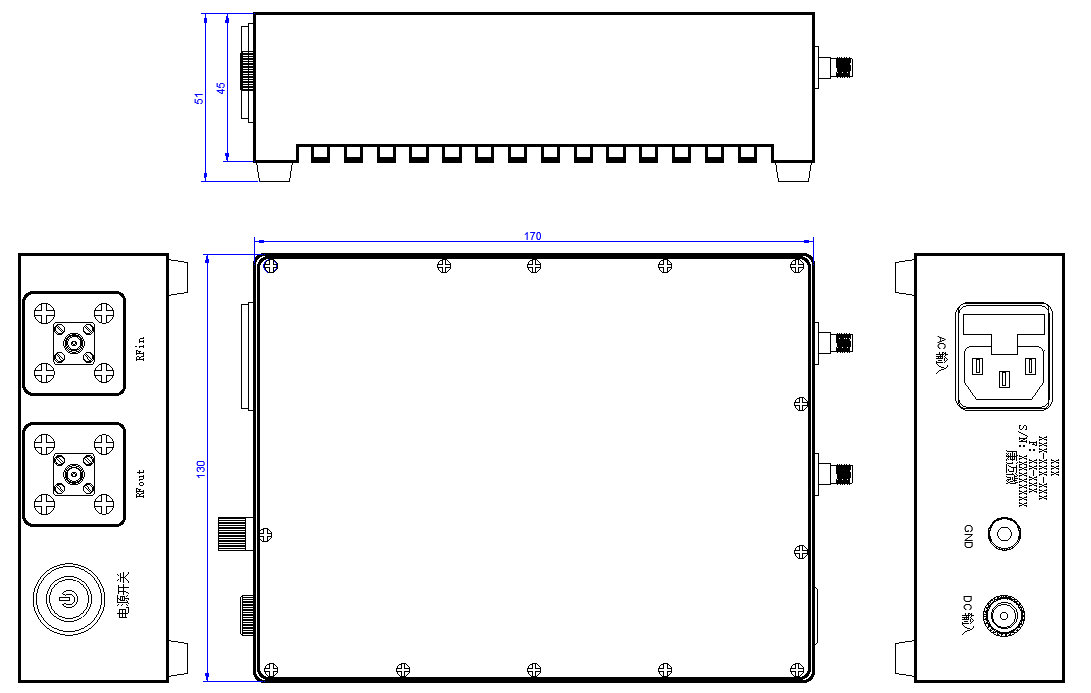

Configuration(mm)
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
