LNA
30~1300MHz, Gain30dB, Noise figure1.4dB, P-1dB14dBm, SMA-K
- DLNA8-30-1000-2558
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 1300 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±1.5 | dB | ||
| Noise figure | 1.4 | 2 | dB | |
| VSWR | 2 | |||
| P-1dB | 14 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 300mA |
| Work Temp. | -40~+70℃ Design assurance |
| Power supply port | SSMA connector power supply, port detachable. |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 gain | P-1dB | S12 Noise |
| 30 | 1.15 | 1.76 | 33.51 | 19.12 | 1.56 |
| 135 | 1.06 | 1.82 | 32.81 | 21.14 | 0.75 |
| 240 | 1.09 | 1.74 | 32.75 | 21.04 | 0.78 |
| 345 | 1.15 | 1.61 | 32.74 | 21.05 | 0.66 |
| 450 | 1.23 | 1.47 | 32.69 | 21.01 | 0.66 |
| 555 | 1.31 | 1.34 | 32.6 | 20.86 | 0.67 |
| 660 | 1.42 | 1.2 | 32.49 | 20.74 | 0.69 |
| 765 | 1.56 | 1.1 | 32.17 | 20.69 | 0.82 |
| 870 | 1.62 | 1.04 | 32.23 | 20.51 | 0.92 |
| 975 | 1.74 | 1.15 | 32.16 | 20.24 | 1.08 |
| 1080 | 1.85 | 1.28 | 31.99 | 20.36 | 1.13 |
| 1185 | 1.94 | 1.42 | 31.7 | 20.3 | 1.2 |
| 1290 | 2.03 | 1.56 | 31.25 | 20.3 | 1.41 |
| 1395 | 1.95 | 1.6 | 31.12 | 20.53 | 1.15 |
| 1500 | 1.91 | 1.62 | 30.74 | 20.52 | 0.93 |

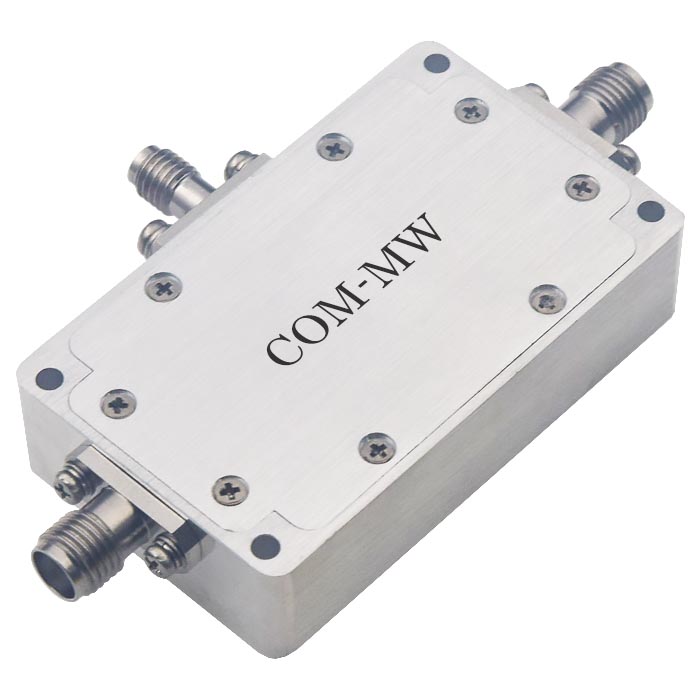

Reference picture

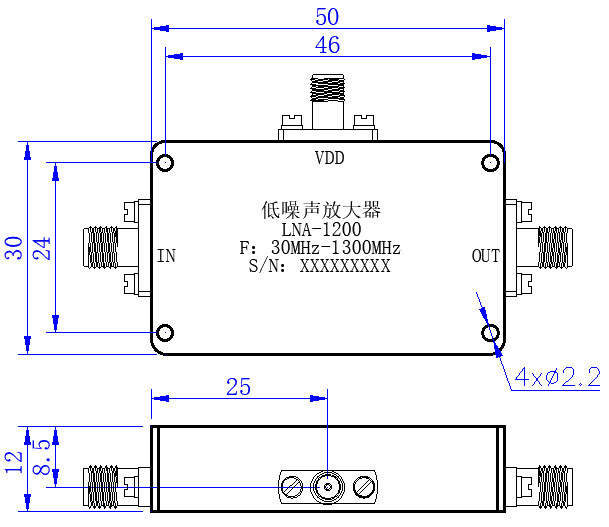

Configuration(mm)

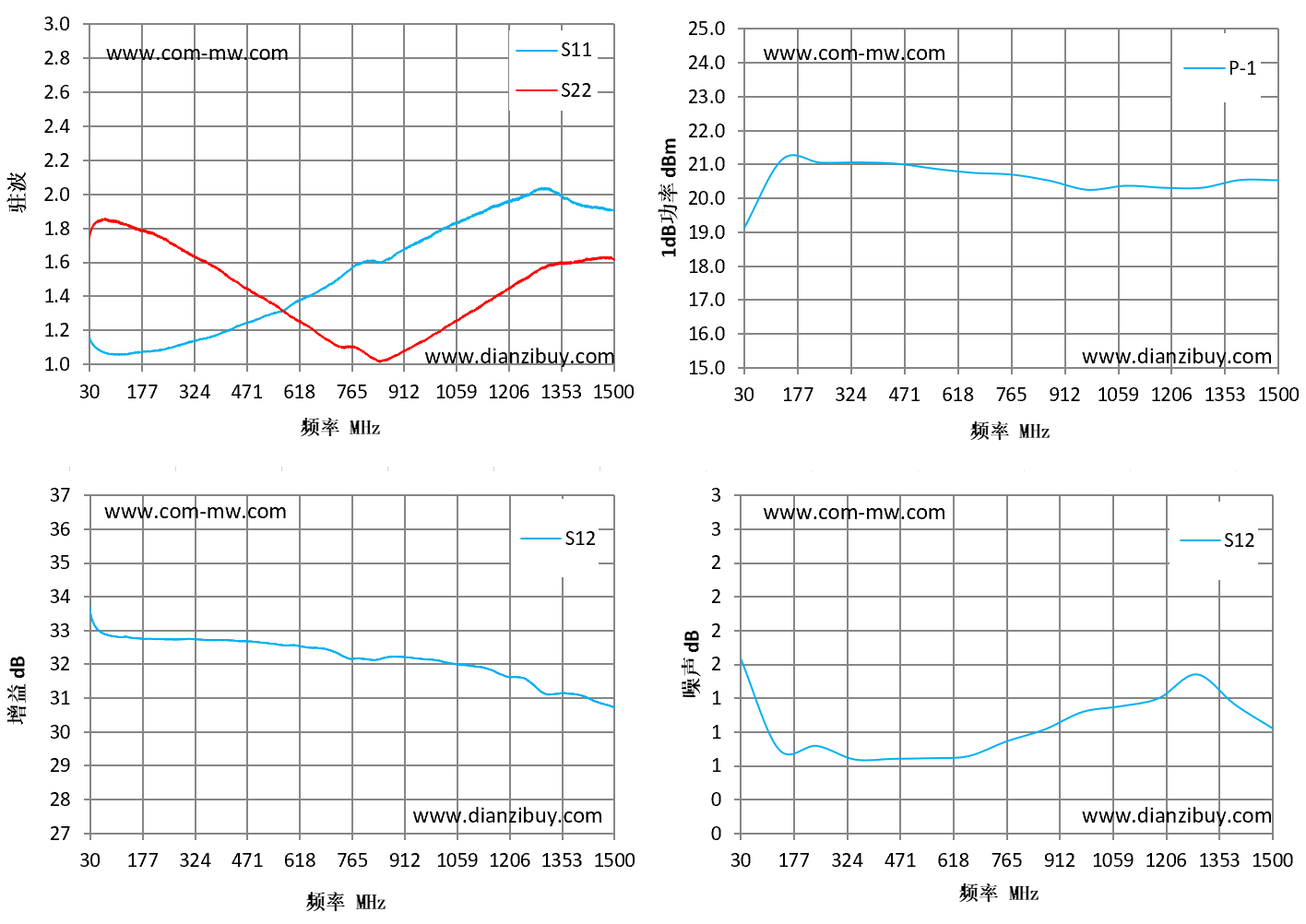

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
