LNA
1500~2700MHz, Gain25dB, Noise figure2dB, P-1dB15dBm, SMA
- DLNA8-1500-2700-2312
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1500 | ~ | 2700 | MHz |
| Gain | 25 | dB | ||
| Gain flatness | 3 | 4 | dB | |
| Noise figure | 2 | dB | ||
| VSWR | 2 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Reverse isolation | 50dB |
| Work Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 gain dB | S21 Noise dB | P-1dB |
| 1500 | 1.79 | 1.65 | 31.25 | 0.72 | 20.68 |
| 1586 | 1.78 | 1.76 | 30.91 | 0.67 | 20.59 |
| 1671 | 1.77 | 1.85 | 30.57 | 0.63 | 20.8 |
| 1757 | 1.74 | 1.9 | 30.11 | 0.61 | 20.7 |
| 1843 | 1.71 | 1.9 | 29.9 | 0.63 | 20.7 |
| 1929 | 1.69 | 1.88 | 29.87 | 0.63 | 20.92 |
| 2014 | 1.68 | 1.86 | 29.74 | 0.72 | 21 |
| 2100 | 1.66 | 1.82 | 29.55 | 0.78 | 20.81 |
| 2186 | 1.66 | 1.78 | 29.14 | 0.95 | 20.98 |
| 2271 | 1.66 | 1.74 | 28.72 | 1 | 21.19 |
| 2357 | 1.68 | 1.69 | 28.56 | 1.03 | 21.3 |
| 2443 | 1.73 | 1.67 | 28.35 | 1.1 | 21.2 |
| 2529 | 1.77 | 1.66 | 28.3 | 1.12 | 21.09 |
| 2614 | 1.82 | 1.69 | 28.35 | 1.19 | 21.05 |
| 2700 | 1.88 | 1.75 | 28.09 | 1.19 | 21.1 |

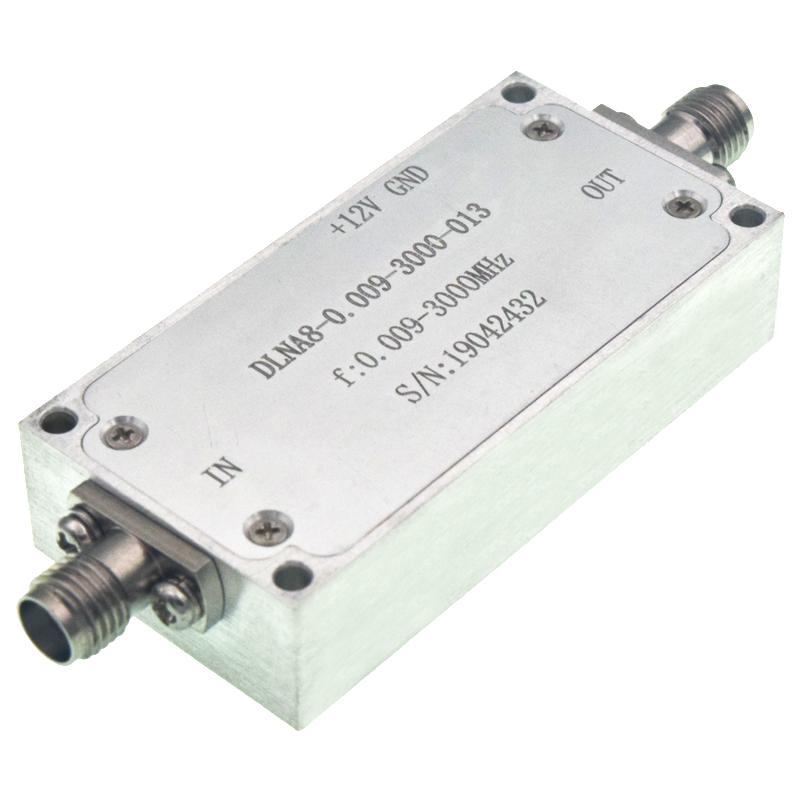

Reference picture
Configuration(mm)

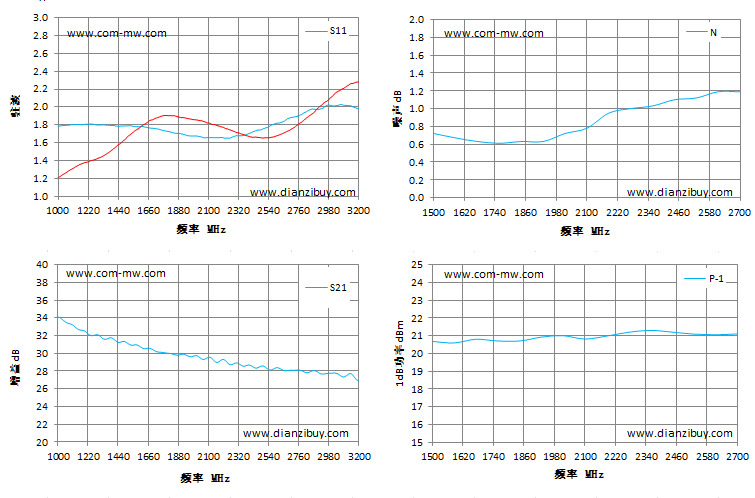

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
