LNA
0.8~24GHz, Gain25dB, Noise figuredB, P-1dB20dBm, Psat22dBm, 2.92-K
- DLNA8-0.1-26-3068
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.8 | ~ | 24 | GHz |
| Gain | 25 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 5 | dB | ||
| VSWR | 1.8 | 2 | ||
| P-1dB | 20 | dBm | ||
| Psat | 22 | dBm |
Other parameters
| Connector | 2.92-F detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 800mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency | S11 | S22 | Gain | NF | P-1 | Psat |
| GHz | VSWR | VSWR | dB | dB | dBm | dBm |
| 0.01 | 2.67 | 3.28 | 31.78 | 21.7 | 17.24 | 20.28 |
| 1.9 | 1.55 | 1.17 | 33.45 | 5.36 | 24.95 | 27.05 |
| 3.79 | 1.78 | 1.09 | 32.01 | 3.33 | 25.82 | 27.68 |
| 5.69 | 1.63 | 1.04 | 30.85 | 2.12 | 24.66 | 26.8 |
| 7.58 | 1.54 | 1.15 | 30.68 | 2.27 | 25.33 | 27.03 |
| 9.47 | 1.34 | 1.16 | 30.1 | 2.9 | 24.94 | 26.69 |
| 11.36 | 1.56 | 1.08 | 28.98 | 3.11 | 23.89 | 26.11 |
| 13.26 | 1.75 | 1.2 | 28.23 | 3.52 | 23.69 | 25.34 |
| 15.15 | 1.76 | 1.21 | 27.85 | 3.69 | 22.78 | 25.43 |
| 17.04 | 1.27 | 1.21 | 28.12 | 4.19 | 22.11 | 24.86 |
| 18.93 | 1.18 | 1.42 | 27.65 | 4.67 | 23.12 | 24.64 |
| 20.82 | 1.23 | 1.37 | 27.49 | 5.14 | 22.64 | 23.86 |
| 22.72 | 1.61 | 1.36 | 28.13 | 5.63 | 23.21 | 24.57 |
| 24.61 | 1.72 | 1.67 | 26.27 | 6.26 | 23.53 | 24.63 |
| 26.5 | 2.42 | 1.91 | 10.19 | 8.34 | 23.77 | 24.77 |

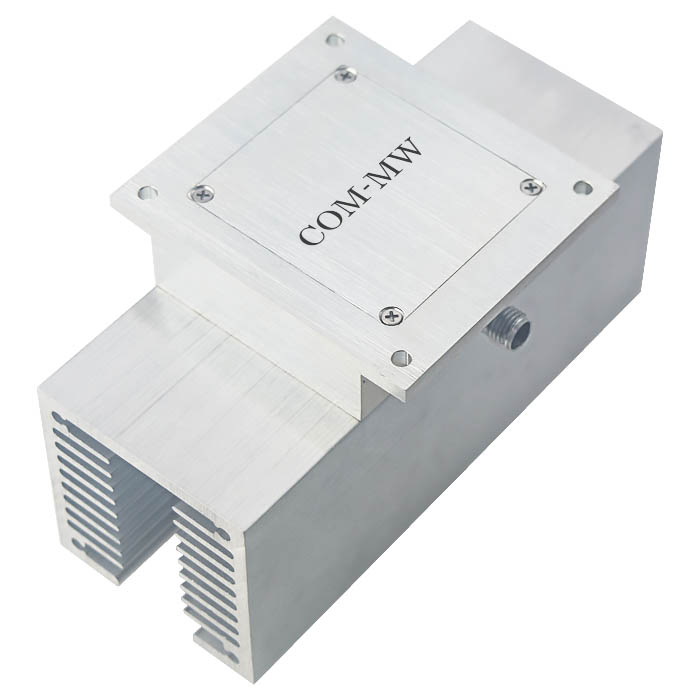

Reference picture

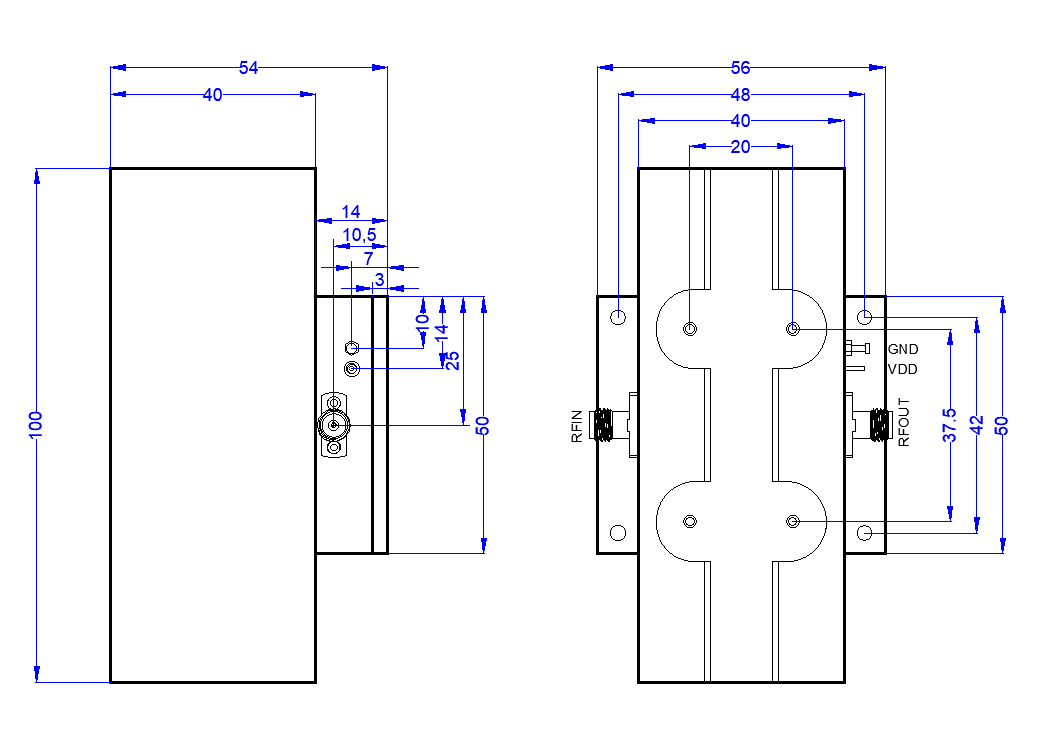

Configuration(mm)

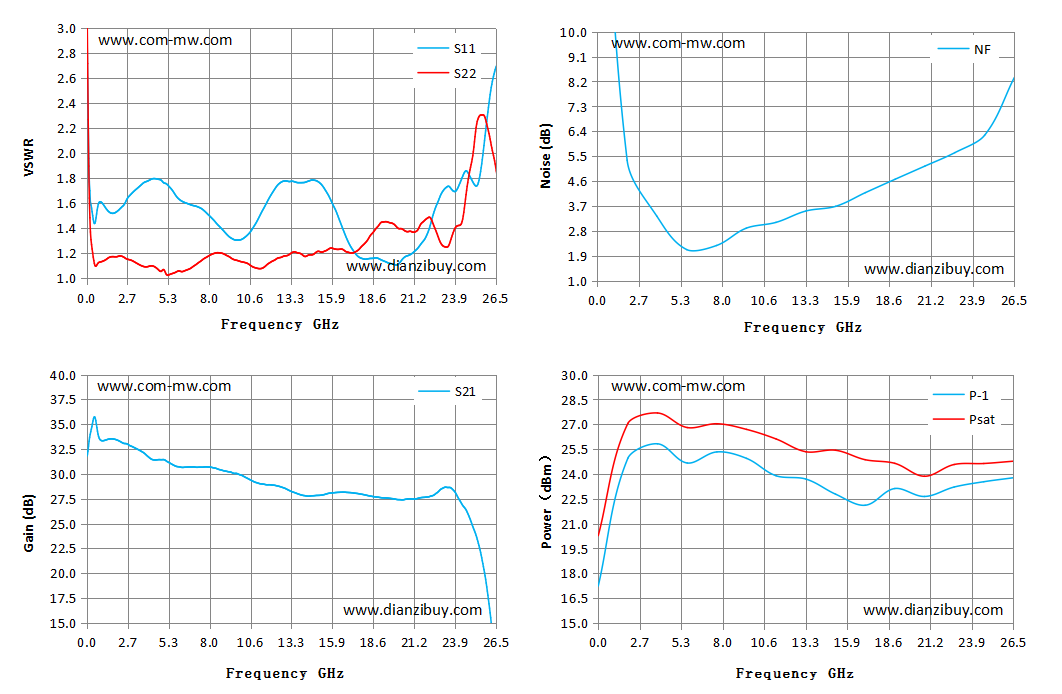

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
