LNA
1000~8000MHz, Gain55dB, Noise figure3dB, P-1dB10dBm, N
- DLNA8-1000-8000-3035
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1000 | ~ | 8000 | MHz |
| Gain | 55 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 10 | dBm | ||
| Max input power | 15 | dBm |
Other parameters
| Connector | N-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +220V&12V |
| Work Temp. | -20~+60℃ Design assurance |
| Quality Grade | Industrial grade |
Parts list
| 1 | AC Adapter | 1 piece |
| 1 | Test data and certificate of conformity | 1 set |

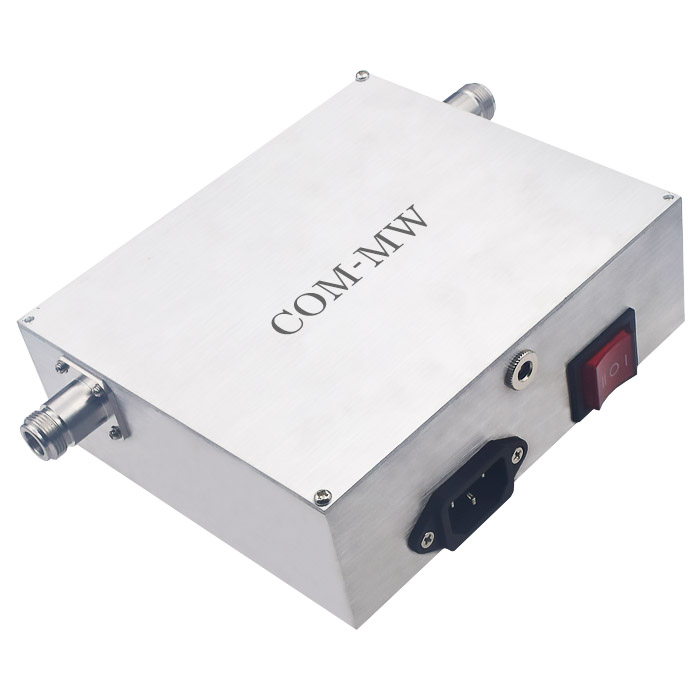

Reference picture

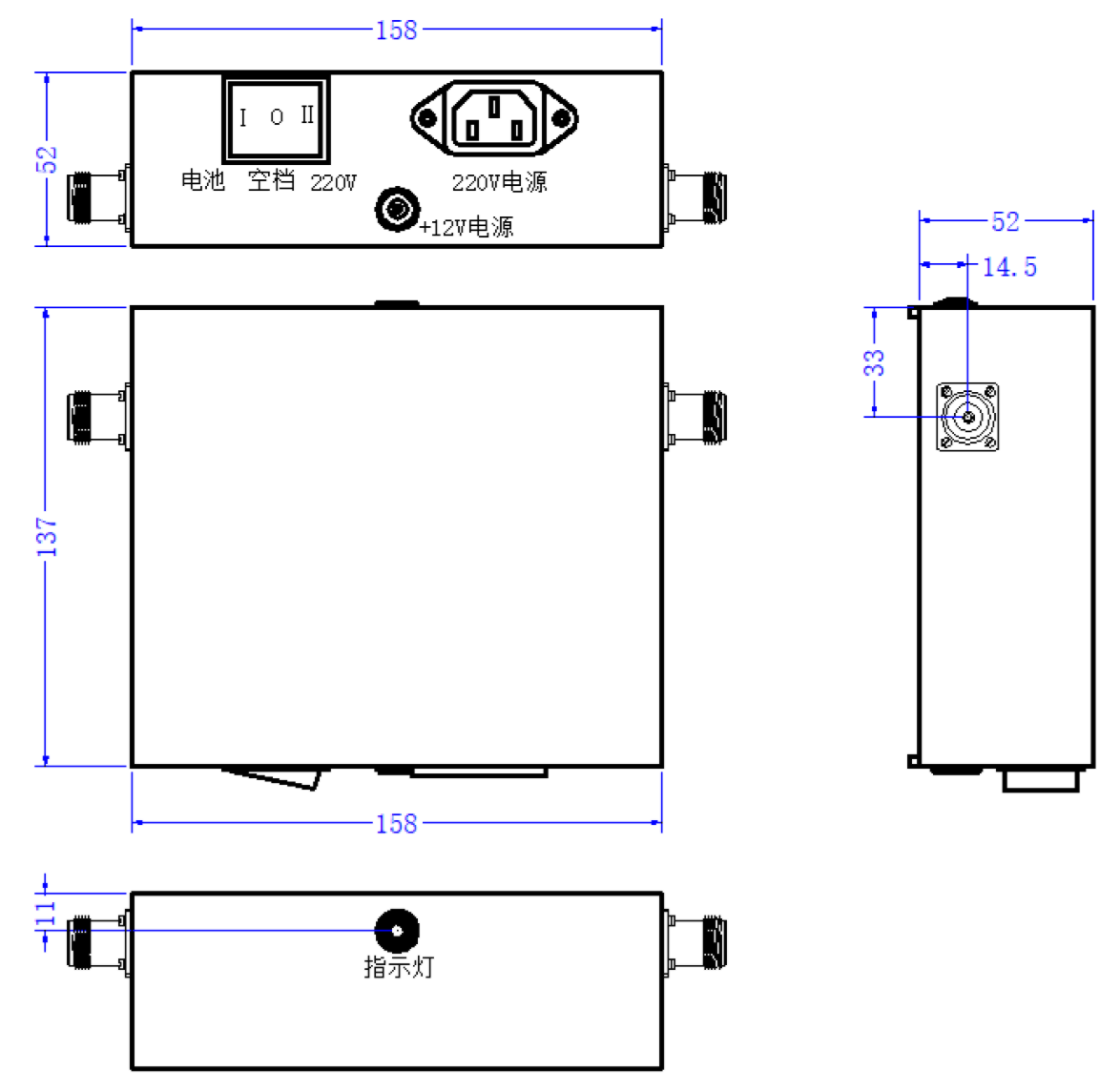

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
