LNA
50~60GHz, Gain55dB, Noise figure5dB, P-1dB10dBm, 1.85
- DLNA8-50-60-2583
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 50 | ~ | 60 | GHz |
| Gain | 55 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | 1.85-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12~18V |
| Working current | 150mA |
| Work Temp. | -30~+70℃ Design assurance |
Typical test data
| Frequency（GHz） | S11 VSWR | S22 VSWR | S12 Gain | Noise dB | P-1dB |
| 48 | 3.17 | 2.93 | 61.87 | 4.3 | 10.8 |
| 49 | 2.76 | 2.55 | 60.19 | 3.7 | 10.5 |
| 50 | 2.45 | 1.93 | 61.91 | 3.8 | 10.2 |
| 51 | 2.09 | 1.75 | 62.89 | 4.8 | 10.2 |
| 52 | 2.24 | 1.98 | 62.71 | 4.4 | 10.7 |
| 53 | 1.78 | 2.33 | 62.51 | 4.7 | 11.1 |
| 54 | 1.5 | 2.23 | 62.81 | 4.4 | 11.2 |
| 55 | 1.44 | 1.99 | 63.46 | 4.2 | 11 |
| 56 | 1.76 | 1.5 | 63.95 | 3.8 | 11.3 |
| 57 | 1.87 | 1.12 | 64.36 | 4.4 | 11 |
| 58 | 2.3 | 1.34 | 62.71 | 4.6 | 10.9 |
| 59 | 2.22 | 1.77 | 61.82 | 4.4 | 10.8 |
| 60 | 2.45 | 2.28 | 61.86 | 4.5 | 10.7 |
| 61 | 2.01 | 2.15 | 62.52 | 4.5 | 10.5 |
| 62 | 2.2 | 2.22 | 64.43 | 4.7 | 10.6 |
Reference picture
Configuration(mm)

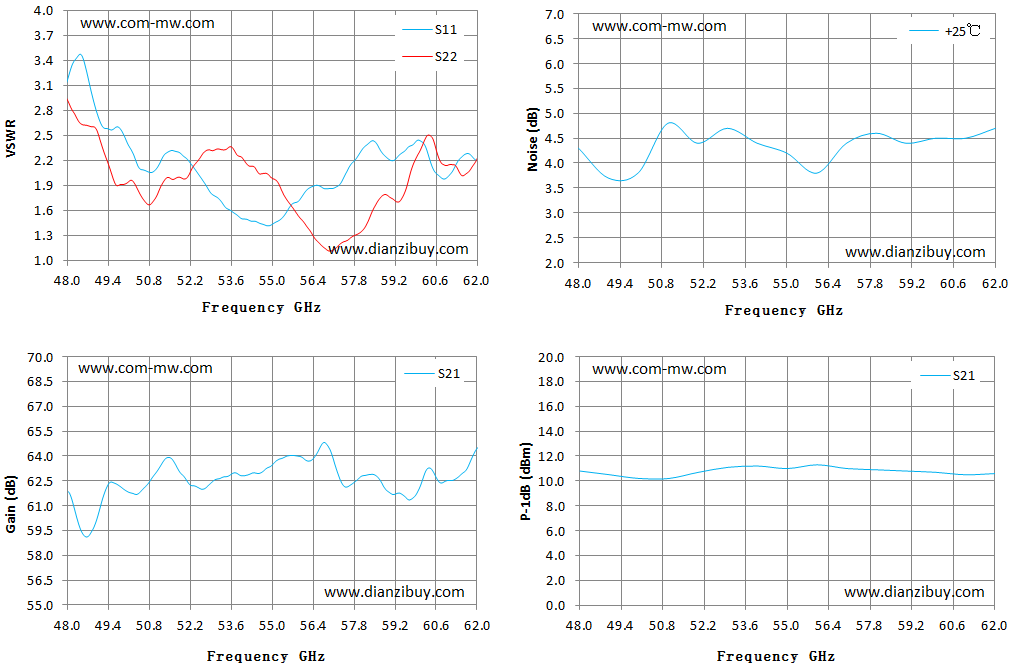

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
