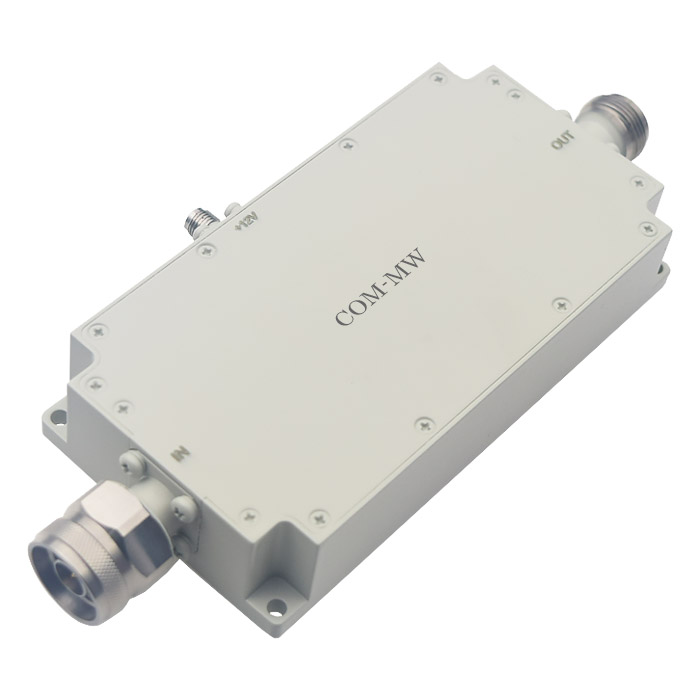

10~15GHz, Gain50dB, Noise figure3dB, P-1dB10dBm, N
Input with RF filter, SMA port power supply

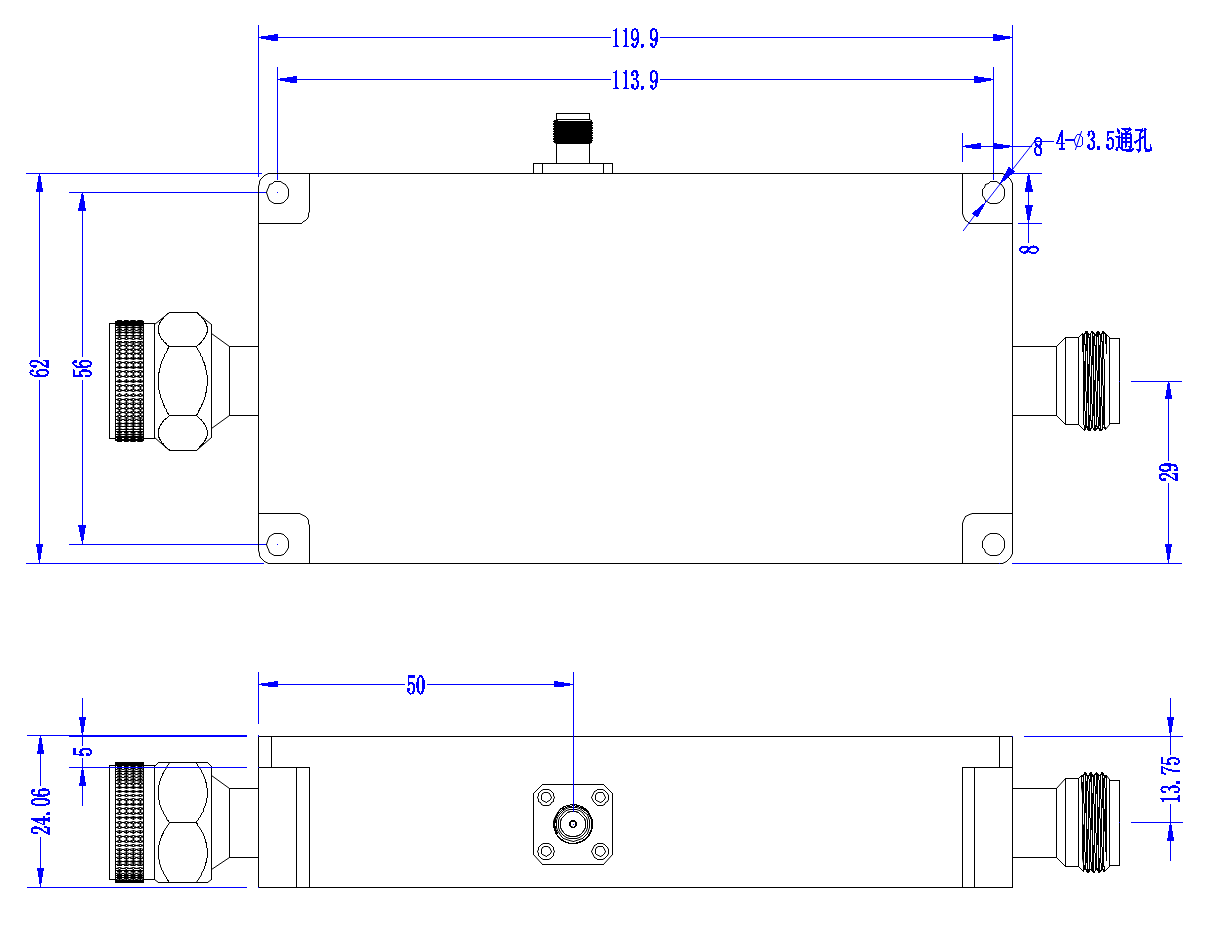

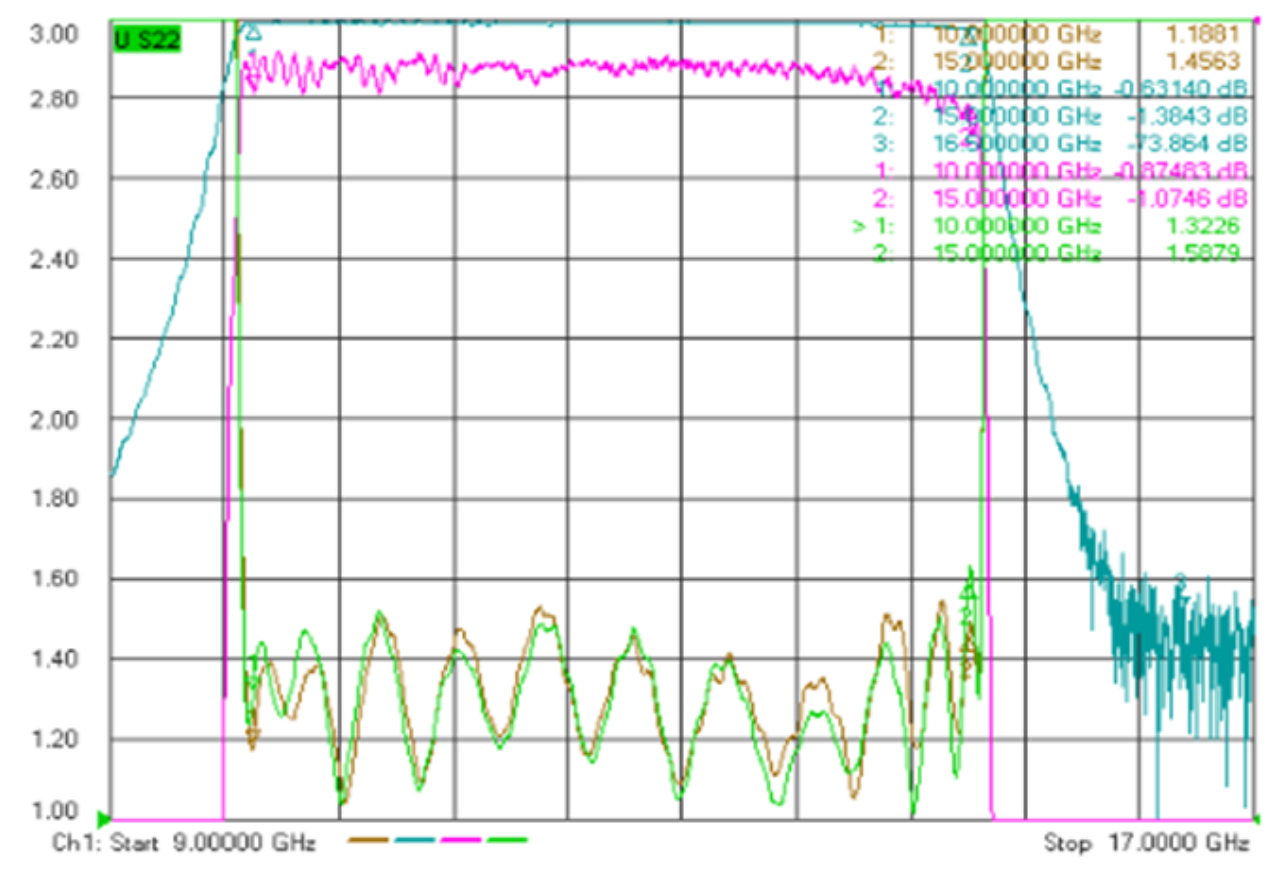

Parameters | Min | Typical | Max | Units |
Frequency | 10 | ~ | 15 | GHz |
Gain | 50 | dB | ||
Gain flatness | ±2 | dB | ||
Noise figure | 3 | dB | ||
VSWR | 2.2 | |||
P-1dB | 10 | dBm |
Connector | N -JK |
Connector material | Stainless steel |
Impedance | 50Ω |
Surface | Grey |
Working voltage | +12-15V |
Working current | 300mA |
Work Temp. | -30~+70℃ Design assurance |
Filter specifications | Input with filter ≥40dB@9000MHz&16500MHz |
Other | Power supply port SMA-K, RF input port N-50J, for outdoor use, waterproof. |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.
