LNA
3~5GHz, Gain50dB, Noise figure3dB, P-1dB10dBm, N, Input with filter
- DLNA8-3-5G-1529
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Input with RF filter, SMA port power supply
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 3 | ~ | 5 | GHz |
| Gain | 50 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | N -JK |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Grey |
| Working voltage | +12-15V |
| Working current | 300mA |
| Work Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Filter specifications | Input with filter ≥40dB@DC-2700MHz&5500MHz |
| Other | Power supply port SMA-K, RF input port N-50J, for outdoor use, waterproof. |

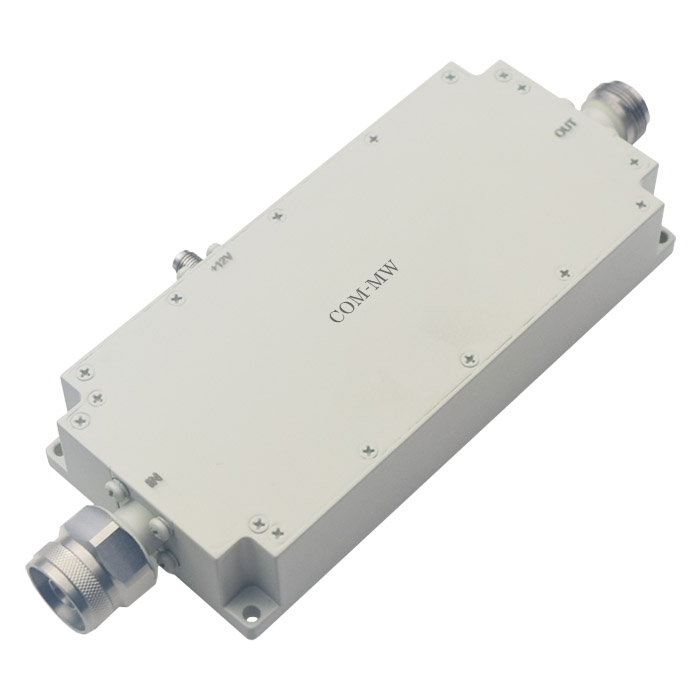

Reference picture

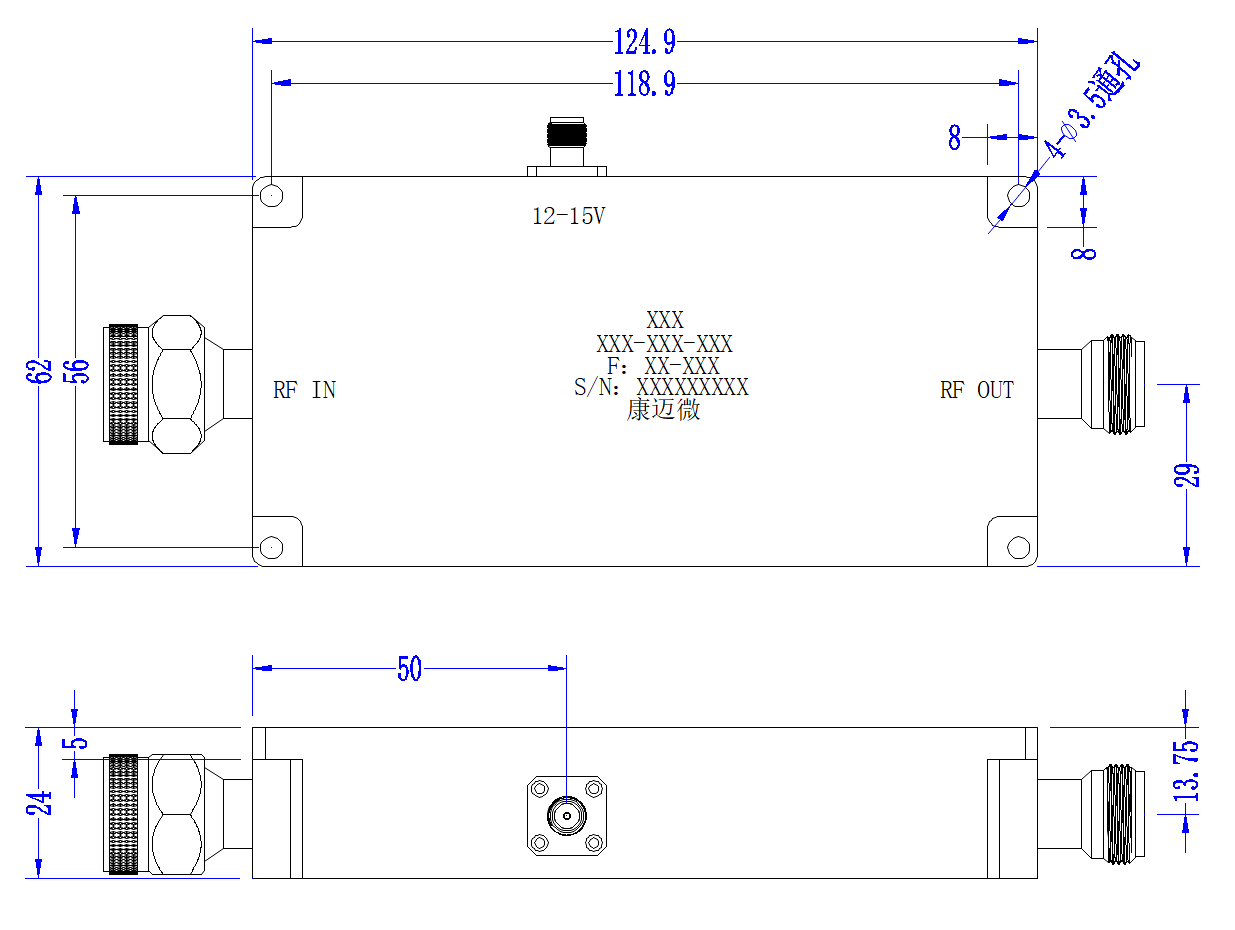

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.
