Power amplifier
0.009~1000MHz, Gain30dB, P-1dB27dBm, Psat27.5dBm, SMA
- DPA8-0.009-1000-3341
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 1000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| VSWR | 2 | |||
| P-1dB | 27 | dBm | ||
| Psat | 27.5 | dBm | ||
| Spur reduction | 60 | dBc | ||
| Max input power | 10 | dBm |
Other parameters
| Connector | SMA |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +12V |
| Working current | 800mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | IP3≥38dBm Design assurance |
Typical test data
| Frequency MHz | S11 VSWR | S22 VSWR | S12增益 dB | P-1dB | S12 1饱和功率 dBm |
| 0.009 | 1.27 | 1.98 | 39.52 | 27.22 | 27.58 |
| 1 | 1.27 | 1.9 | 39.6 | 27.23 | 27.63 |
| 10 | 1.23 | 1.45 | 39.78 | 27.09 | 27.59 |
| 50 | 1.27 | 1.26 | 38.34 | 27.23 | 27.67 |
| 100 | 1.28 | 1.35 | 38.07 | 27.38 | 27.89 |
| 200 | 1.28 | 1.62 | 37.43 | 27.33 | 27.79 |
| 300 | 1.27 | 1.61 | 35.94 | 27.51 | 28.07 |
| 400 | 1.34 | 1.3 | 37.71 | 27.25 | 27.73 |
| 500 | 1.39 | 1.34 | 38.9 | 27.22 | 28.11 |
| 600 | 1.47 | 1.49 | 37.8 | 27.42 | 27.95 |
| 700 | 1.57 | 1.39 | 39.36 | 27.29 | 27.73 |
| 800 | 1.66 | 1.49 | 39.15 | 27.19 | 27.5 |
| 900 | 1.73 | 1.7 | 39.26 | 27.11 | 27.81 |
| 1000 | 1.82 | 1.88 | 38.22 | 27.1 | 27.54 |
Reference picture
Configuration

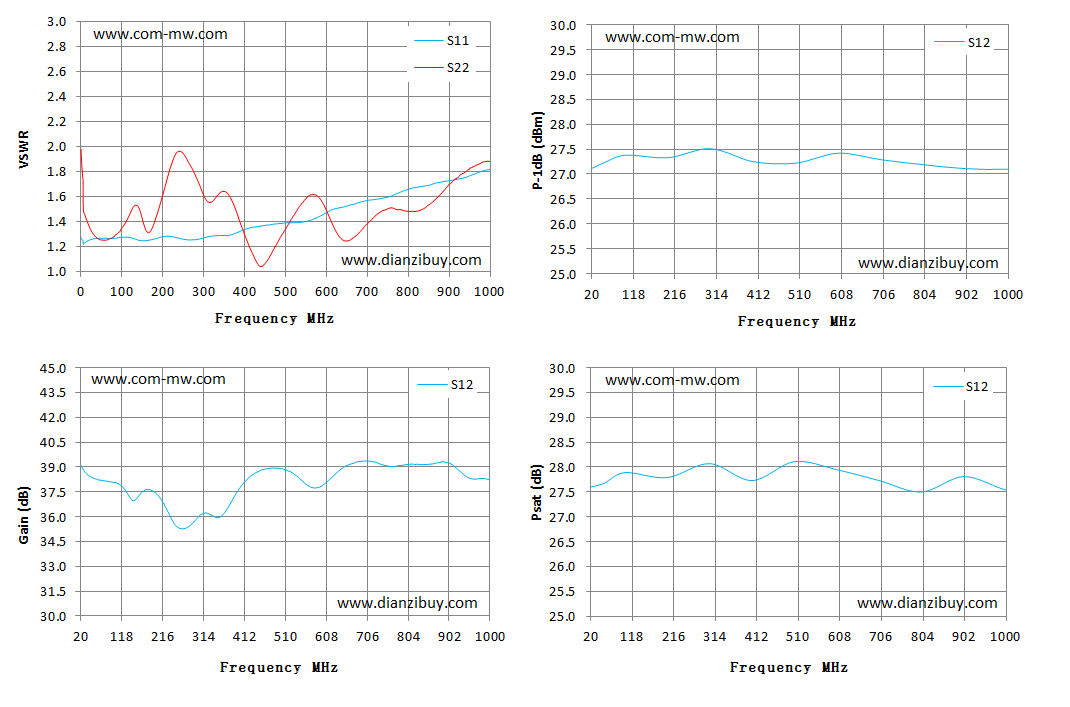

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
