LNA
0.009~300MHz, Gain45dB, Noise figure2.5dB, P-1dB power15dBm, SMA
- DLNA7-0.009-300-1044
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Broadband, high gain.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 300 | MHz |
| Gain | 45 | 52 | dB | |
| Gain flatness | 2 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 1.6 | |||
| P-1dB power | 15 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12-15V |
| Working current | 200mA |
| Work Temp. | -40~+70℃ Design assurance |
| Max input power | 15dBm |
| Other | If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken. |
Typical test data
| F(MHz) | P-1(dBm) | NF(dB） | S11VSWR | S22VSWR | Gain(dB) |
| 0.025 | 15.7 | / | 1.11 | 1.38 | 52.6 |
| 40 | 16 | 2.16 | 1.05 | 1.28 | 52.2 |
| 80 | 16.2 | 2.11 | 1.05 | 1.27 | 52.3 |
| 120 | 16.3 | 2.09 | 1.06 | 1.26 | 52.3 |
| 160 | 16.4 | 2.08 | 1.08 | 1.23 | 52.3 |
| 200 | 16.6 | 2.08 | 1.07 | 1.21 | 52.3 |
| 240 | 16.8 | 2.08 | 1.07 | 1.19 | 52.3 |
| 280 | 16.9 | 2.08 | 1.09 | 1.16 | 52.3 |
| 320 | 16.9 | 2.13 | 1.1 | 1.14 | 52.3 |
| 360 | 17.1 | 2.14 | 1.12 | 1.11 | 52.3 |
| 400 | 17.2 | 2.13 | 1.13 | 1.1 | 53.4 |
Reference picture
Configuration(mm)

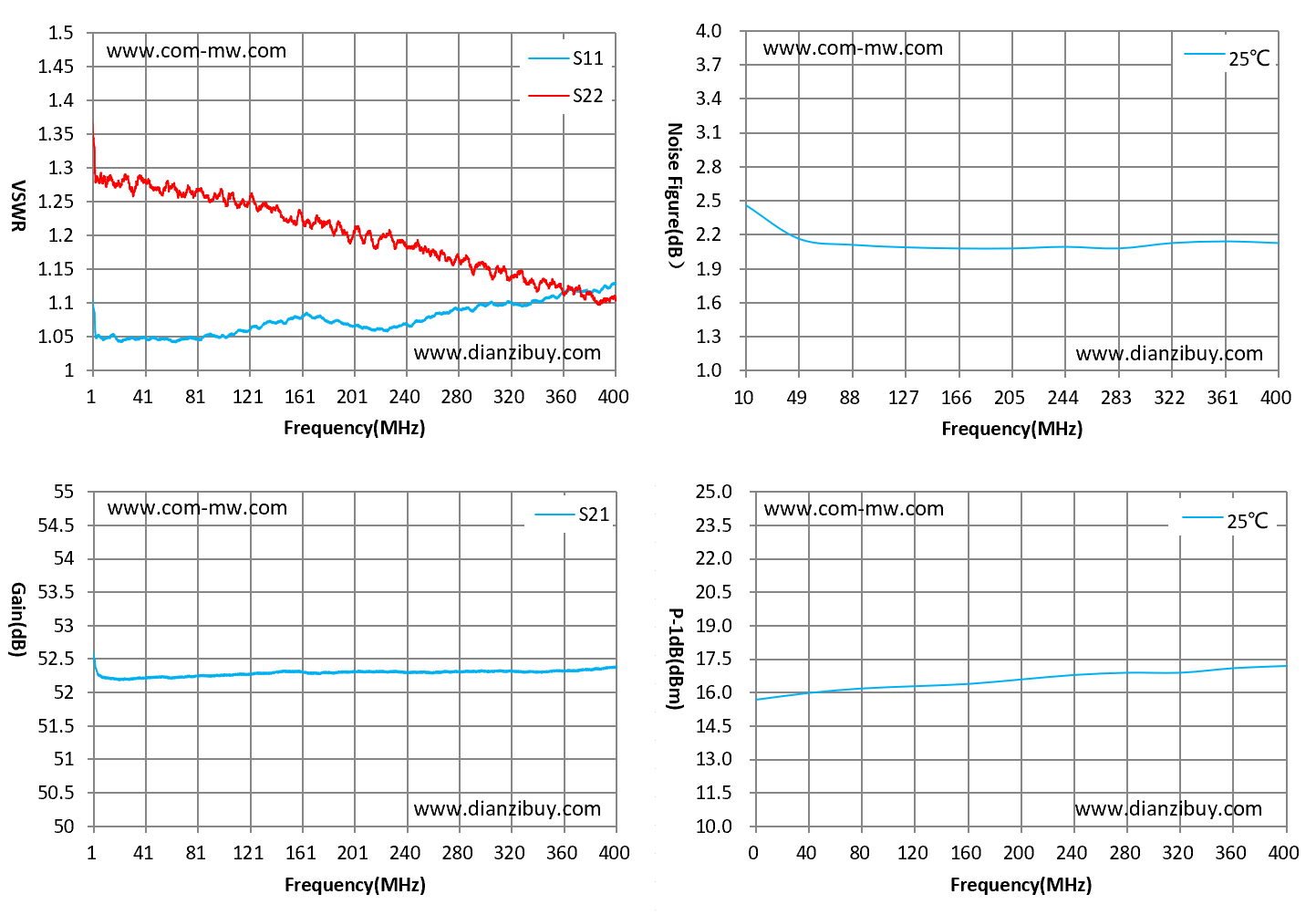

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
