LNA
30~3000MHz, Gain15dB, Noise figure2dB, P-1dB15dBm, SMA, Limiting amplifier
- DLNA7-30-3000-965
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 3000 | MHz |
| Gain | 15 | dB | ||
| Gain flatness | ±0.7 | dB | ||
| Noise figure | 2 | dB | ||
| P-1dB | 15 | dBm | ||
| Max input power | 50 | W |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 100mA |
| Work Temp. | -40~+70℃ |
| Storage Temp. | -50~+85℃ |
| Maximum Input Power | 50W |
| Other | RF output feed, limiting amplifier |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | S21 P-1dB |
| 0.01 | 1.98 | 784.64 | -15.89 | 1.38 | 18.72 |
| 0.29 | 1.56 | 1.23 | 20.3 | 0.9 | 18.96 |
| 0.57 | 1.36 | 1.23 | 20.2 | 1.05 | 18.9 |
| 0.86 | 1.13 | 1.14 | 20.16 | 1.49 | 18.6 |
| 1.15 | 1.04 | 1.14 | 20.11 | 1.11 | 18.4 |
| 1.43 | 1.19 | 1.21 | 20.02 | 1.25 | 18.3 |
| 1.72 | 1.3 | 1.17 | 19.89 | 1.1 | 17.98 |
| 2 | 1.34 | 1.16 | 19.95 | 1.16 | 18.5 |
| 2.29 | 1.28 | 1.2 | 19.9 | 1.34 | 17.9 |
| 2.57 | 1.18 | 1.21 | 19.79 | 1.4 | 18.4 |
| 2.86 | 1.07 | 1.21 | 19.58 | 1.3 | 19 |
| 3.14 | 1.12 | 1.27 | 19.24 | 1.43 | 19 |
| 3.43 | 1.28 | 1.33 | 19.04 | 1.41 | 19.6 |
| 3.71 | 1.36 | 1.34 | 18.94 | 1.38 | 19.2 |
| 4 | 1.32 | 1.27 | 18.7 | 1.39 | 19.6 |

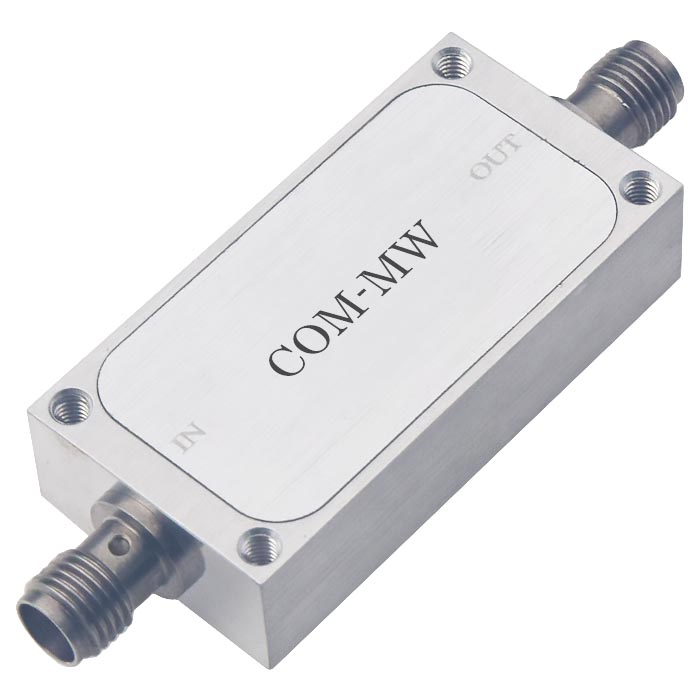

Reference picture

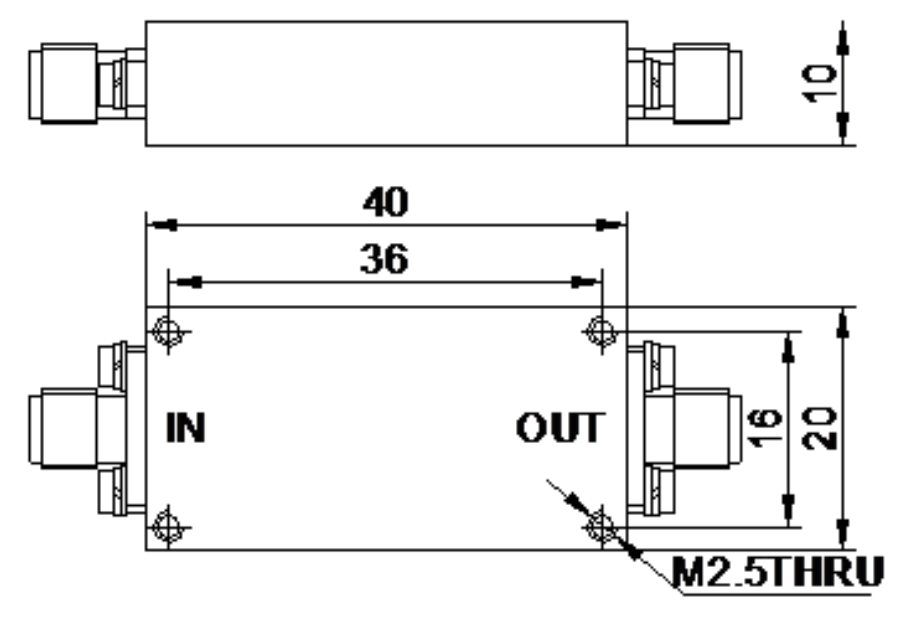

Configuration(mm)

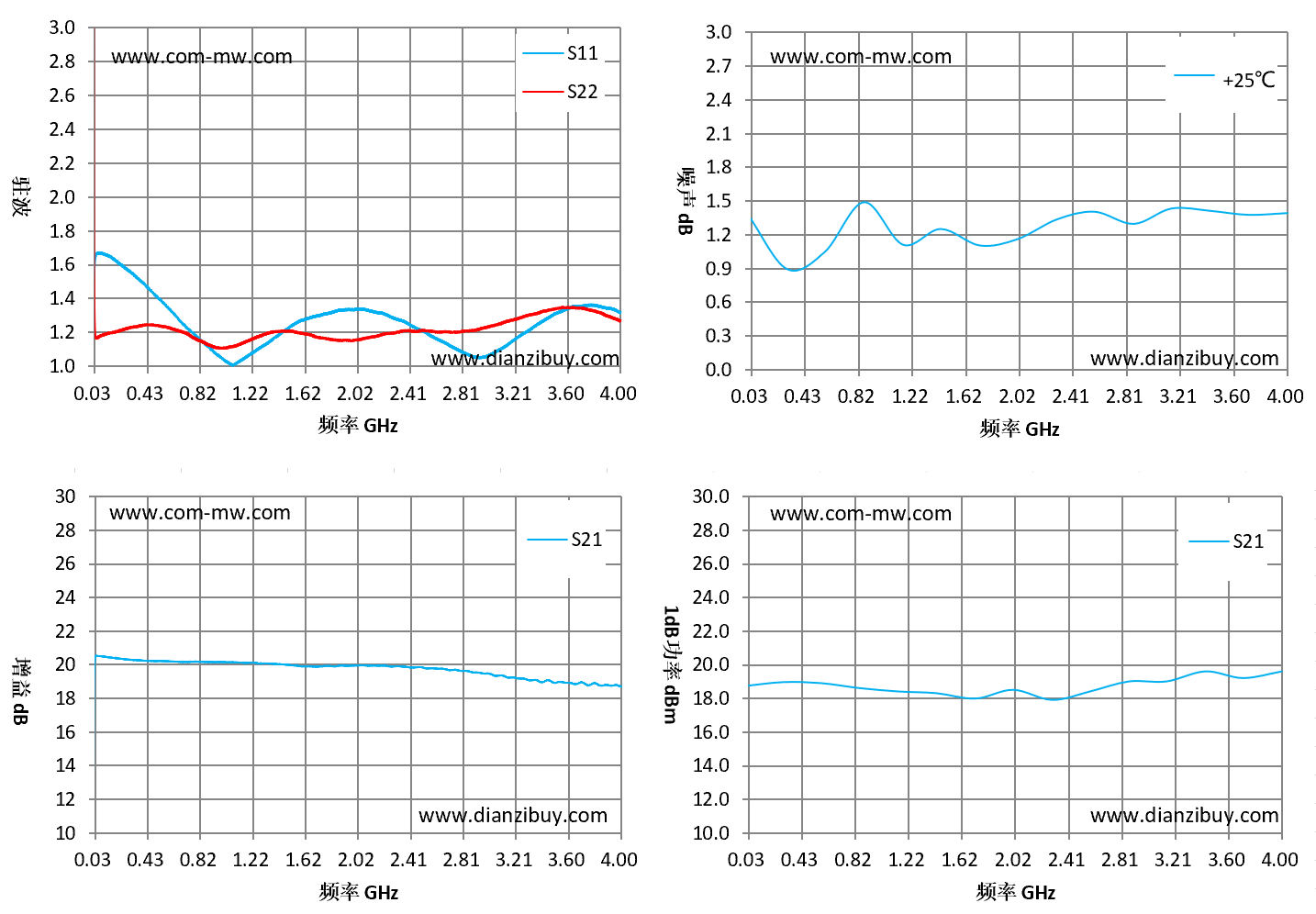

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
