LNA
18~40GHz, Gain47dB, Noise figure4.2dB, P-1dB10dBm, 2.92
- DLNA8-18-40G-3025
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 47 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 4.2 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm | ||
| Max input power | 10 | dBm |
Other parameters
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +220V |
| Work Temp. | -20~+60℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 1066+2071 |
Instructions for use
| 1 | Power supply method 1 | 110-220V power input, standard AC interface, 12-15V/5W output. |
| 2 | Power supply method 2 | DC power supply, powered by a 220V power adapter with interface DC5.5mm (outer diameter) * 2.5mm (inner diameter). |
| 3 | DC output | The DC power supply voltage is determined by the input voltage of the internal module. |
| 4 | Instructions for using the power switch | 220V and DC power supply cannot be used simultaneously. |
| 5 | Shell Material | Shell aluminum material |
| 6 | Surface color | Anodizing treatment (blue) |
Parts list
| 1 | Standard configuration | 220V AC power cord |
| 2 | Optional | Equipped with a power adapter |
| 3 | Other | 产品测试报告及合格证等相关文件 |
Reference picture

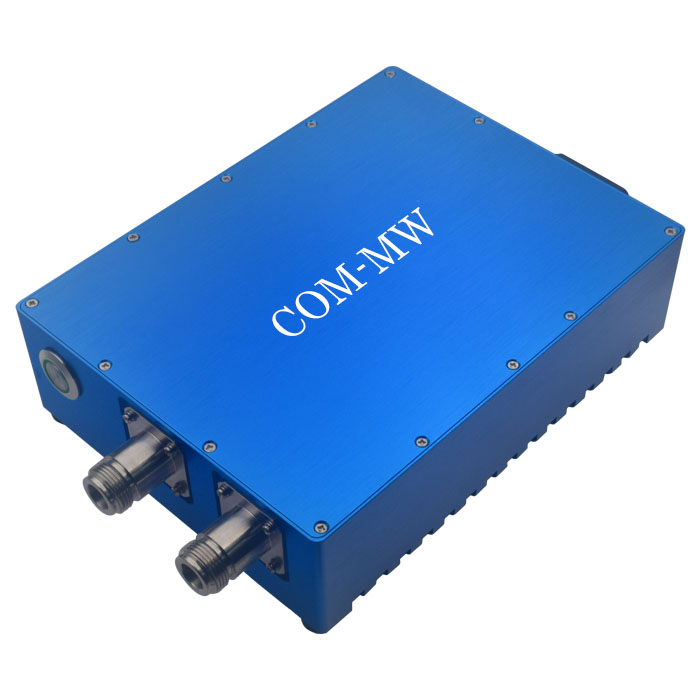

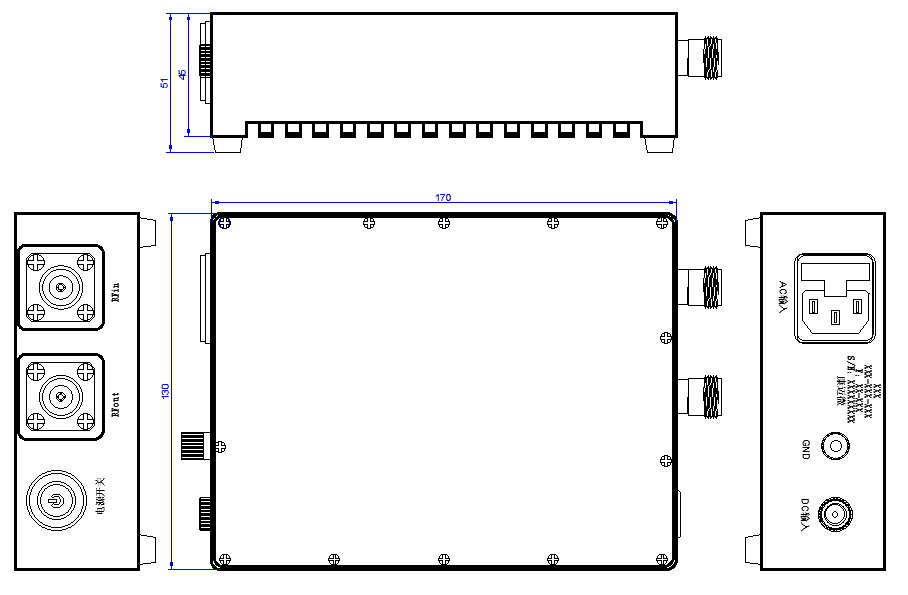

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
