Component
12V DC power supply, supporting 110-220V power supply and battery power supply.
- ZS8-C0.009-3000-3404
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 3000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | 3 | 5 | dB | |
| Noise figure | 4 | dB | ||
| VSWR | 2 | |||
| P-1dB | 15 | dBm | ||
| Max input power | 2 | W |
Product Application
| Connector | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Operation Temp. | -30~+60℃ Design assurance |
| Application | Used for indoor and outdoor RF testing platforms, it can power active devices such as RF amplifiers. Adapt to COM-MW low noise amplifier and power power amplifier. |
| Characteristic | 12V DC power supply, supporting 110-220V power supply and battery power supply. |
Instructions for use
| 1 | RF Port | N-K |
| 2 | Power supply method 1 | 110-220V power input, standard AC interface, 12-15V/5W output. |
| 3 | Power supply method 2 | 10 units, powered by No. 5 battery, with a 12-15V output. |
| 4 | Power supply method 3 | DC power supply, powered by a 220V power adapter with interface DC5.5mm (outer diameter) * 2.5mm (inner diameter). |
| 5 | Operation Temp. | - 40 ~ + 70 ℃ Design assurance |
| 6 | Surface color | White |
| 7 | Shell Material | Shell aluminum material |
| 8 | Battery operating time | The battery powered working time is approximately 6-10 hours, depending on the battery capacity and internal module power consumption. |
| 9 | DC output | The DC power supply voltage is determined by the internal template input voltage. |
| 10 | Instructions for using the power switch | The power switch can only control 220V and the battery box, and there is no switch for DC power supply. |
| 11 | Replacing the battery | Replace the battery and remove the screws from the battery cover. |

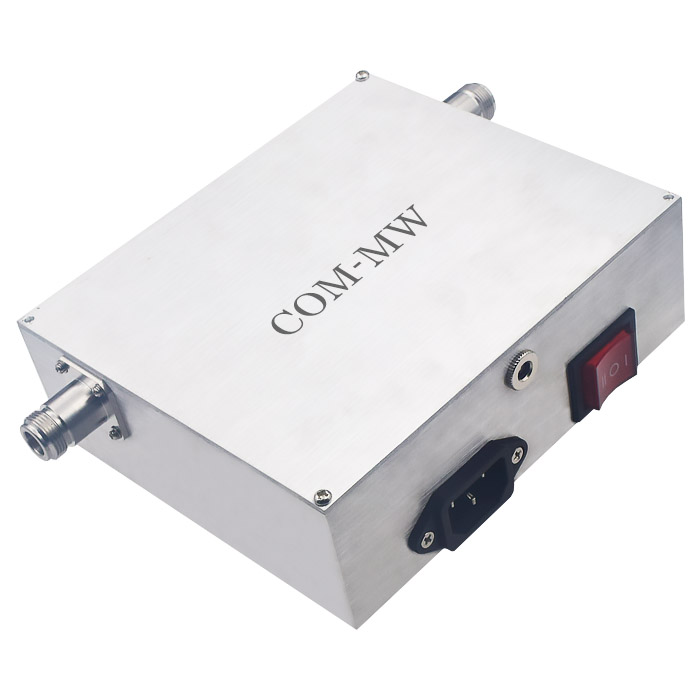

Reference picture

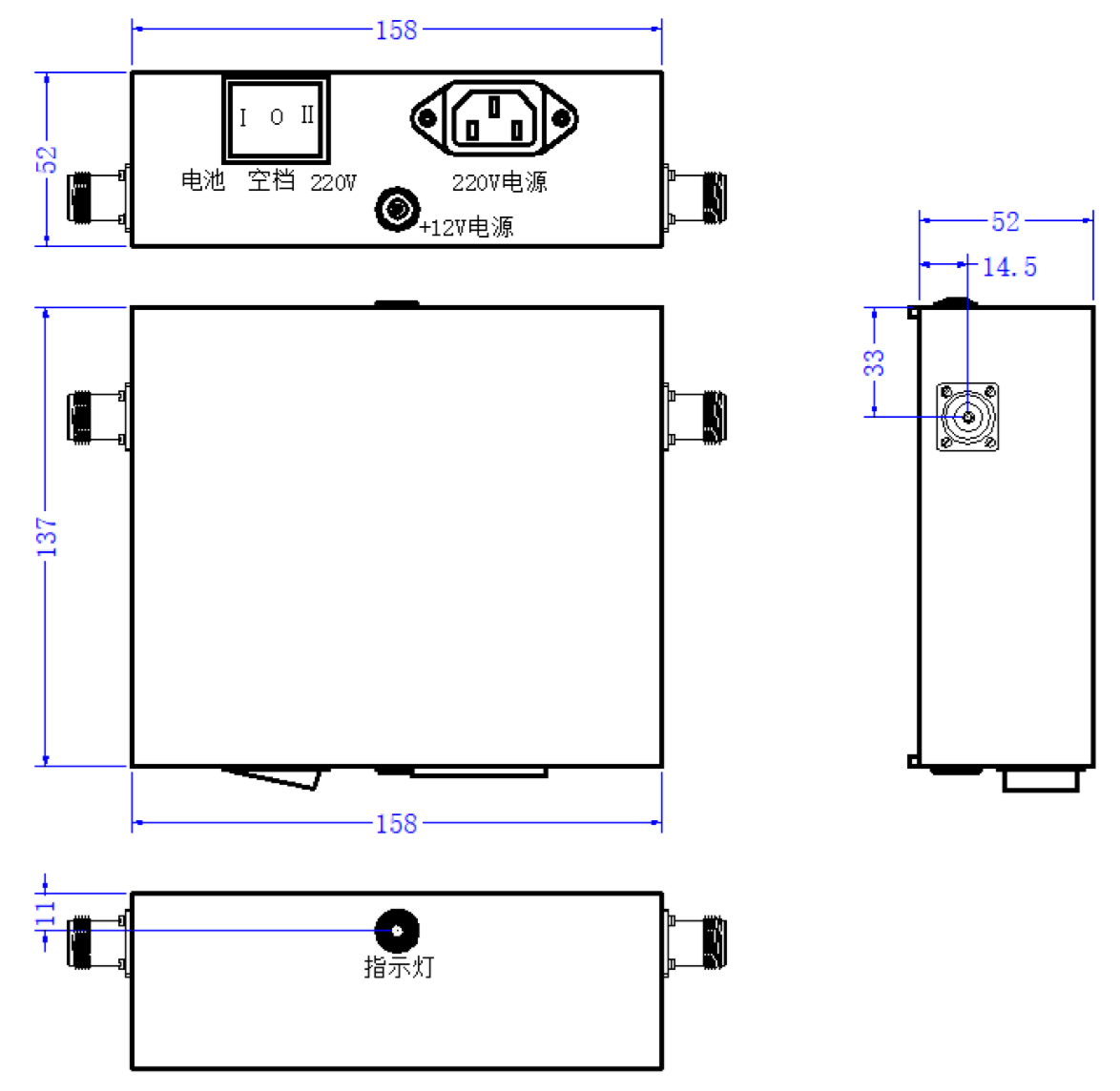

Configuration(mm)
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
