LNA
0.009~1000MHz, Gain50dB, Noise figure2.5dB, P-1dB13dBm, SMA
- DLNA8-0.009-1000-1721-A2
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 1000 | MHz |
| Gain | 50 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2 | |||
| P-1dB | 13 | dBm |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | 25 ℃ noise | S21 gain | S21 P-1dB |
| 0.009 | 1.33 | 1.61 | 2.66 | 52.5 | 15.69 |
| 107 | 1.21 | 1.41 | 2.19 | 55.48 | 16.85 |
| 214 | 1.21 | 1.38 | 2.15 | 55.41 | 16.95 |
| 321 | 1.22 | 1.38 | 2.12 | 55.33 | 17 |
| 429 | 1.25 | 1.36 | 2.22 | 55.21 | 16.97 |
| 536 | 1.26 | 1.34 | 2.21 | 55.14 | 16.92 |
| 643 | 1.25 | 1.32 | 2.26 | 55.09 | 16.88 |
| 750 | 1.25 | 1.28 | 2.33 | 55.06 | 16.88 |
| 857 | 1.24 | 1.28 | 2.42 | 54.97 | 16.79 |
| 964 | 1.22 | 1.27 | 2.42 | 54.88 | 16.72 |
| 1071 | 1.22 | 1.28 | 2.44 | 54.76 | 16.68 |
| 1179 | 1.23 | 1.29 | 2.44 | 54.69 | 16.58 |
| 1286 | 1.27 | 1.29 | 2.45 | 54.62 | 16.33 |
| 1393 | 1.34 | 1.3 | 2.55 | 54.51 | 16.26 |
| 1500 | 1.43 | 1.33 | 2.58 | 54.35 | 16.09 |
Reference picture
Configuration(mm)

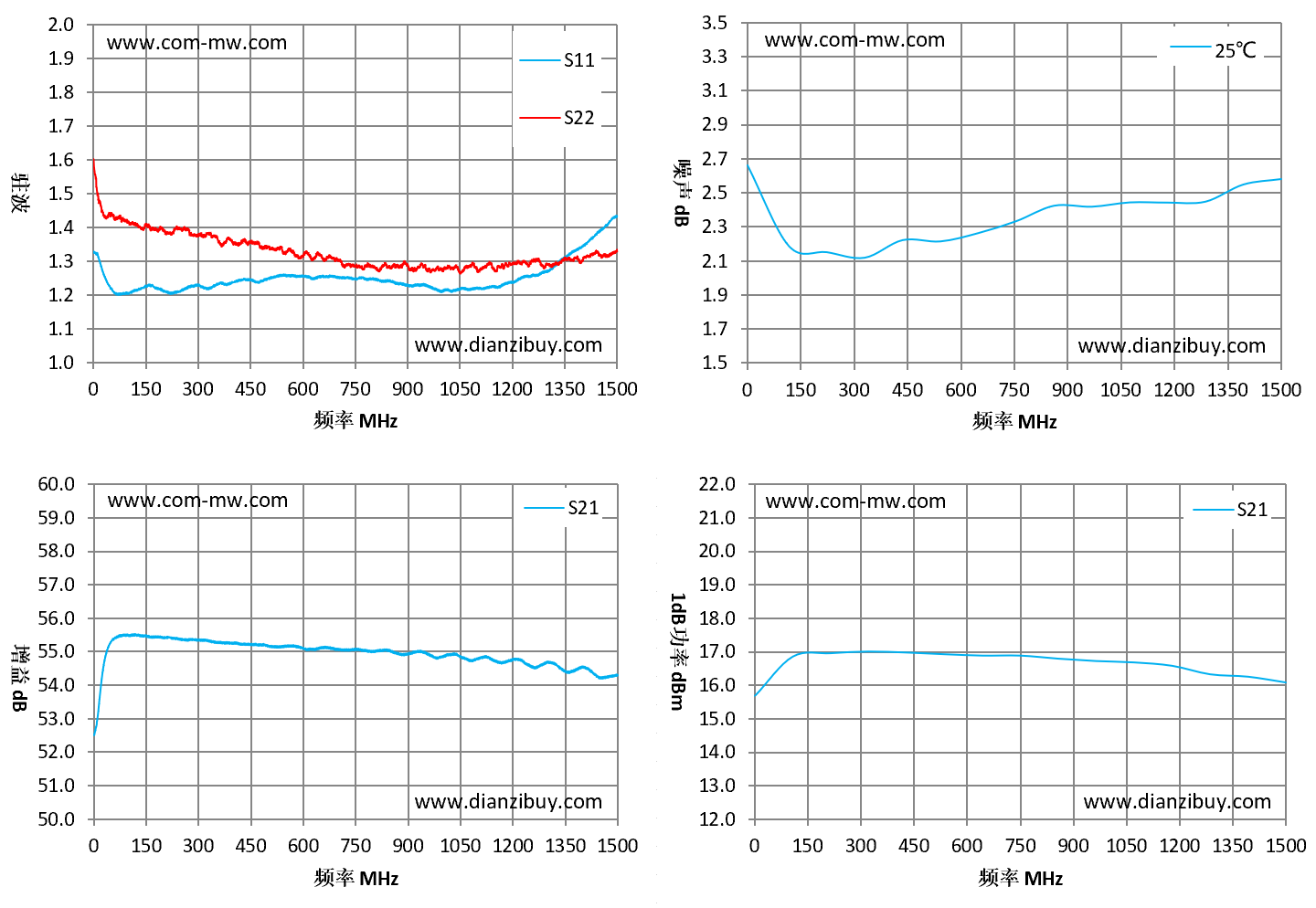

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
