LNA
1~2GHz, Gain45dB, Noise figure3dB, P-1dB10dBm, N
- DLNA8-1000-2000-1598
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 2 | GHz |
| Gain | 45 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm | ||
| Max input power | 0 | dBm |
Other parameters
| Connector | N -JK |
| Connector material | Stainless steel |
| Weight | ＜1.5kg |
| Impedance | 50Ω |
| Surface | Black |
| Working voltage | +5V |
| Work Temp. | -0~+50℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Built in rechargeable battery, with a battery life of over 4 hours, equipped with a charger( 5v@2.5a )And charging cable |

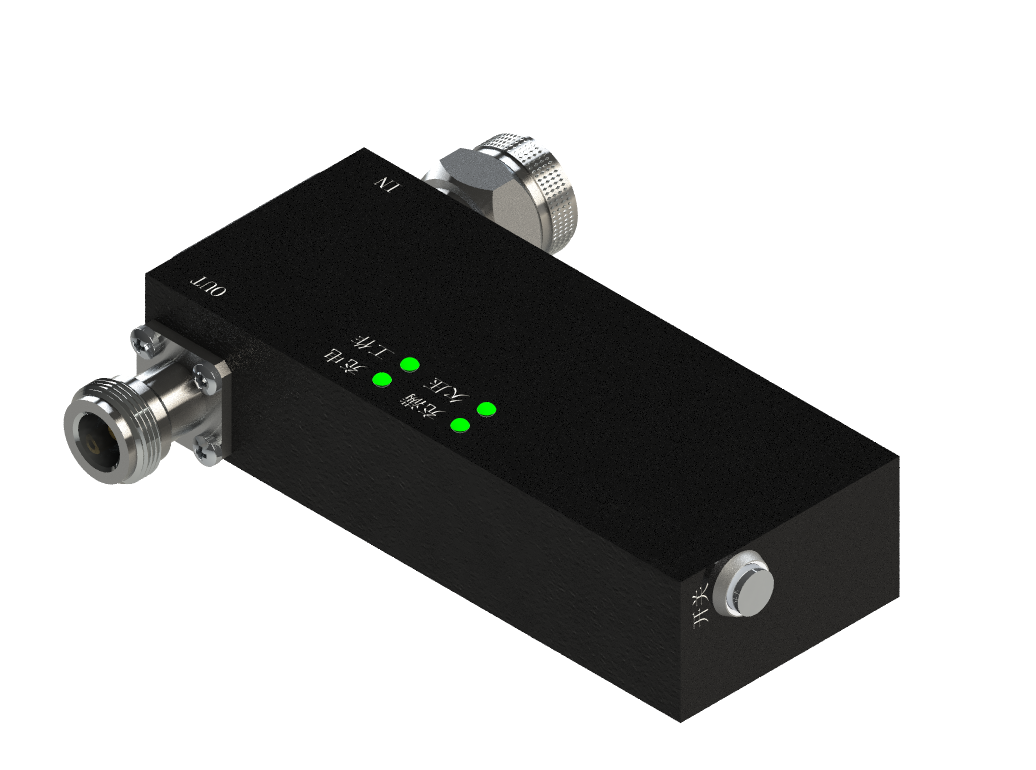

Reference picture

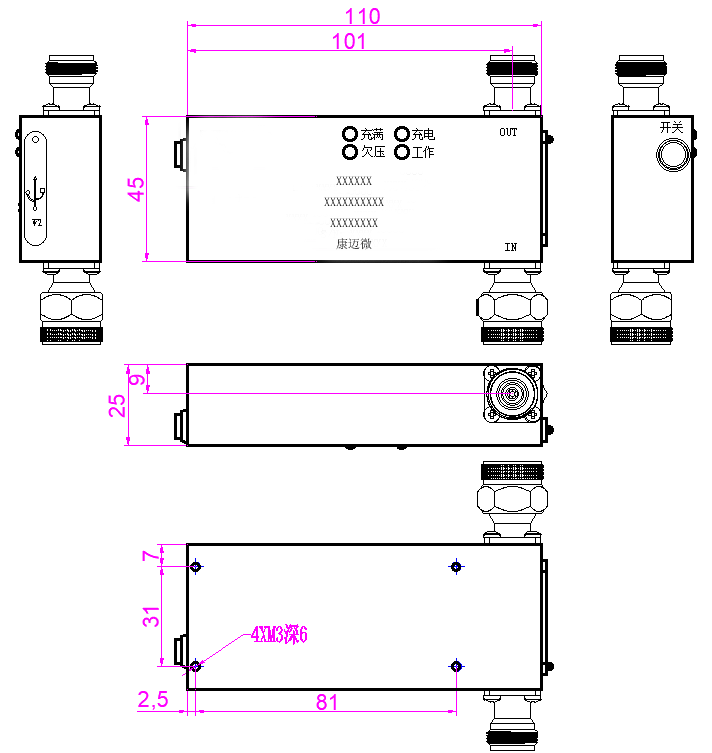

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
