Power amplifier
24~34GHz, Gain14dB, P-1dB24dBm, Psat29dBm, 2.92
- DPA8-24-34-3142
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
High power
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 24 | ~ | 34 | GHz |
| Gain | 14 | dB | ||
| Gain flatness | ±2 | dB | ||
| VSWR | 2@24~25GHz;2.5@25~34GHz; | |||
| P-1dB | 24 | dBm | ||
| Psat | 29 | dBm |
Environmental
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 1000mA |
| Work Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency (G) | S11 VSWR | S22 VSWR | S21 Gain dB | S21 P-1dB | S21 Psat dBm |
| 22 | 2.63 | 1.44 | 15.02 | 27.9 | 29.2 |
| 23 | 1.56 | 1.76 | 15.03 | 27 | 29.2 |
| 24 | 1.41 | 1.92 | 15.65 | 27.8 | 30 |
| 25 | 1.82 | 1.76 | 16.27 | 28.1 | 30.8 |
| 25 | 1.82 | 1.76 | 16.27 | 28.1 | 30.8 |
| 26 | 1.4 | 1.45 | 16.8 | 28.2 | 30.9 |
| 27 | 1.09 | 1.24 | 16.92 | 28.9 | 31.9 |
| 28 | 1.36 | 1.3 | 16.62 | 28.9 | 31.5 |
| 29 | 1.81 | 1.51 | 16.36 | 27.9 | 31.5 |
| 30 | 1.61 | 1.69 | 16.17 | 27.3 | 31.11 |
| 31 | 1.38 | 1.9 | 16.66 | 26.9 | 31 |
| 32 | 1.7 | 2.09 | 16.66 | 26.7 | 30.8 |
| 33 | 1.8 | 2.17 | 16.62 | 25.8 | 31 |
| 34 | 1.1 | 2.12 | 18.11 | 27.1 | 31.7 |
| 35 | 1.72 | 1.84 | 18.2 | 27.3 | 32.5 |
| 36 | 1.51 | 1.57 | 18.52 | 28 | 32.2 |

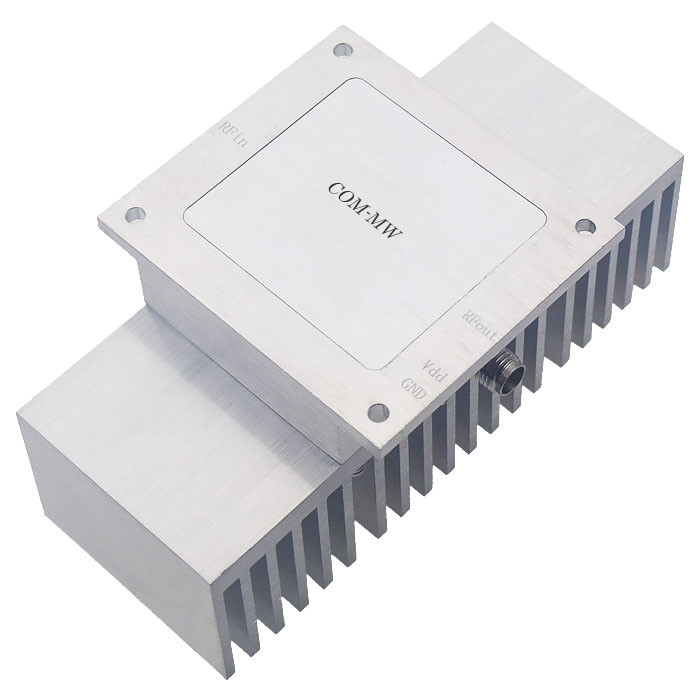

Reference picture

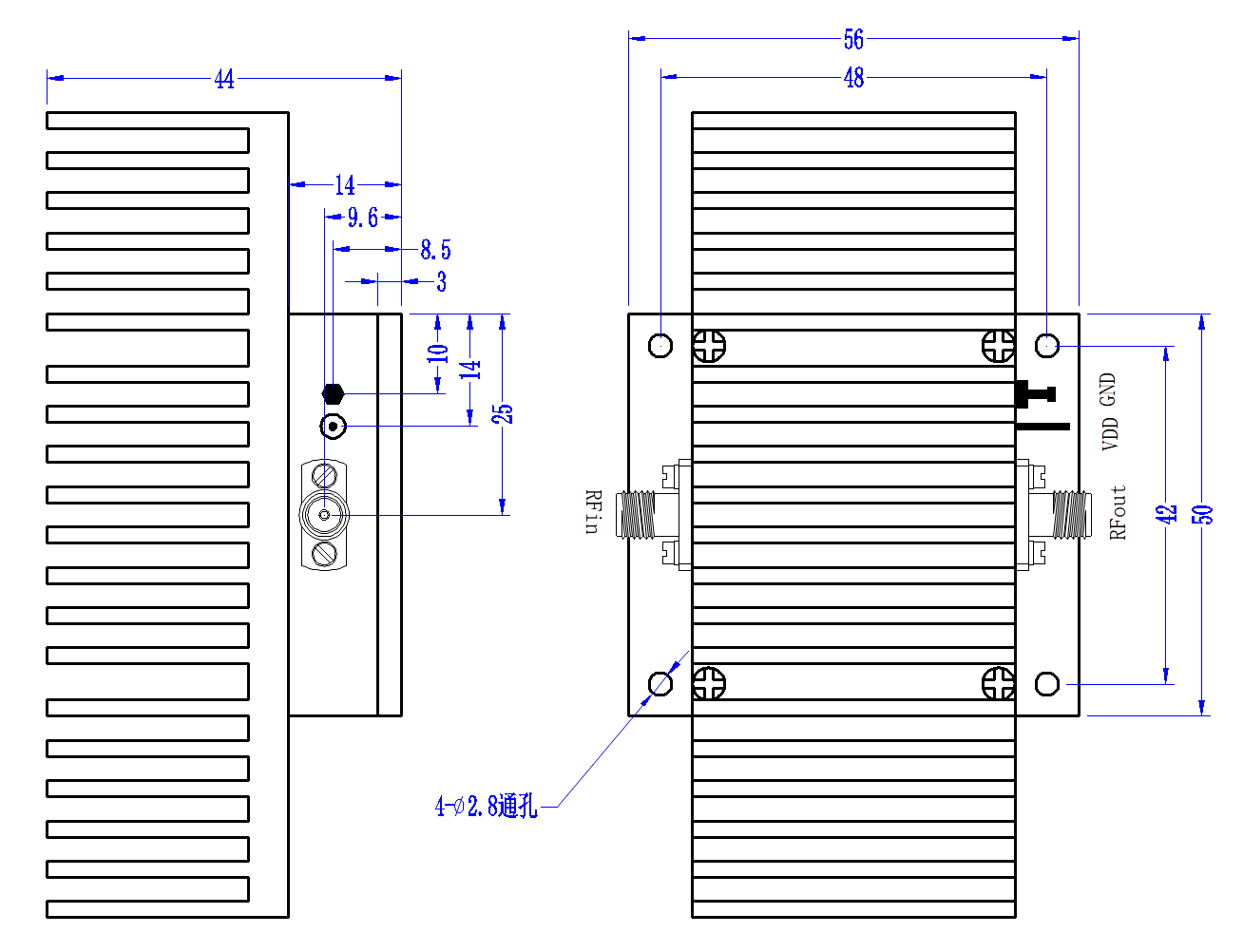

Configuration

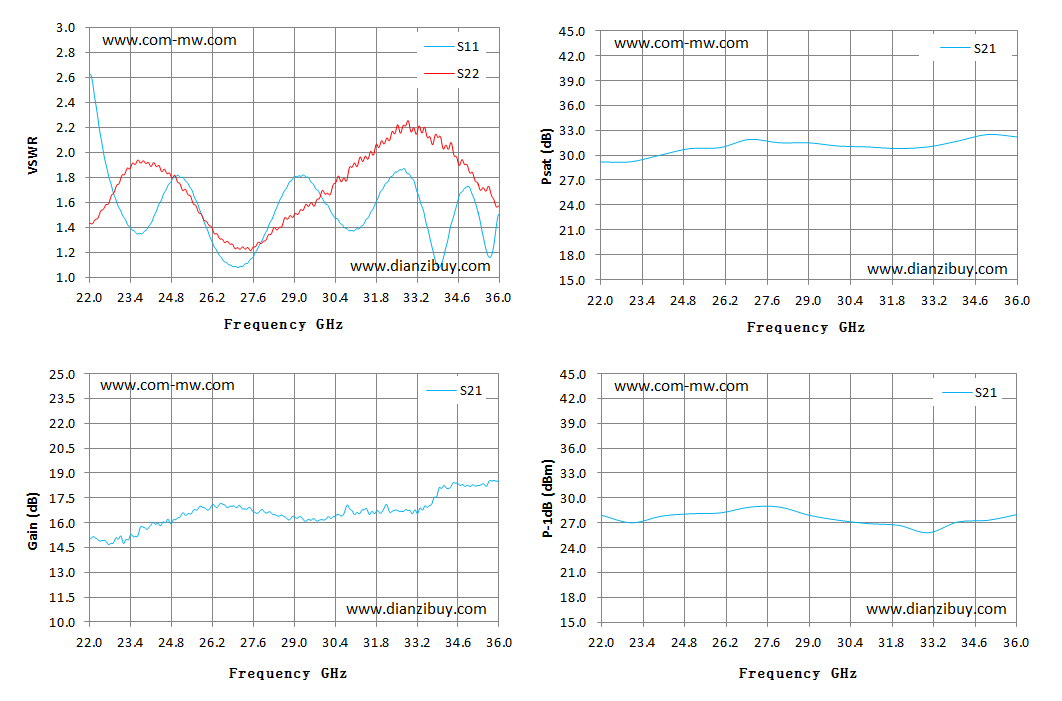

Typical test curve
