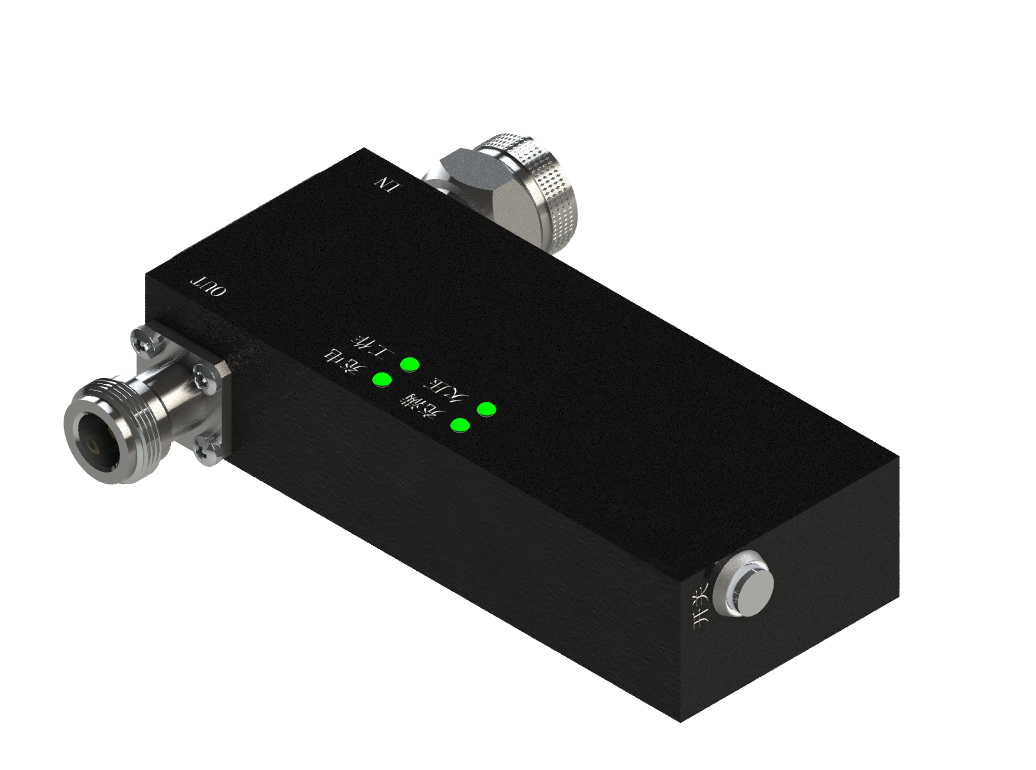

4~8GHz, Gain40dB, Noise figure4.5dB, P-1dB10dBm, N
Parameters | Min | Typical | Max | Units |
Frequency | 4 | ~ | 8 | GHz |
Gain | 40 | dB | ||
Gain flatness | ±2 | dB | ||
Noise figure | 4.5 | dB | ||
VSWR | 2 | |||
P-1dB | 10 | dBm | ||
Max input power | 10 | dBm |
Connector | N -JK |
Connector material | Stainless steel |
Weight | <1.5kg |
Impedance | 50Ω |
Surface | Black |
Working voltage | +5V |
Work Temp. | -0~+50℃ Design assurance |
Quality Grade | Industrial grade |
Other | Built in rechargeable battery, with a battery life of over 4 hours, equipped with a charger( 5v@2.5a )And charging cable |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
