Power amplifier
1~18GHz, Gain30dB, Psat30dBm, SMA, Support 220V AC power supply
- DPA8-1000-18000-1756
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Broadband, multiple power supply modes.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 18 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | 4 | dB | ||
| VSWR | 2.5 | |||
| Psat | 30 | dBm |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +15V或+220V |
| Working current | 1500mA@15V |
| Work Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Support 220V AC power supply |
Function Description
1. The power switch is set to neutral by default and can only control 220V power supply. 2. DC power supply has no switch, plug and play, and the DC power supply interface is DC5.5mm (outer diameter) * 2.5mm (inner diameter). 3. Matching+ 15v@2a ac adapter

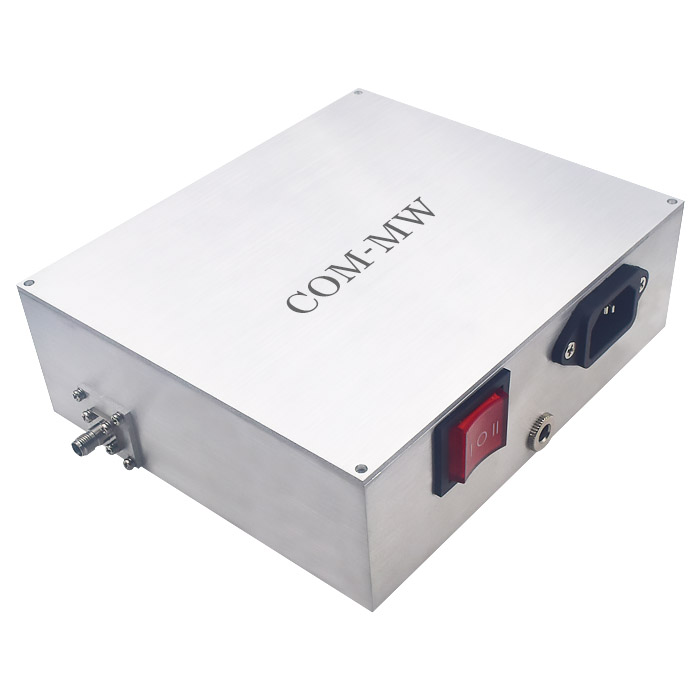

Reference picture
Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
