LNA
3.5~6.5GHz, Gain35dB, Noise figure1.8dB, P-1dB12dBm
- DLNA8-3.5-6.5G-3471
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Low noise, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 3.5 | ~ | 6.5 | GHz |
| Gain | 33 | 35 | dB | |
| Gain flatness | ±1.5 | dB | ||
| Noise figure | 1.6 | 1.8 | dB | |
| VSWR | 1.6 | 1.8 | ||
| P-1dB | 12 | dBm | ||
| OIP3 | 25 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 150mA |
| Reverse isolation | 50dB |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain | Noise dB | P1dB dBm | Psat dBm |
| 2 | 2.33 | 1.24 | 30.98 | 2.75 | 15.66 | 16.46 |
| 2.43 | 1.59 | 1.19 | 33.48 | 1.85 | 15.43 | 16.46 |
| 2.86 | 1.37 | 1.21 | 34.99 | 1.88 | 15.35 | 16.6 |
| 3.29 | 1.33 | 1.22 | 35.71 | 1.68 | 15.44 | 16.7 |
| 3.71 | 1.3 | 1.24 | 35.79 | 1.49 | 15.56 | 16.8 |
| 4.14 | 1.27 | 1.24 | 35.72 | 1.52 | 15.4 | 16.8 |
| 4.57 | 1.26 | 1.21 | 35.68 | 1.57 | 15.2 | 16.7 |
| 5 | 1.27 | 1.15 | 35.72 | 1.53 | 14.67 | 16.5 |
| 5.43 | 1.28 | 1.1 | 35.7 | 1.38 | 14.47 | 16.75 |
| 5.86 | 1.26 | 1.14 | 35.5 | 1.34 | 13.76 | 16.4 |
| 6.29 | 1.21 | 1.3 | 34.9 | 1.33 | 13.1 | 17.1 |
| 6.71 | 1.13 | 1.59 | 33.49 | 1.3 | 11.9 | 16.5 |
| 7.14 | 1.15 | 2.4 | 28.72 | 1.3 | 9.73 | 13.9 |
| 7.57 | 1.32 | 2.51 | 28.03 | 1.4 | 11.23 | 13 |
| 8 | 1.63 | 2.11 | 30.14 | 1.36 | 12 | 14.3 |

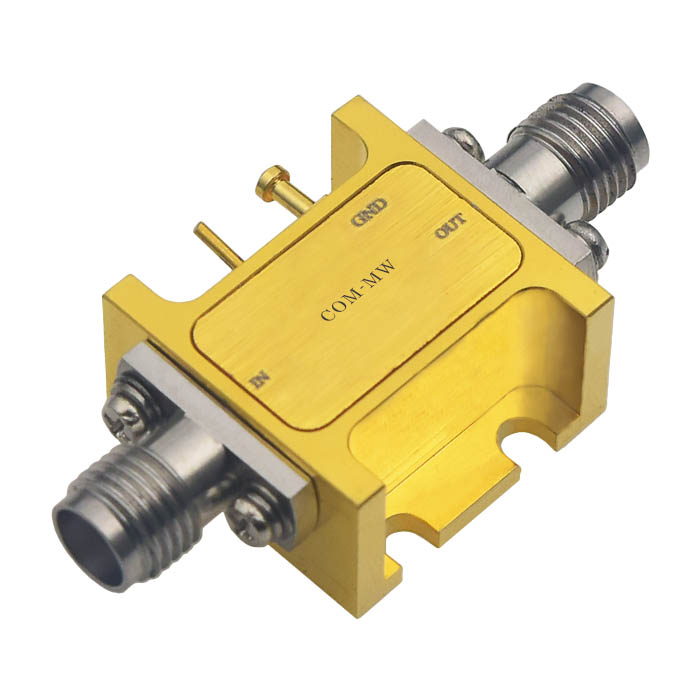

Reference picture

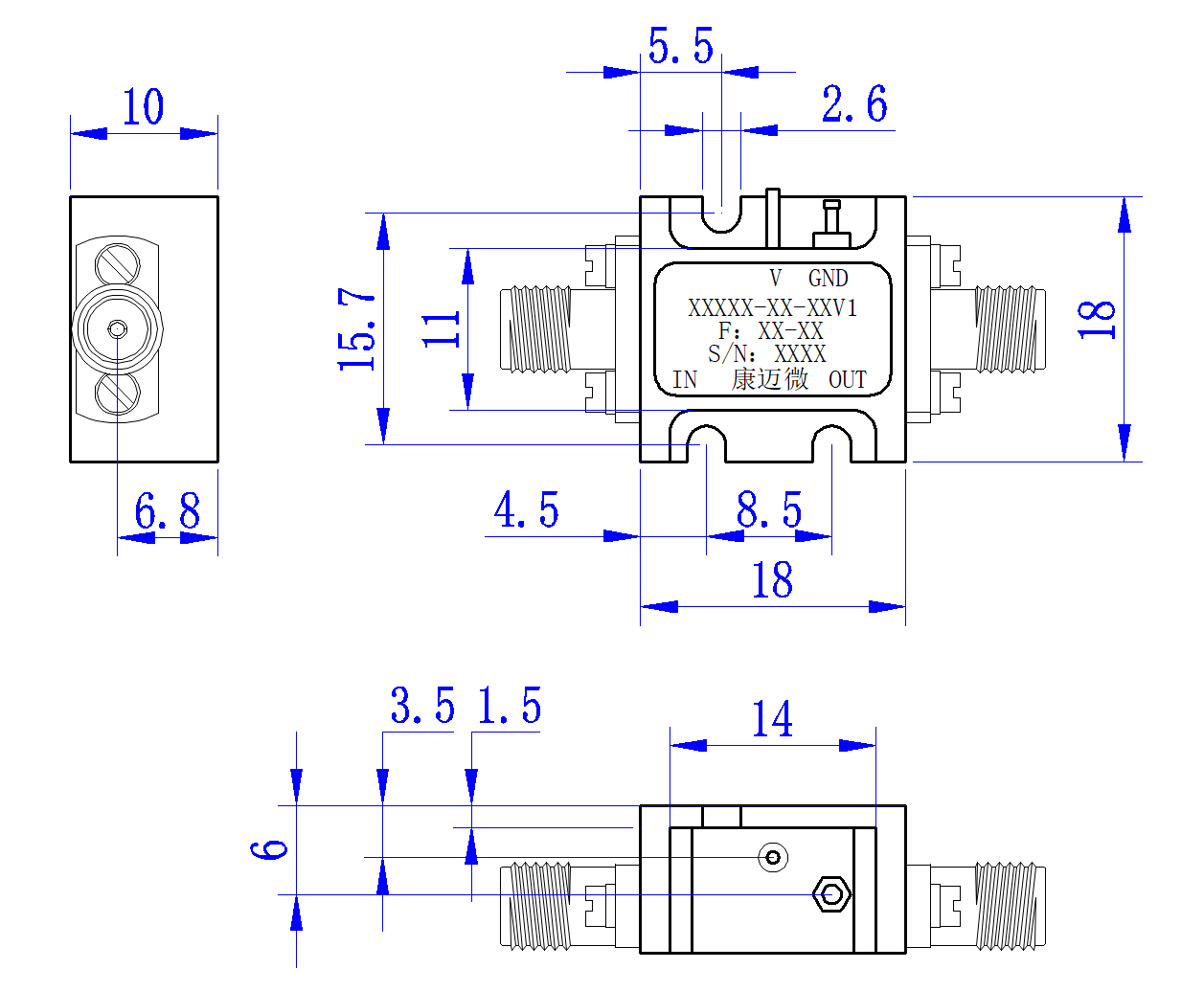

Configuration(mm)

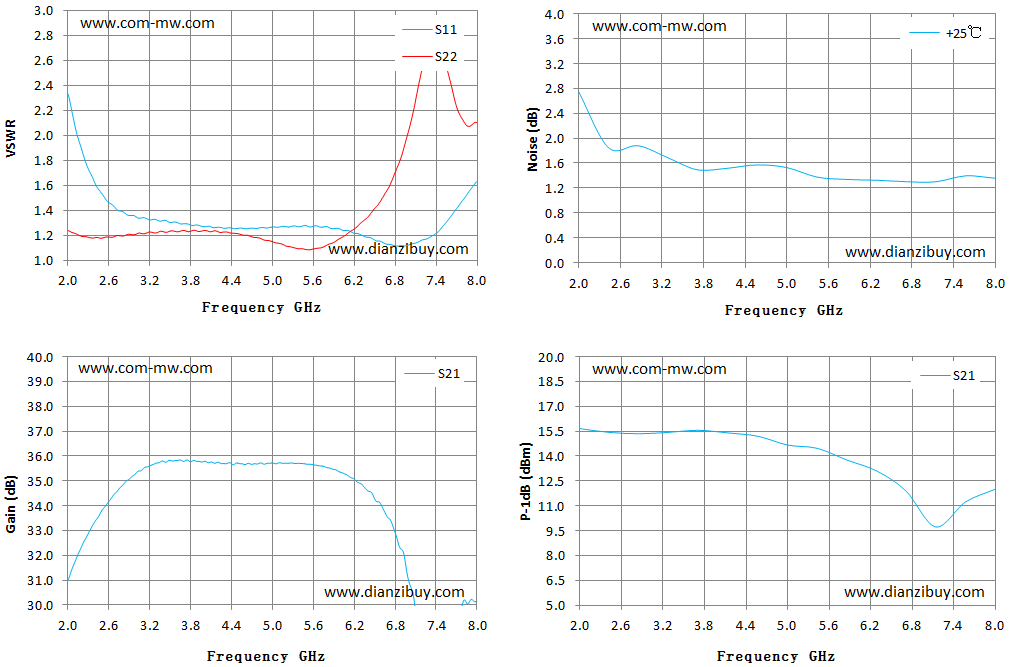

Typical test curve
