LNA
240~270MHz, Gain35dB, Noise figure2.5dB, P-1dB15dBm, N
- DLNA8-240-270-2157
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 240 | ~ | 270 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2.0 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | N -JK |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 300mA |
| Work Temp. | -35~+65℃ Design assurance |
| Other | 1、全国产化设计 |
| 2、馈电接口:SMA-k | |
| 3、输入接口:N-J | |
| 4、输出接口:N-K |

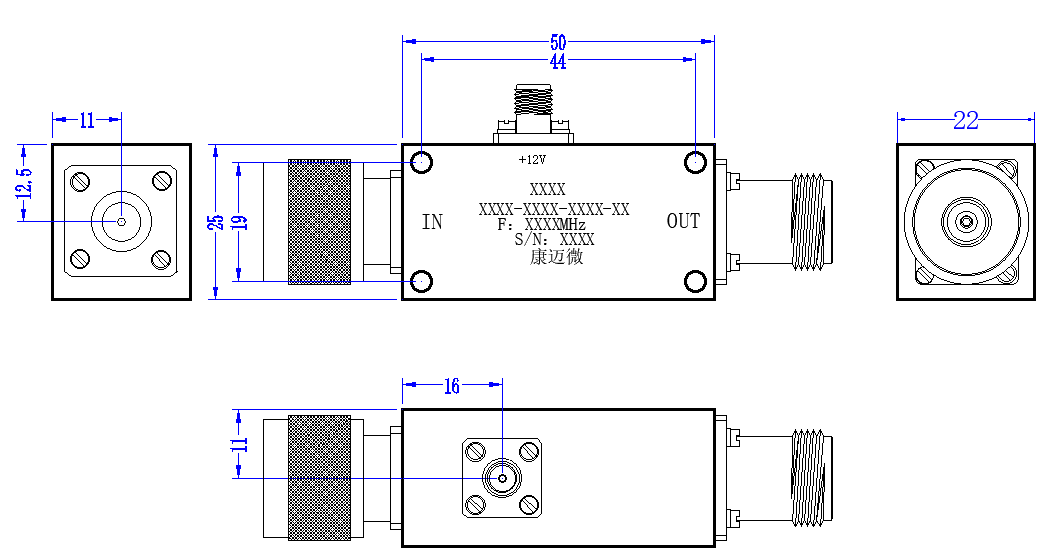

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
