LNA
26.5~40GHz, Gain35dB, Noise figure5.5dB, P-1dB15dBm, 2.92
- DLNA8-26500-40000-1261
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 26.5 | ~ | 40 | GHz |
| Gain | 35 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 5.5 | dB | ||
| VSWR | 2.6 | |||
| P-1dB | 15 | dBm | ||
| Max input power | 15 | dBm |
Other parameters
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +220V&12V |
| Work Temp. | -20~+60℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 1. The battery powered working time is approximately 6-10 hours, depending on the battery capacity and amplifier power consumption. 2. The DC power supply voltage is determined by the amplifier. 3. The switch can only control 220V and the battery box, and there is no switch for DC power supply. 4. Battery replacement requires removing the battery cover screws. |
Power supply method
| Power supply method 1 | 220V power supply, standard AC interface, 12-15V/5W output |
| Power supply method 2 | 10 units, powered by No. 5 battery, with a 12-15V output. |
| Power supply method 3 | DC power supply, interface 2.5mm (inner aperture) |

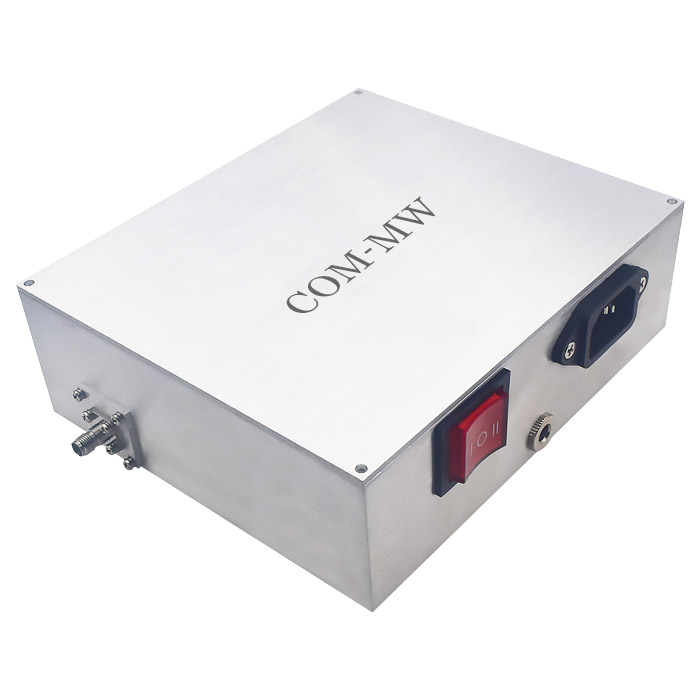

Reference picture

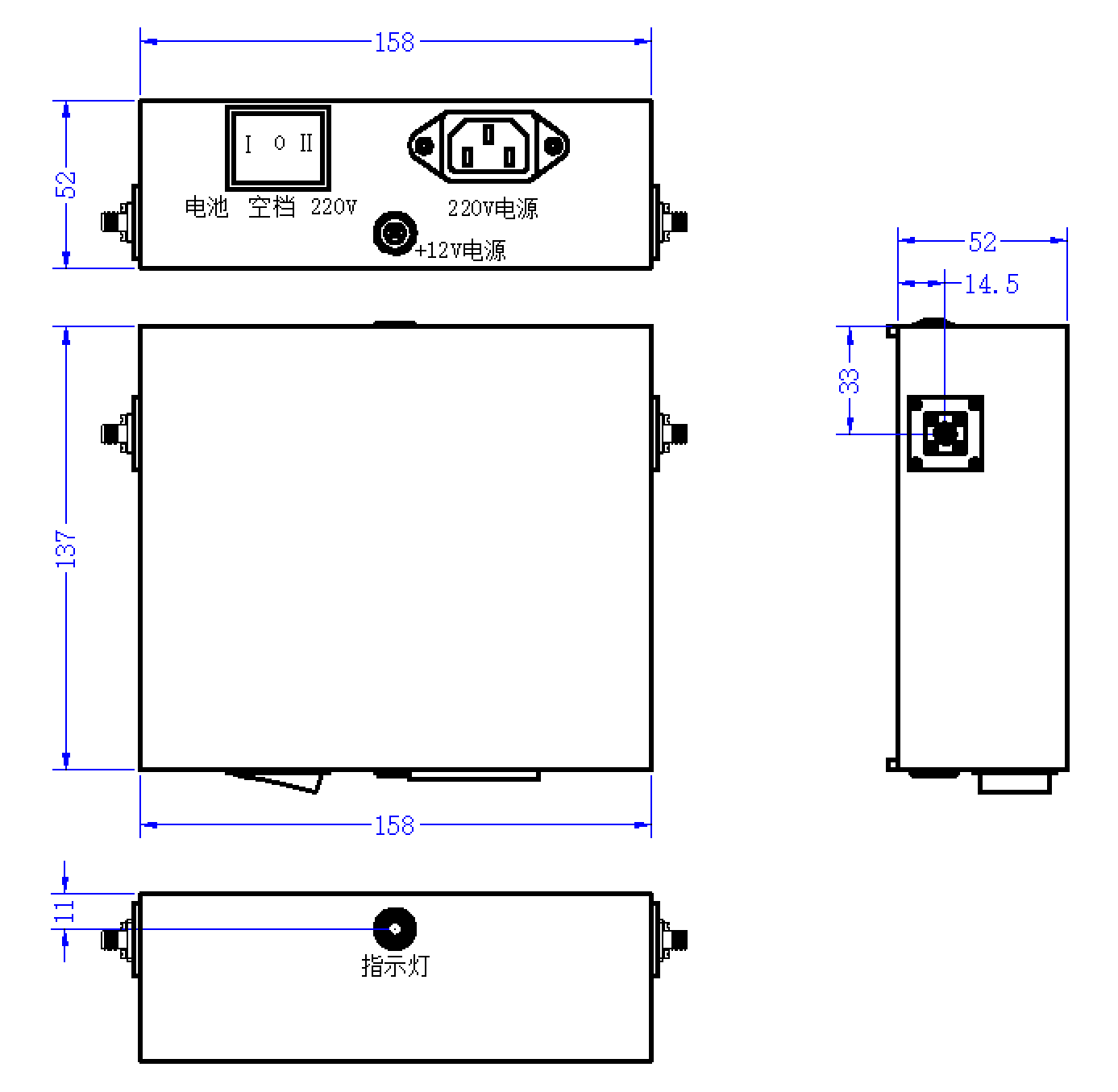

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
