LNA
1000~8000MHz, Gain25dB, Noise figure2.5dB, P-1dB power1dBm, SMA
- DLNA8-1000-8000-025
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1000 | ~ | 8000 | MHz |
| Gain | 25 | dB | ||
| Gain flatness | 3 | dB | ||
| Noise figure | 2.5 | 3 | dB | |
| VSWR | 2.5 | |||
| P-1dB power | 1 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Reverse isolation | 50dB |
| Work Temp. | -30~+70℃ Design assurance |
Typical test data
| F(GHz) | P-1(dBm) | NF(dB） | S11VSWR | S22VSWR | Gain(dB) |
| 0.5 | 8.6 | 3.78 | 1.98 | 1.92 | 35.14 |
| 1 | 2.66 | 2.83 | 1.44 | 1.87 | 35.5 |
| 2 | 2.47 | 2.6 | 1.48 | 2.01 | 35.35 |
| 3 | 1.9 | 2.63 | 1.53 | 1.2 | 35.21 |
| 4 | 1.43 | 2.31 | 1.73 | 1.85 | 34.84 |
| 5 | 1.3 | 2.14 | 1.92 | 1.63 | 35.49 |
| 6 | 1.9 | 2.06 | 1.92 | 1.42 | 36.66 |
| 7 | 2.44 | 2.11 | 1.92 | 1.34 | 36.55 |
| 8 | 3.31 | 2.27 | 1.92 | 1.36 | 34.85 |
| 9 | 3.74 | 3.17 | 2.3 | 1.35 | 33.09 |
| 10 | 5.3 | 3.84 | 2.84 | 1.16 | 30.43 |

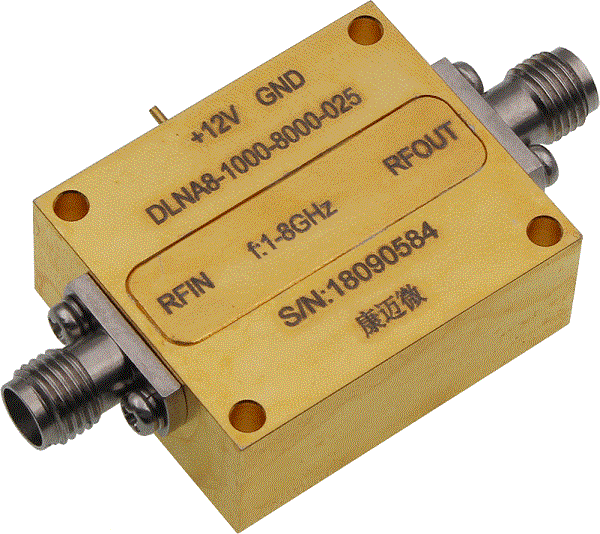

Reference picture
Configuration(mm)

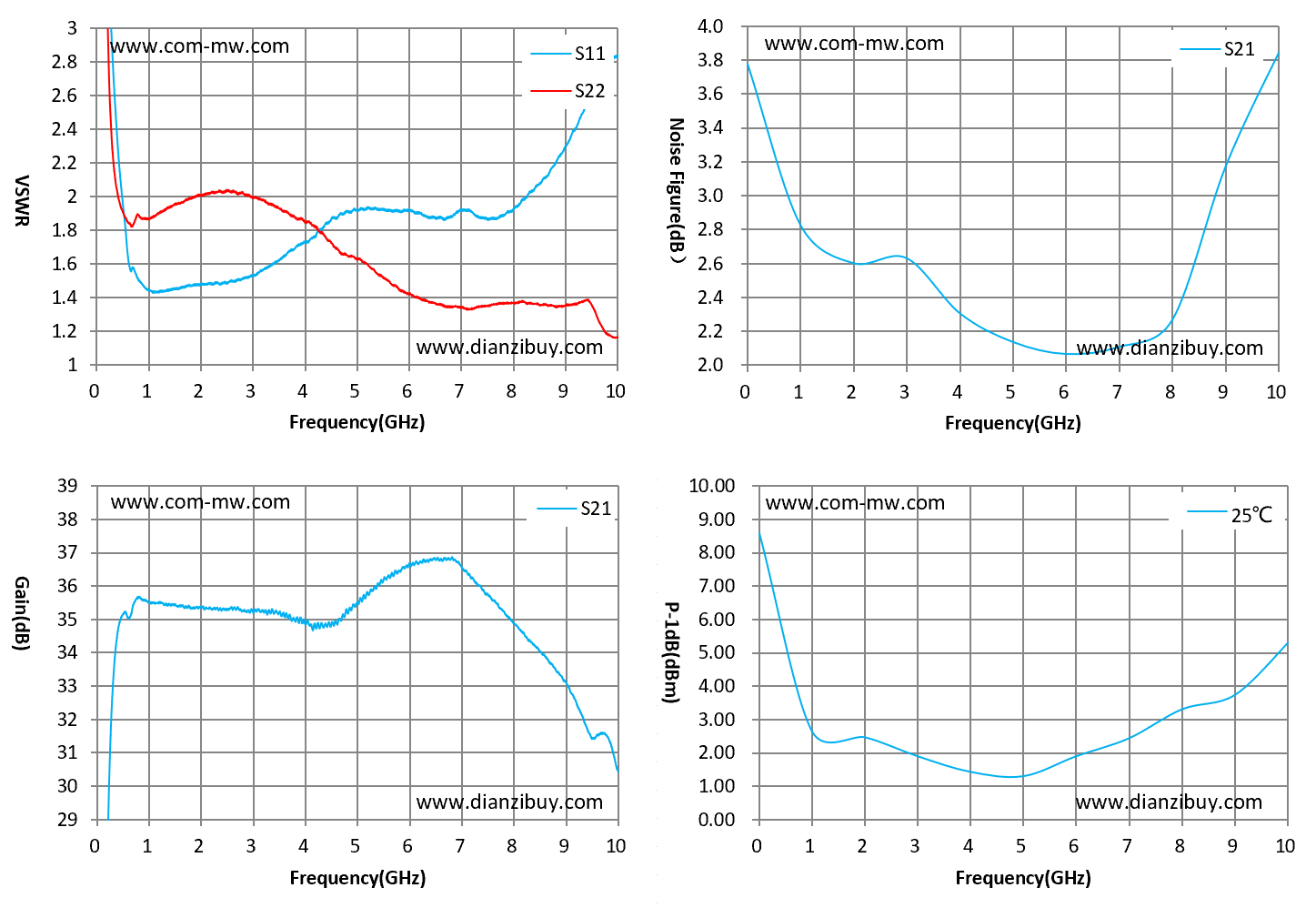

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
