LNA
30~8000MHz, Gain36dB, Noise figure3dB, P-1dB12dBm, SMA
- DLNA8-30-8000-014
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 8000 | MHz |
| Gain | 36 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| Noise figure | 3 | 3.5 | dB | |
| VSWR | 2.5 | |||
| P-1dB | 12 | dBm | ||
| IP3 | 27 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Reverse isolation | 65dB |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken. |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 Gain | S21 Noise | S21 P-1dB | S21 饱和功率dBm |
| 0.01 | 26.52 | 2.45 | 15.16 | 2.69 | 17.31 | 18.76 |
| 0.03 | 2.05 | 1.21 | 40.87 | 2.17 | 18.13 | 19.19 |
| 0.72 | 1.47 | 1.21 | 40.44 | 1.41 | 18.09 | 19.8 |
| 1.44 | 1.08 | 1.2 | 40.58 | 1.43 | 17.79 | 19.3 |
| 2.15 | 1.39 | 1.14 | 40.59 | 1.47 | 16.94 | 19.1 |
| 2.86 | 1.71 | 1.26 | 40.62 | 1.79 | 16.94 | 19.1 |
| 3.58 | 1.58 | 1.27 | 40.61 | 1.56 | 17.32 | 18.9 |
| 4.29 | 1.33 | 1.23 | 40.71 | 1.7 | 17.1 | 18.4 |
| 5.01 | 1.36 | 1.29 | 40.54 | 1.82 | 16.76 | 18.9 |
| 5.72 | 1.26 | 1.3 | 41.04 | 1.86 | 16.53 | 18.6 |
| 6.43 | 1.15 | 1.2 | 40.78 | 1.89 | 16.92 | 19.1 |
| 7.15 | 1.39 | 1.53 | 39.93 | 2.08 | 16.58 | 18.8 |
| 7.86 | 1.78 | 1.77 | 39.9 | 2.32 | 16.61 | 18.7 |
| 8.57 | 1.98 | 1.57 | 39.88 | 2.35 | 16.66 | 18.3 |
| 9.29 | 2.64 | 1.24 | 38.5 | 3 | 16.05 | 17.7 |
| 10 | 2.7 | 1.36 | 33.8 | 3.21 | 14.93 | 16.2 |
Reference picture
Configuration(mm)

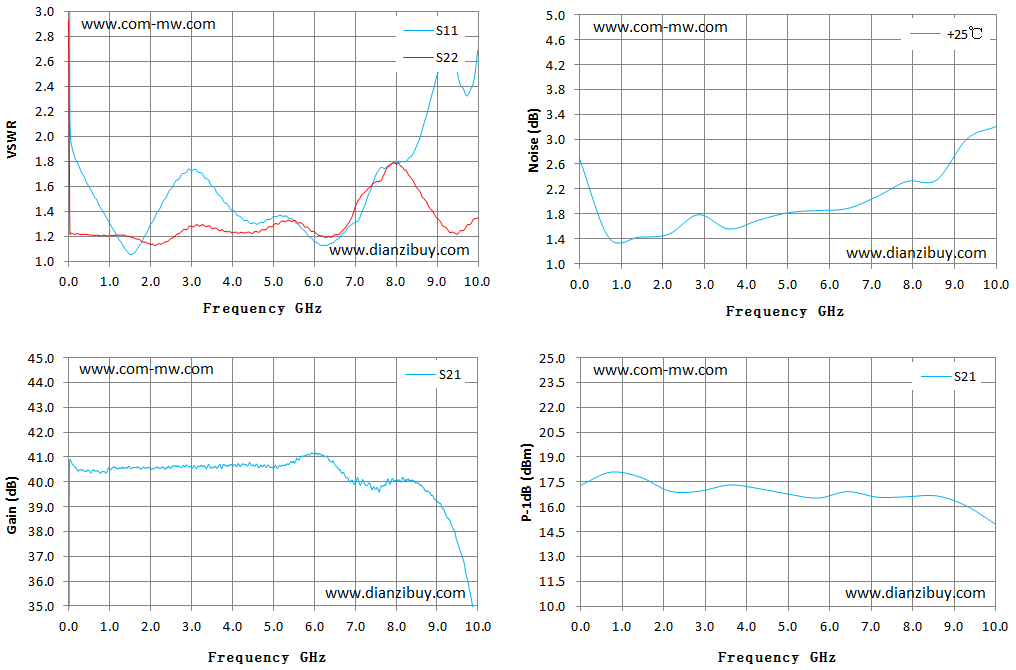

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
