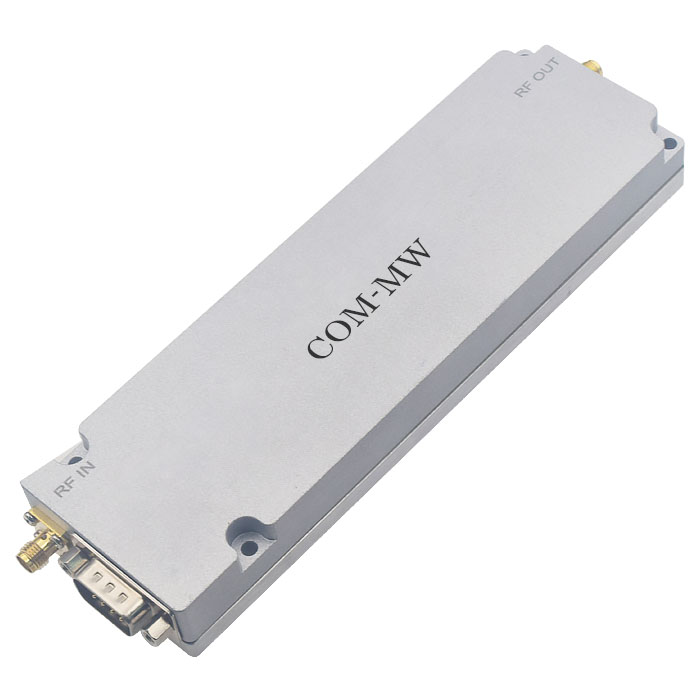

433~480MHz, Gain51dB, Psat45dBm, SMA
Suitable for fields such as drone interference and aging testing.
Parameters | Min | Typical | Max | Units |
Frequency | 433 | ~ | 480 | MHz |
Gain | 51 | dB | ||
Gain flatness | ±1 | dB | ||
Input VSWR | 1.4 | |||
Psat | 44 | 45 | 46 | dBm |
Max input power | 10 | dBm | ||
ALC control range | 10 | dB | ||
Gain Adjustment Range | 25 | dBc |
Connector | SMA-K |
Temperature protection | +85 ℃ over temperature alarm and shutdown, 65 ℃ open |
Transmission and control interface | CMOS3.3V |
Ripple | ≤2.5dB |
Impedance | 50Ω |
Working voltage | +28V |
Working current | 4500mA |
Operation Temp. | -40~+55℃ Design assurance |
Gain adjustment accuracy | Attenuation of 10dB: ≤ ± 1dB; Attenuation of 20dB: ≤ ± 1dB; Attenuation of 25dB: ≤ ± 1.5dB |
F (MHz) | Gain(dB) | Pout(SAT) | Ids(A) | IdQ(mA) |
420 | 48.93 | 44.55 | 2.26 | 400 |
430 | 49.67 | 45.31 | 2.6 | 400 |
440 | 50.77 | 46.21 | 3.06 | 400 |
450 | 51.74 | 47.33 | 3.48 | 400 |
460 | 52.38 | 47.08 | 3.26 | 400 |
470 | 52.3 | 44.85 | 2.82 | 400 |
480 | 51.43 | 44.53 | 2.96 | 400 |

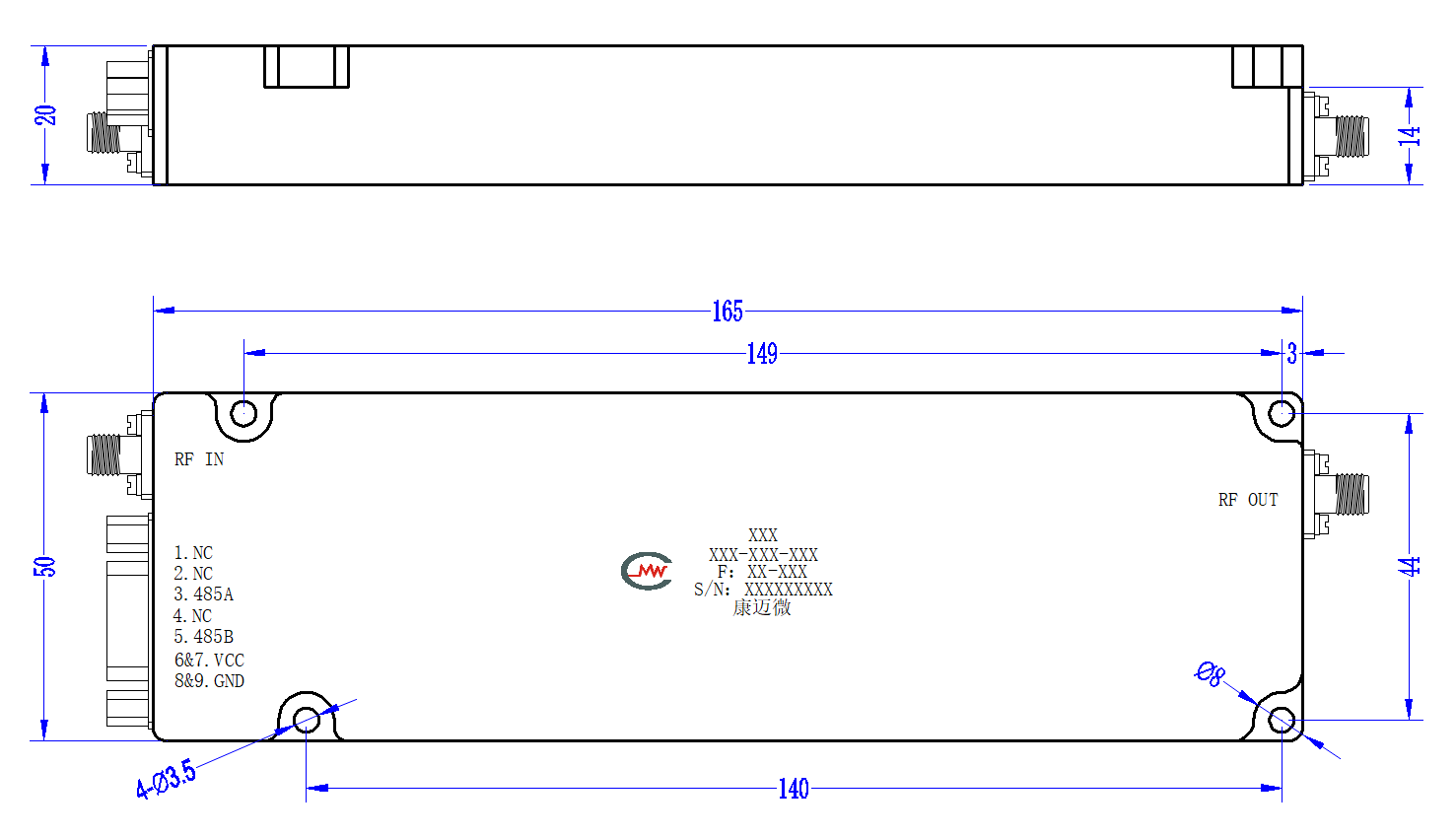

RS485 interface
1) Settings: switch, gain;
2) Query: Module status (including amplifier status, over power alarm, over temperature alarm), amplifier temperature, amplifier ATT value, detected forward power;
3) Overpower alarm: If the power exceeds the maximum output power by+2dB, an alarm will be triggered;
4) Over temperature alarm: It is recommended to set the threshold to+85 ℃. If the temperature exceeds+85 ℃, an alarm should be triggered and the power amplifier should be turned off. When+65 ℃ is reached, the power amplifier should be turned on;
5) Temperature detection of power amplifier: The detection range is required to include but not limited to -25 ℃ to+85 ℃, and the detection accuracy is required to be ± 3 ℃;
6) Forward power detection: The detection range should be greater than 20dB, and the detection accuracy should be less than ± 1dB;
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
