LNA
800~2000MHz, Gain65dB, Noise temperature45K, SMA-KRemovable
- DLNA8-1660-1710-2057
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Low noise, high gain.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 800 | ~ | 2000 | MHz |
| Gain | 65 | dB | ||
| Noise temperature | 45 | K | ||
| VSWR | 2.5 | |||
| Gain stability | ±1 | dB | ||
| Input level | -110 | -55 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 300mA |
| Work Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 gain dB | S21 Noise dB | P-1dB |
| 400 | 6.66 | 2.89 | 60.31 | 1.39 | 12 |
| 550 | 1.9 | 1.42 | 68.02 | 0.32 | 17.27 |
| 700 | 1.12 | 1.28 | 69.48 | 0.3 | 18.97 |
| 850 | 1.17 | 1.3 | 69.71 | 0.4 | 19.21 |
| 1000 | 1.36 | 1.35 | 69.86 | 0.44 | 19.27 |
| 1150 | 1.46 | 1.4 | 69.96 | 0.4 | 19.13 |
| 1300 | 1.45 | 1.43 | 70.22 | 0.39 | 18.92 |
| 1450 | 1.32 | 1.35 | 70.42 | 0.38 | 18.88 |
| 1600 | 1.13 | 1.3 | 70.52 | 0.34 | 18.65 |
| 1750 | 1.05 | 1.26 | 70.4 | 0.37 | 18.49 |
| 1900 | 1.26 | 1.25 | 69.92 | 0.39 | 18.34 |
| 2050 | 1.48 | 1.27 | 69.21 | 0.4 | 18.39 |
| 2200 | 1.66 | 1.4 | 68.06 | 0.46 | 18.43 |
| 2350 | 1.77 | 1.61 | 66.91 | 0.53 | 18.44 |
| 2500 | 1.8 | 1.93 | 65.45 | 0.65 | 18.56 |
Reference picture
Configuration(mm)

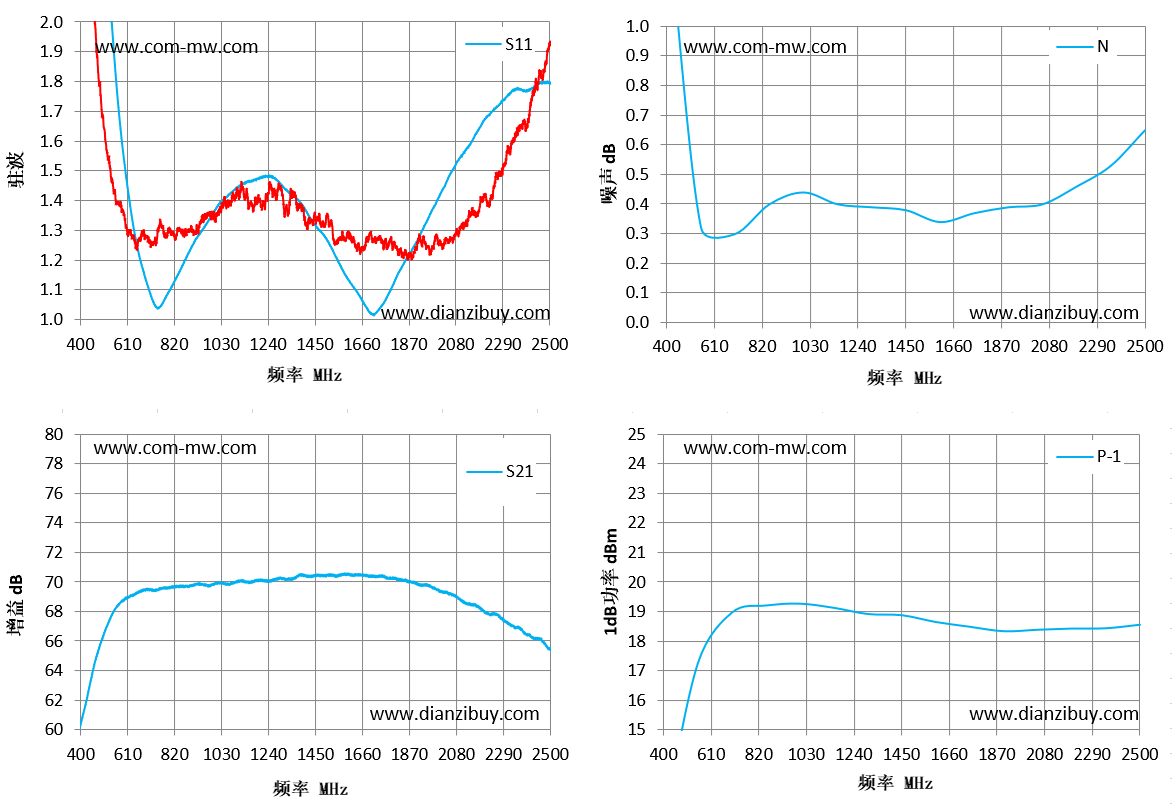

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
