LNA
1500~1600MHz, Gain35dB, Noise figure0.88dB, P-1dB15dBm, SMA
- DLNA8-1500-1600-1751
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Low noise, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1500 | ~ | 1600 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise figure | 0.88 | dB | ||
| VSWR | 1.5 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 150mA |
| Work Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | 25 ℃ noise | S21 gain | S21 P-1dB |
| 500 | 1.66 | 1.79 | 1.03 | 34.82 | 15.98 |
| 643 | 1.53 | 1.34 | 0.48 | 35.79 | 19.05 |
| 786 | 1.47 | 1.26 | 0.34 | 35.97 | 19.06 |
| 929 | 1.44 | 1.36 | 0.43 | 36.22 | 18.98 |
| 1071 | 1.38 | 1.46 | 0.55 | 36.22 | 18.85 |
| 1214 | 1.32 | 1.51 | 0.5 | 36.13 | 18.72 |
| 1357 | 1.32 | 1.52 | 0.59 | 36.22 | 18.58 |
| 1500 | 1.37 | 1.49 | 0.6 | 36.13 | 18.5 |
| 1643 | 1.45 | 1.42 | 0.59 | 36.11 | 18.41 |
| 1786 | 1.54 | 1.31 | 0.53 | 36 | 18.36 |
| 1929 | 1.62 | 1.18 | 0.46 | 35.69 | 18.35 |
| 2071 | 1.69 | 1.03 | 0.41 | 35.5 | 18.36 |
| 2214 | 1.75 | 1.14 | 0.39 | 35.07 | 18.3 |
| 2357 | 1.78 | 1.35 | 0.4 | 34.63 | 18.28 |
| 2500 | 1.79 | 1.63 | 0.51 | 34.02 | 18.3 |

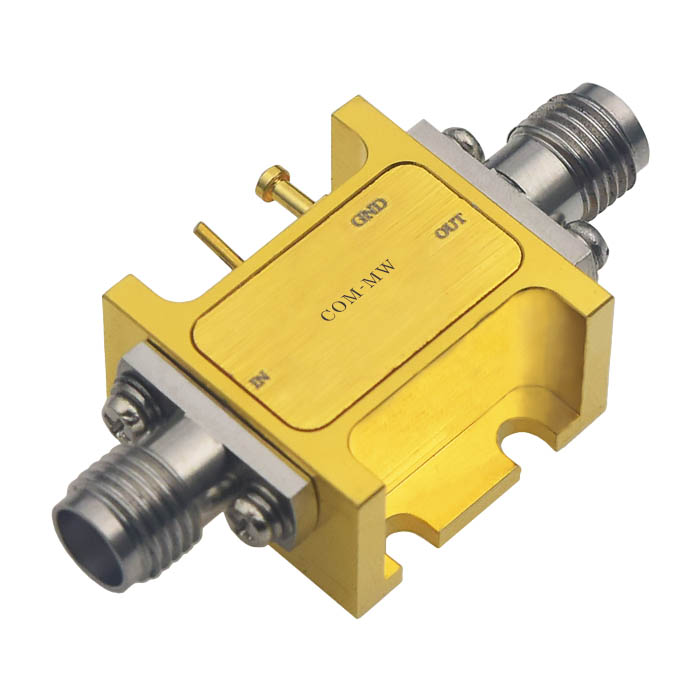

Reference picture

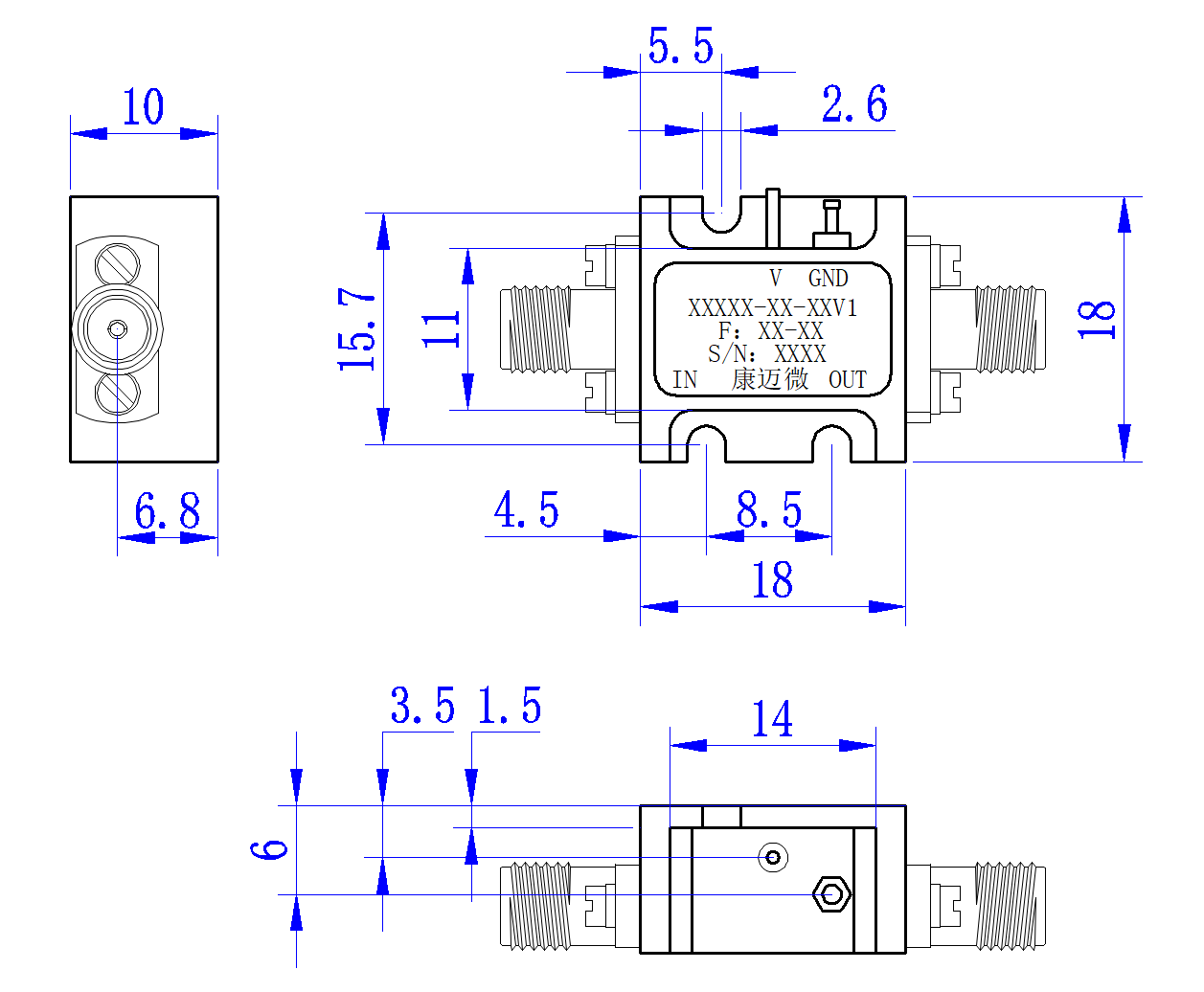

Configuration(mm)

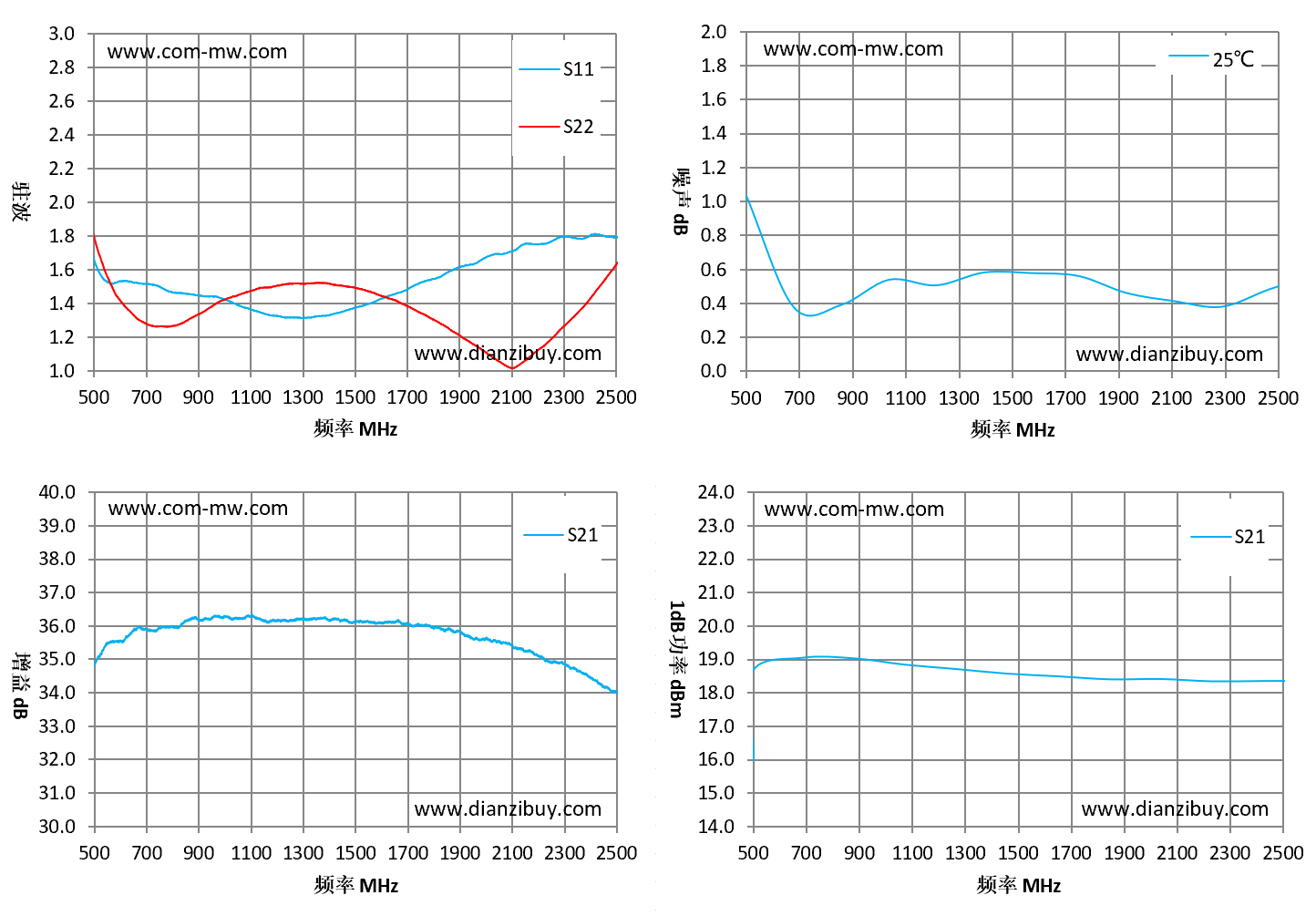

Typical test curve
