Power amplifier
3.1~3.5GHz, Gain43dB, Output Psat43dBm, SMA
- DPA8-3.1-3.5-3086
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 3.1 | ~ | 3.5 | GHz |
| Gain | 43 | dB | ||
| Gain flatness | ±1.5 | dB | ||
| VSWR | 2 | |||
| Output Psat | 43 | dBm |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +28V |
| Working current | 3500mA |
| Work Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |

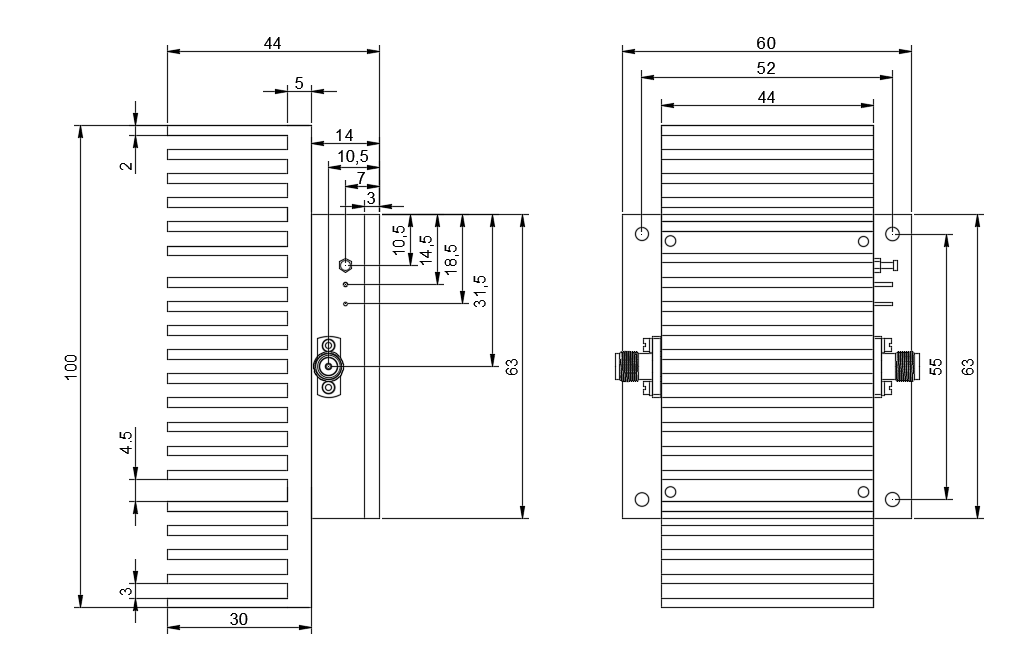

Reference picture
Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
