Power amplifier
22~40GHz, Gain35dB, P-1dB20dBm, 2.92
- DPA9-22000-40000-1177
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 22 | ~ | 40 | GHz |
| Gain | 35 | dB | ||
| Gain flatness | ±1.5 | ±2 | dB | |
| VSWR | 2.5 | |||
| P-1dB | 20 | dBm |
Environmental
| Connector | 2.92-K detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 350mA |
| Work Temp. | -30~+70℃ Design assurance |
| Other | 1. The amplifier is installed on the radiator or casing; 2. Maximum input undamaged power: 10dBm. |
Typical test data
| Frequency (G) | S11 VSWR | S21 Gain | S22 VSWR | S21 P-1dB |
| 20 | 1.35 | 35.23 | 3.24 | 22.3 |
| 22 | 1.12 | 36.17 | 2.08 | 24.1 |
| 23 | 1.17 | 36.88 | 1.69 | 23 |
| 25 | 1.42 | 37.21 | 1.36 | 22.8 |
| 26 | 1.59 | 36.9 | 1.59 | 23.9 |
| 28 | 1.93 | 37.31 | 1.98 | 22.5 |
| 29 | 1.99 | 37.06 | 2.02 | 22.6 |
| 31 | 1.79 | 36.86 | 1.51 | 21 |
| 33 | 1.61 | 36.98 | 1.27 | 21.1 |
| 34 | 1.31 | 37.27 | 1.4 | 21.4 |
| 36 | 1.37 | 37.78 | 1.65 | 20.4 |
| 37 | 1.81 | 36.69 | 1.66 | 20.7 |
| 39 | 2.23 | 35.36 | 1.27 | 20.2 |
| 40 | 2.45 | 36.63 | 1.37 | 20.1 |
| 42 | 2.67 | 40.22 | 2.61 | 18.3 |
Reference picture
Configuration

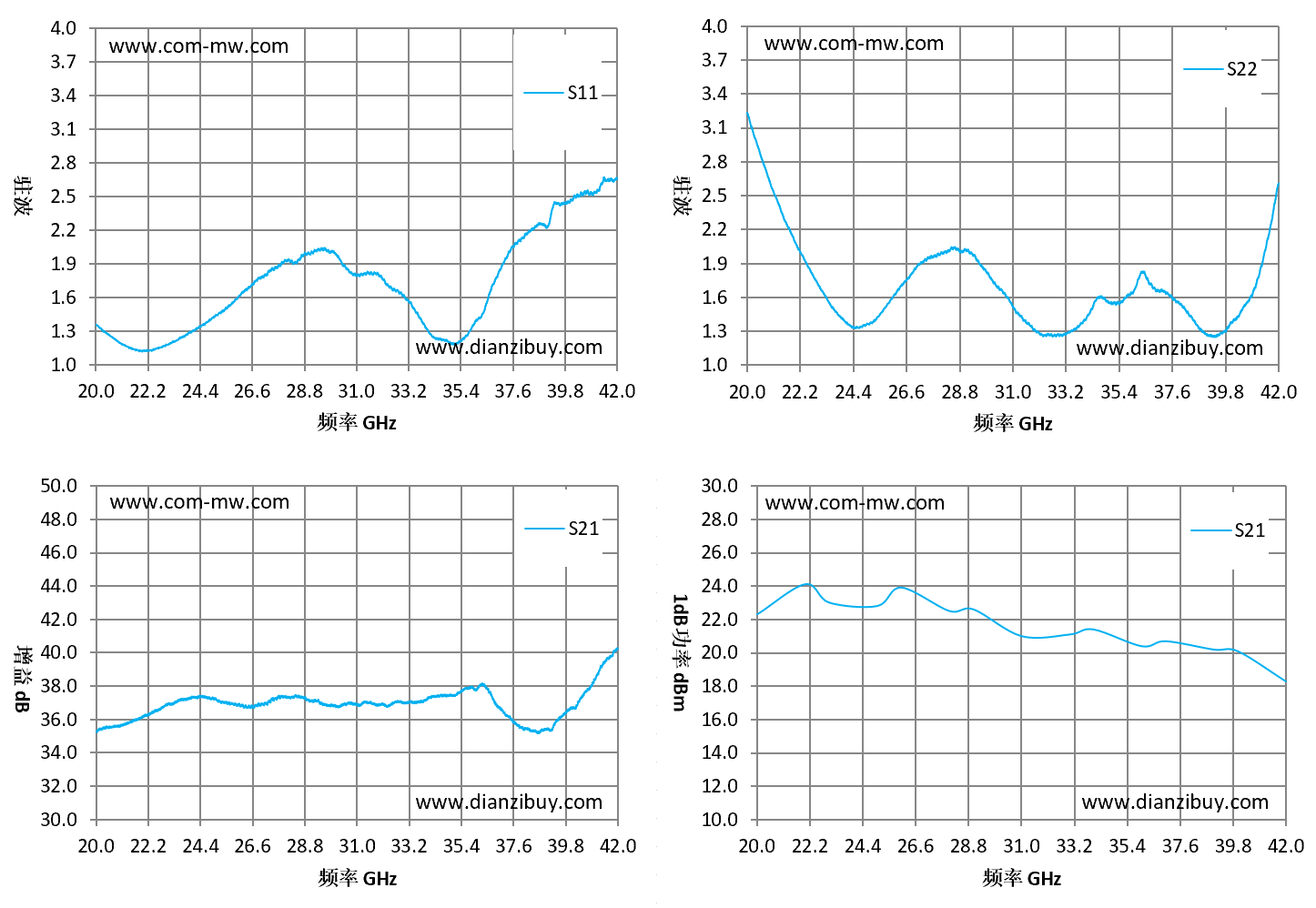

Typical test curve
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
