LNA
1~6GHz, Gain45dB, Noise figure1.5dB, P-1dB15dBm, SMA
- DLNA7-1-6G-993
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 6 | GHz |
| Gain | 45 | dB | ||
| Gain flatness | 4 | dB | ||
| Noise figure | 1.5 | 3 | dB | |
| VSWR | 2.5 | |||
| P-1dB | 15 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 gain | S12 Noise | P-1dB |
| 700 | 2.74 | 1.33 | 46.24 | 0.38 | 15.6 |
| 1150 | 2.03 | 1.34 | 48.48 | 0.92 | 18.84 |
| 1600 | 1.87 | 1.19 | 48.54 | 1.05 | 18.96 |
| 2050 | 1.78 | 1.21 | 48.46 | 0.79 | 19.22 |
| 2500 | 1.74 | 1.34 | 48.29 | 0.76 | 19.41 |
| 2950 | 1.76 | 1.5 | 48.38 | 0.92 | 19.17 |
| 3400 | 1.78 | 1.67 | 48.59 | 0.93 | 19.26 |
| 3850 | 1.89 | 1.76 | 48.67 | 0.72 | 19.06 |
| 4300 | 2 | 1.74 | 48.7 | 0.85 | 18.9 |
| 4750 | 2.1 | 1.64 | 48.47 | 1.11 | 19.03 |
| 5200 | 2.12 | 1.46 | 48.47 | 0.97 | 19.18 |
| 5650 | 1.96 | 1.33 | 48.27 | 0.84 | 19.27 |
| 6100 | 1.84 | 1.52 | 47.57 | 0.9 | 19.19 |
| 6550 | 1.94 | 1.84 | 46.85 | 1.11 | 18.72 |
| 7000 | 2.22 | 2.01 | 46.97 | 1.06 | 18.39 |
Reference picture
Configuration(mm)

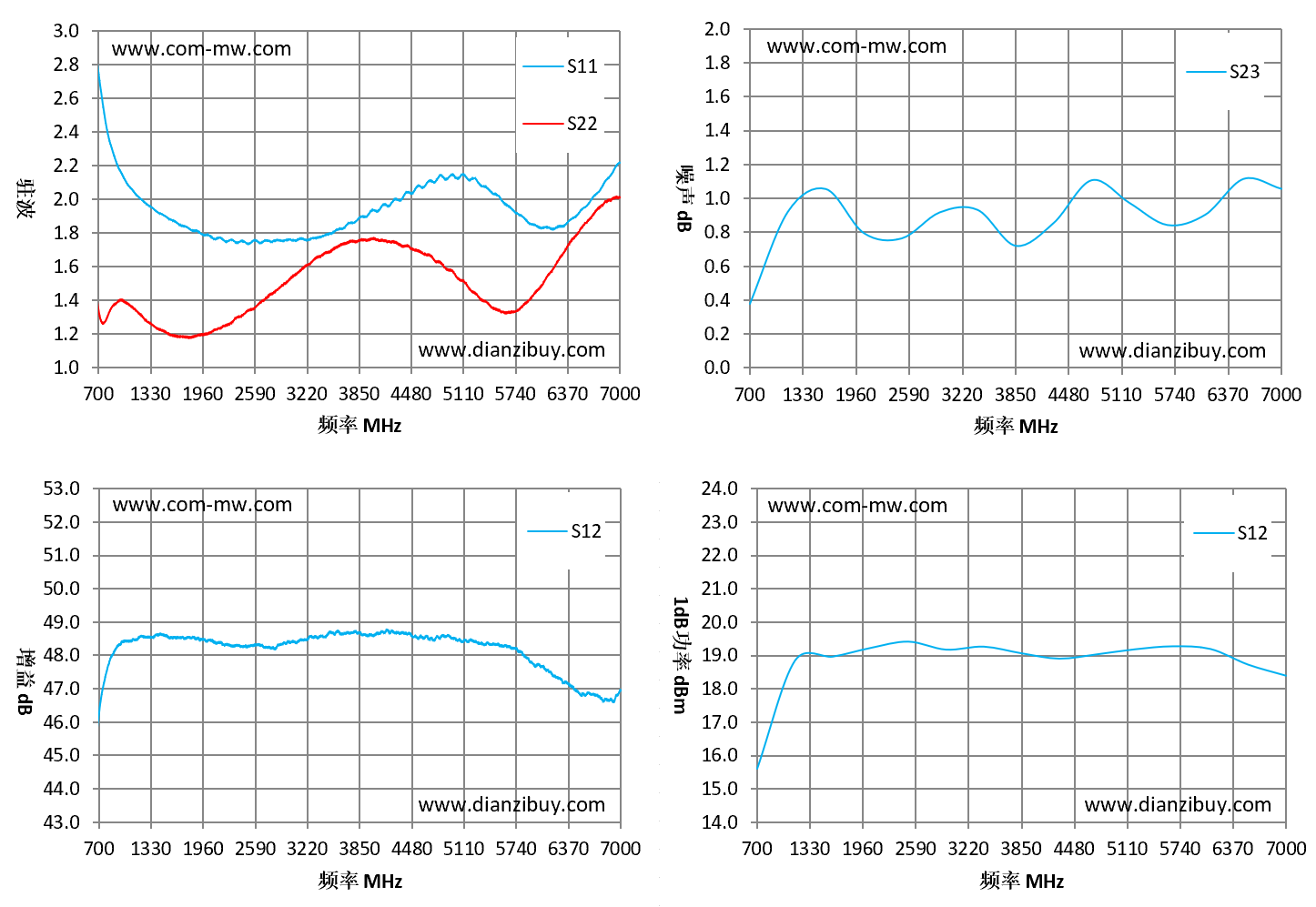

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
