Power amplifier
19~21GHz, Gain30dB, Psat31dBm, 2.92
- DPA8-19-21G-3492
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 19 | ~ | 21 | GHz |
| Gain | 30 | dB | ||
| Gain flatness | ±2 | dB | ||
| Input VSWR | 2 | |||
| Noise figure | 5 | |||
| P-1dB | 30 | dBm | ||
| Psat | 31 | dBm | ||
| Max input power | 10 | dBm |
Other parameters
| Connector | 2.92-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +18V |
| Working current | 1500mA |
| Operation Temp. | -40~+70℃ Design assurance |

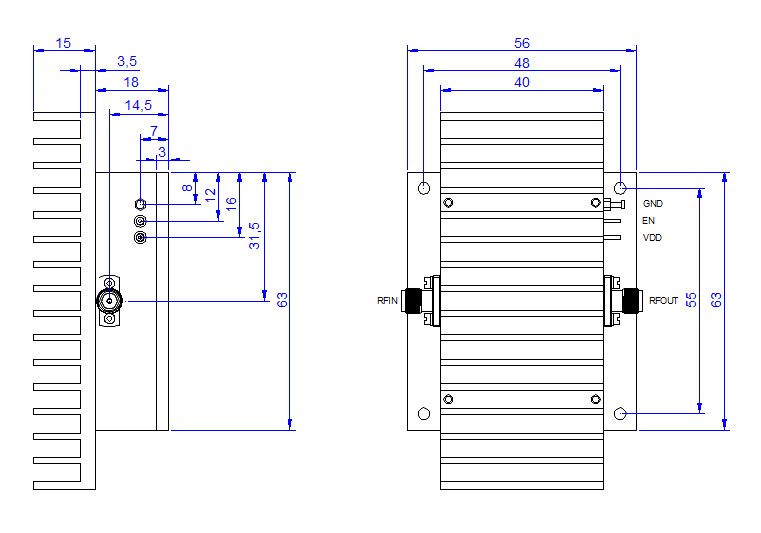

Reference picture
Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
