LNA
18~40GHz, Gain48dB, Noise figure3.5dB, P-1dB10dBm, 2.4
- DLNA8-18-40G-1324
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Broadband, high gain.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| Gain | 48 | dB | ||
| Gain flatness | ±2 | ±3 | dB | |
| Noise figure | 3.5 | 4 | dB | |
| VSWR | 2 | 2.5 | ||
| P-1dB | 10 | dBm |
Other parameters
| Connector | 2.4-JK |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V power supply interface: SSMA-K |
| Working current | 500mA |
| Work Temp. | -40~+85℃ Design assurance |
| Other | In port 2.4-J |
Typical test data
| Frequency (G) | S11 VSWR | S22 VSWR | S21 Gain | S21 P-1dB | +25 ℃ noise dB |
| 17 | 1.14 | 2.06 | 49.34 | 18.9 | 2.91 |
| 19 | 1.12 | 1.61 | 49.48 | 20.4 | 3.15 |
| 20 | 1.13 | 1.36 | 49.99 | 18.8 | 2.98 |
| 22 | 1.35 | 1.11 | 50.2 | 21.3 | 3.02 |
| 24 | 1.52 | 1.17 | 49.82 | 21.6 | 3.22 |
| 26 | 1.27 | 1.31 | 48.93 | 18.9 | 3.26 |
| 27 | 1.46 | 1.16 | 48.6 | 20.7 | 3.22 |
| 29 | 1.27 | 1.22 | 48.65 | 18.2 | 3.26 |
| 31 | 1.38 | 1.34 | 48.82 | 20 | 3.39 |
| 32 | 1.54 | 1.57 | 48.94 | 17.9 | 3.44 |
| 34 | 1.4 | 2.13 | 48.53 | 17.2 | 3.29 |
| 36 | 1.2 | 1.5 | 49.68 | 16.2 | 3.43 |
| 38 | 1.19 | 1.54 | 50.21 | 16 | 3.15 |
| 39 | 1.8 | 1.4 | 50.17 | 16.4 | 2.95 |
| 41 | 1.84 | 1.18 | 50.02 | 16.3 | 3.07 |

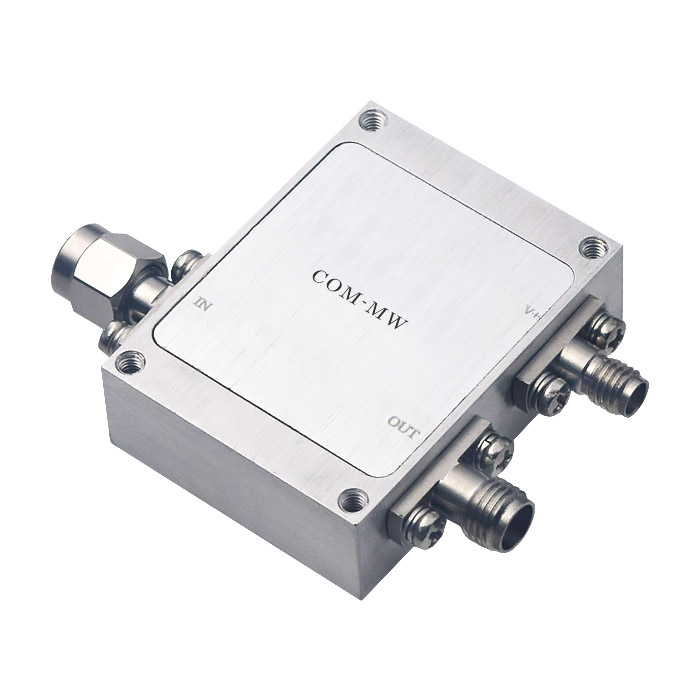

Reference picture

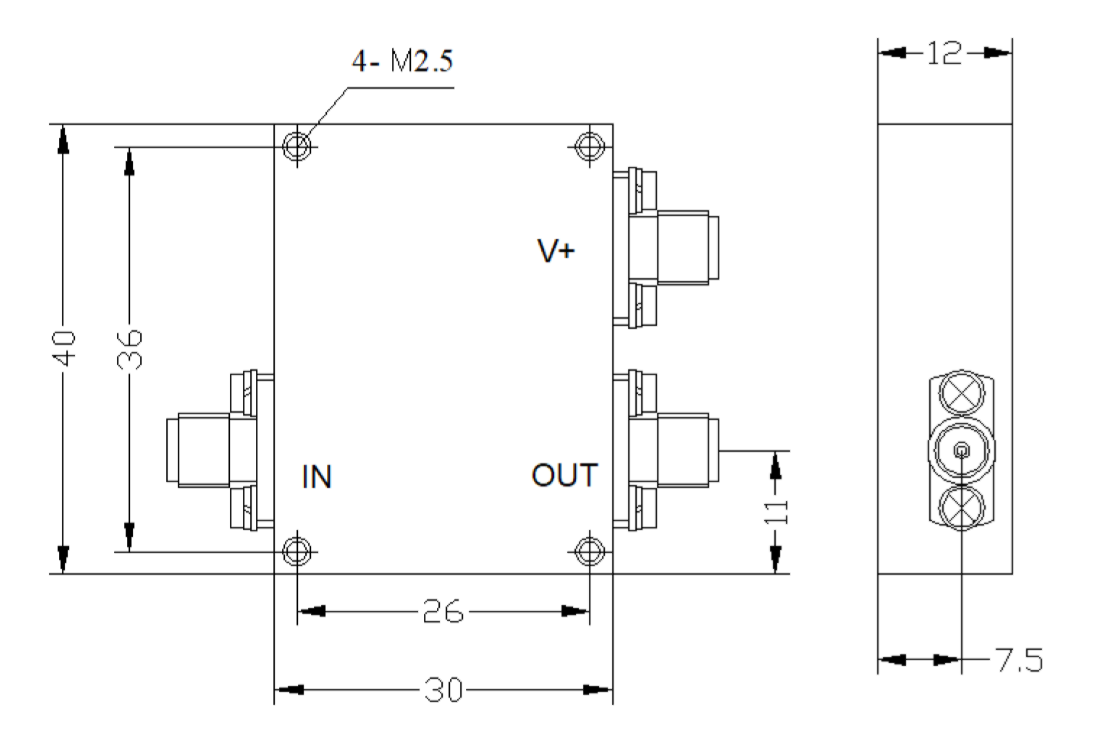

Configuration(mm)

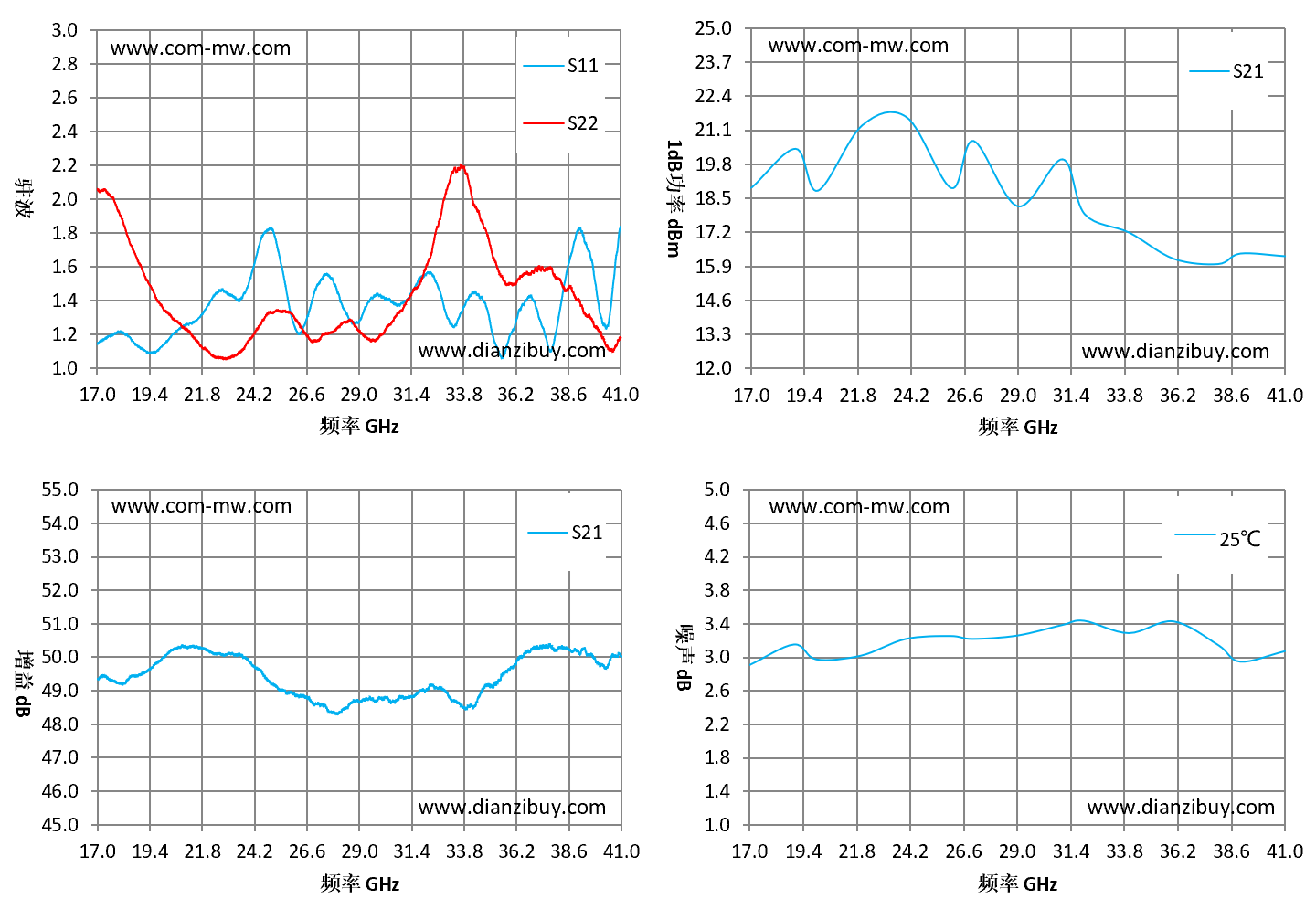

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
