Power amplifier
4~4.4GHz, Gain48dB, Psat120W, SMA
- DPA9-4-4.4G-2020
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 4 | ~ | 4.4 | GHz |
| Gain | 48 | dB | ||
| Gain flatness | ±1 | dB | ||
| Harmonic Rejection | 20@P0:51dBm | dBc | ||
| Spur reduction | 65 | dBc | ||
| VSWR | 1.8 | |||
| Psat | 120 | W |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +28V |
| Working current | 12000mA |
| Work Temp. | -30~+65℃ Design assurance |
| Storage Temp. | -40~+70℃ Design assurance |
| 电源及控制接口 | J30J-9ZKP |
| Other | 传导撒热+风冷 |

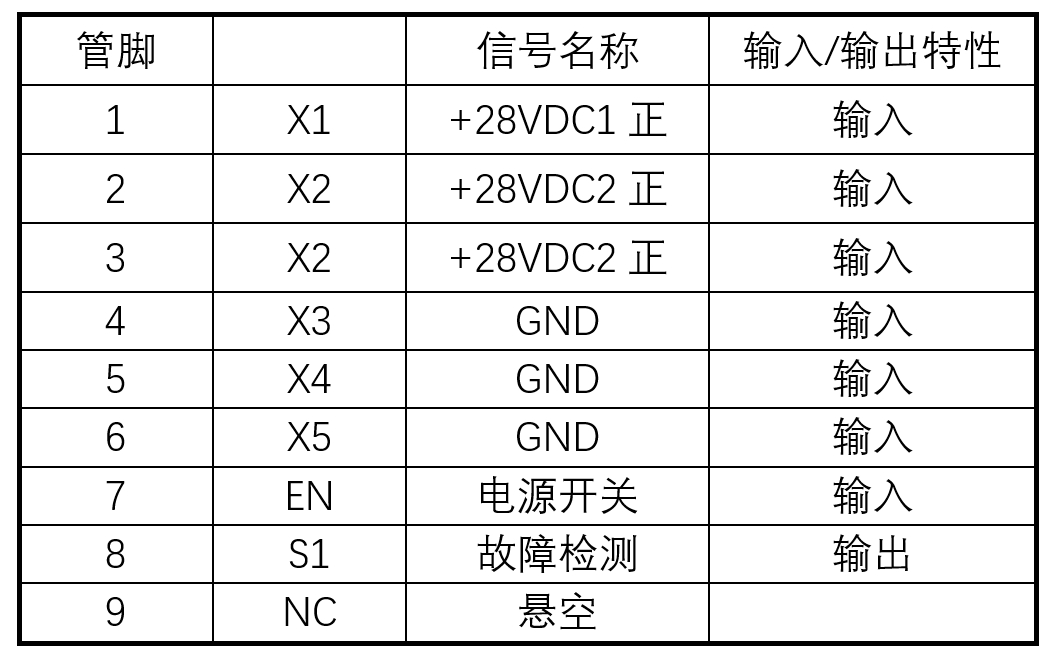

电源及控制接口

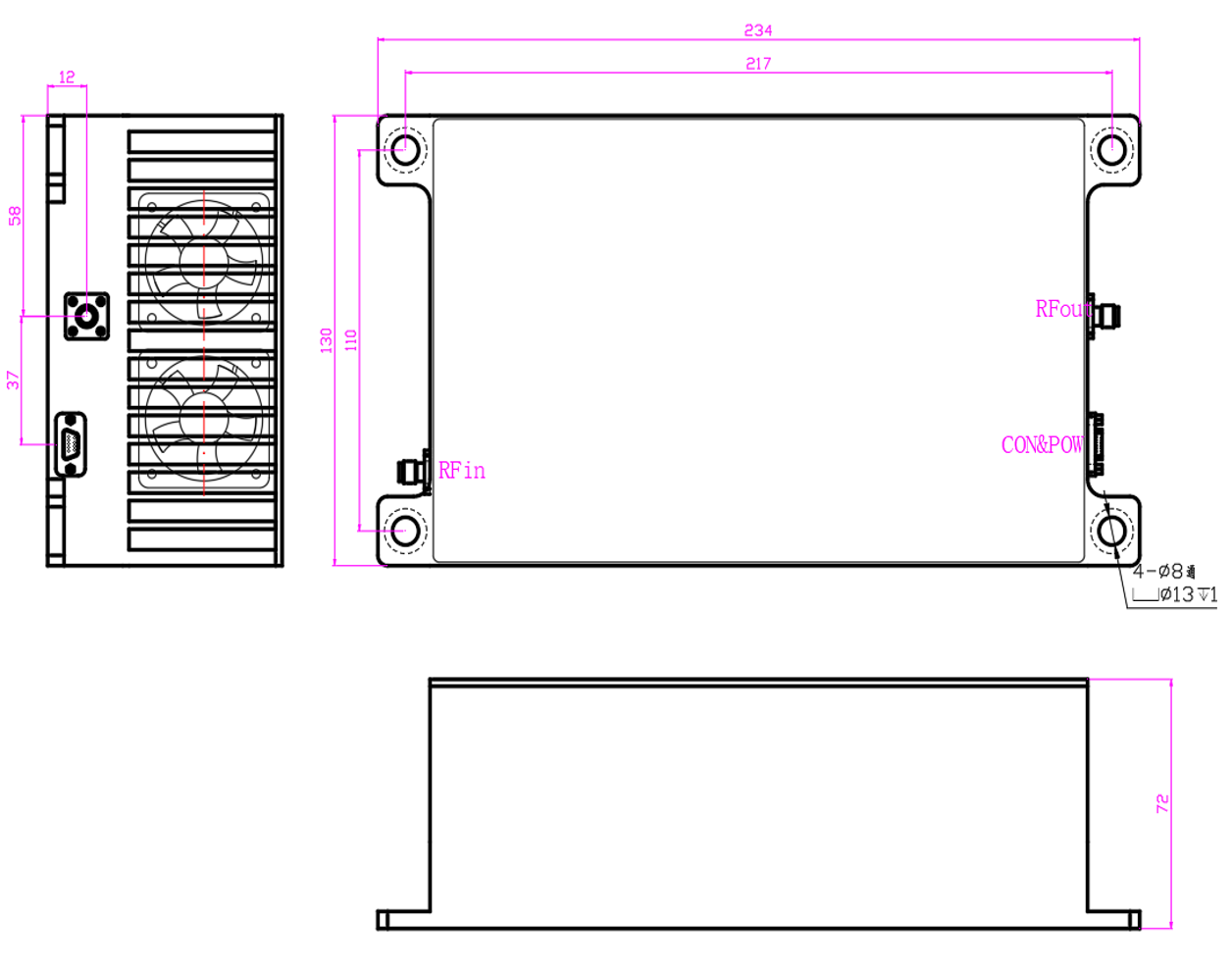

Configuration

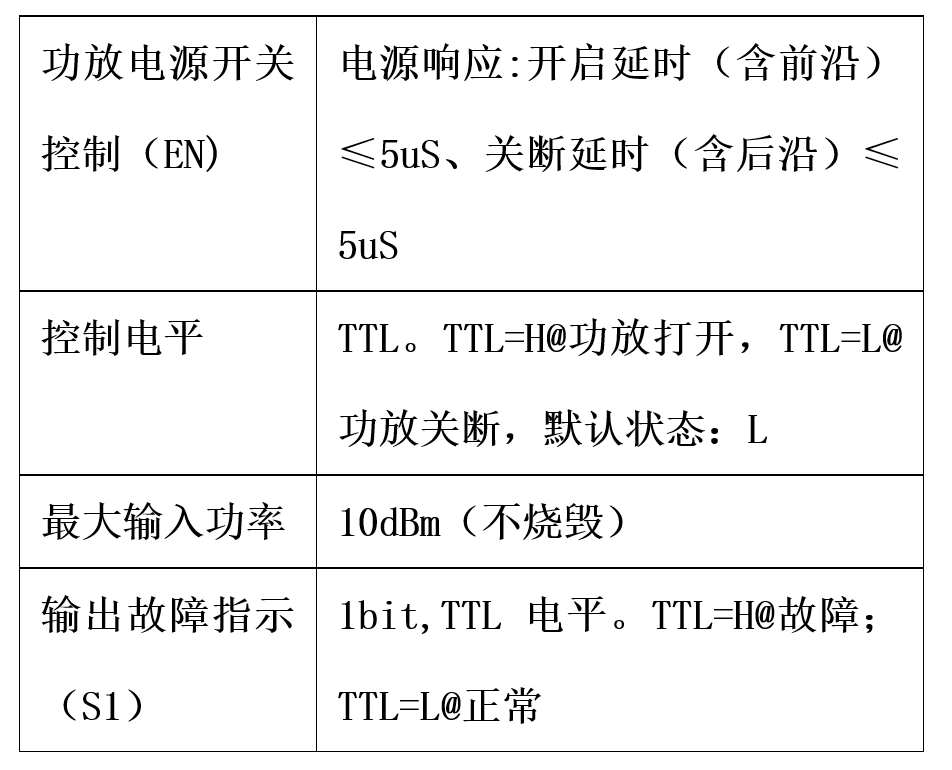

Other parameters
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
