LNA
1800~2200MHz, Gain60dB, Noise figure0.7dB, P-1dB10dBm, SMA
- DLNA8-1800-2200-006
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
Low noise, high gain, 220V power supply.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1800 | ~ | 2200 | MHz |
| Gain | 60 | 65 | dB | |
| Gain flatness | ±0.5 | dB | ||
| Noise figure | 0.7 | dB | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +220V |
| Working current | 50mA |
| Work Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |

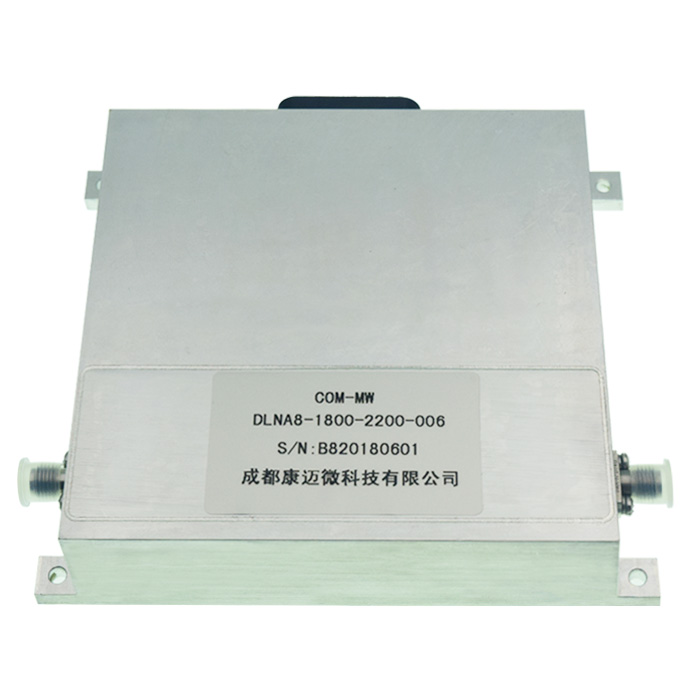

Reference picture

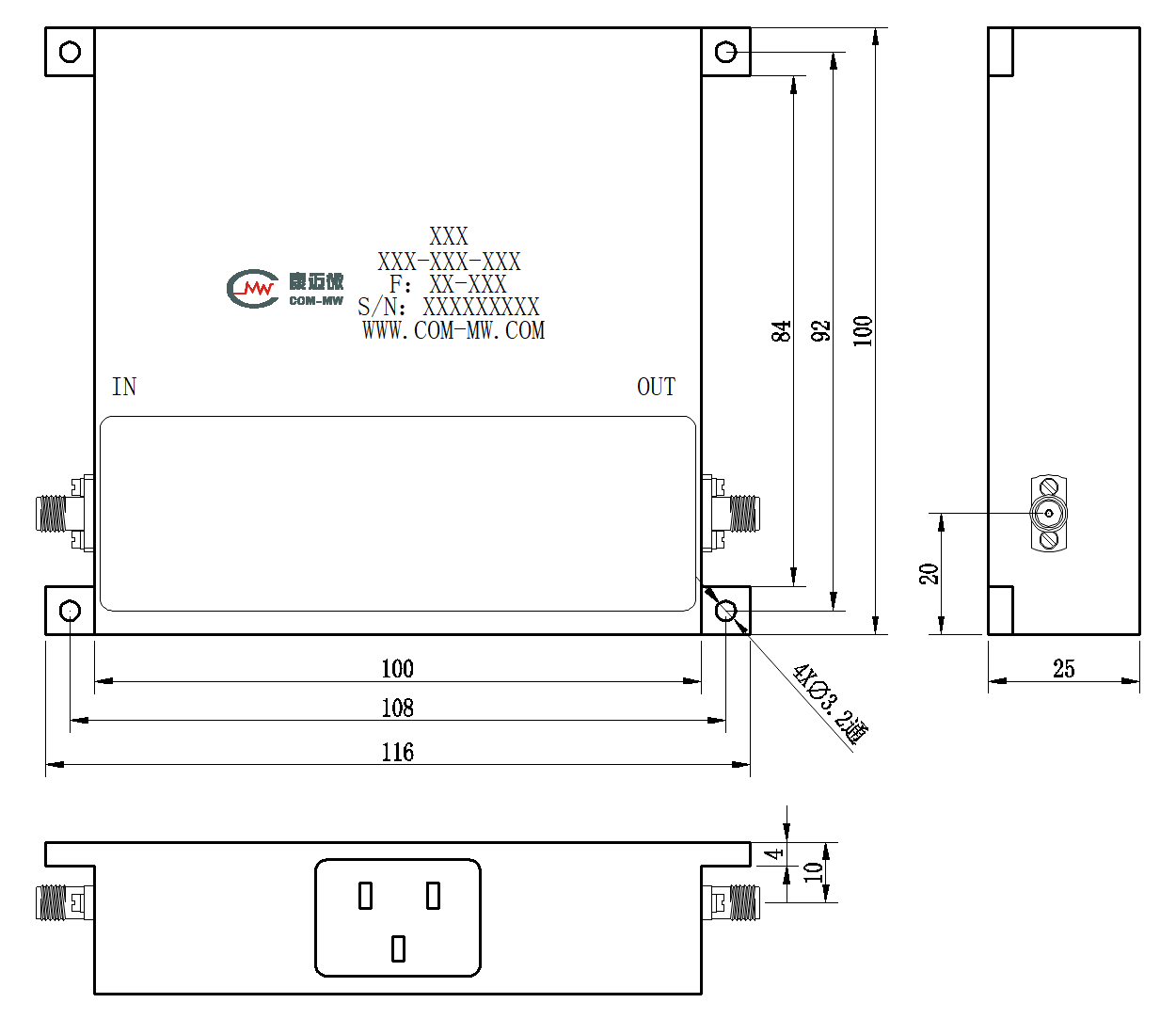

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.
